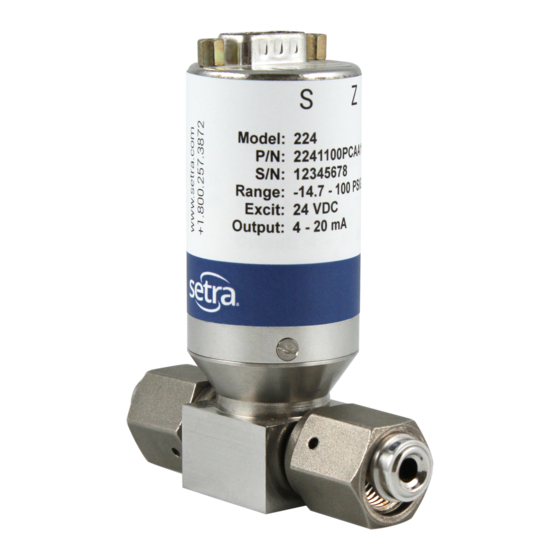

Ultra-high purity flow-through pressure transducer

Advertisement

Quick Links

Installation Guide
Model 224
Ultra-High Purity Flow-Through
Pressure Transducer

ISO
1-800-257-3872 Toll Free
9001:
1-978-264-0292 Fax
2000
www.setra.com Web Site
Certified

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 224 and is the answer not in the manual?

Questions and answers

Summary of Contents for Setra Systems 224

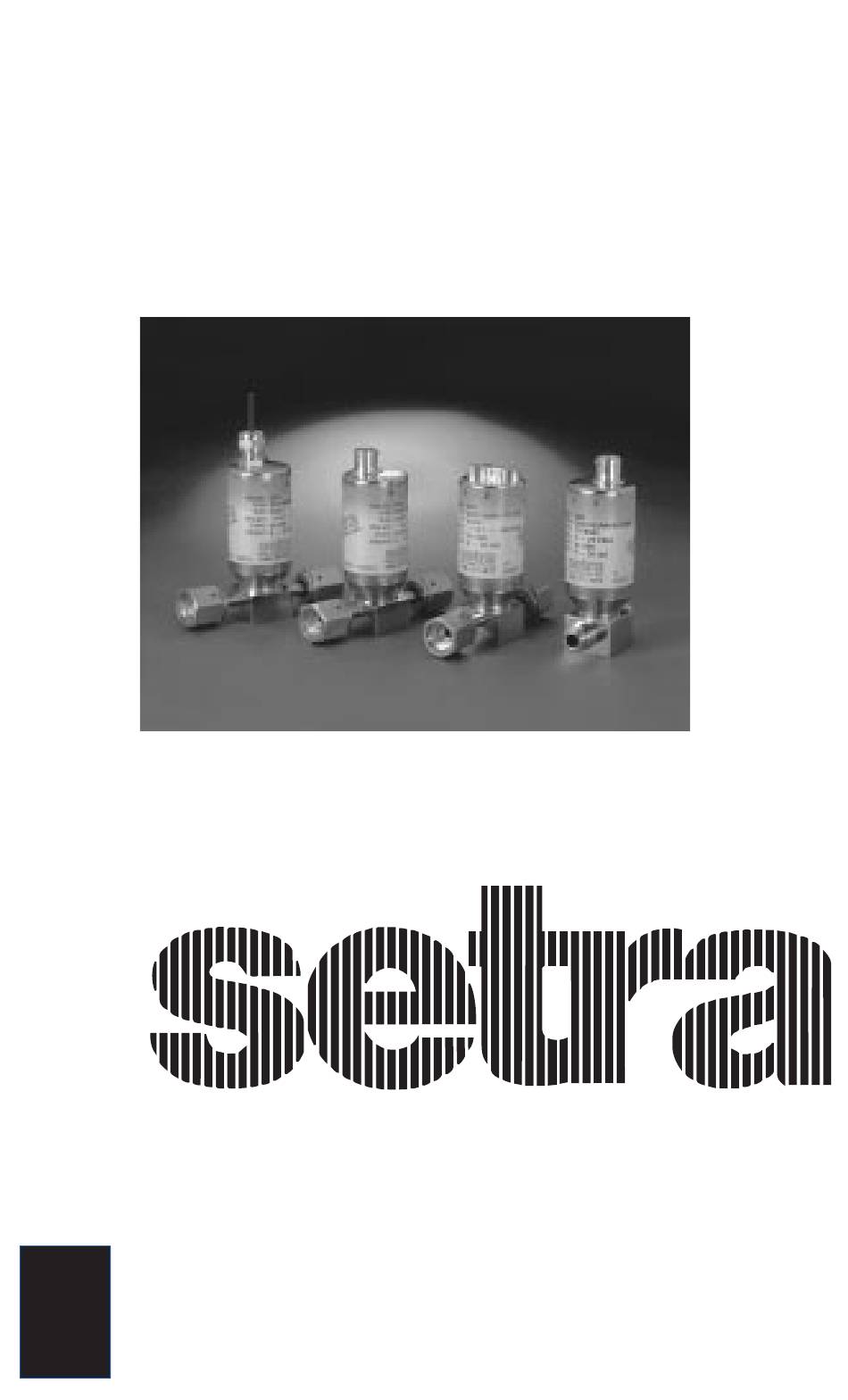

  • Page 1 Installation Guide Model 224 Ultra-High Purity Flow-Through Pressure Transducer 1-800-257-3872 Toll Free 9001: 1-978-264-0292 Fax 2000 www.setra.com Web Site Certified...
  • Page 2: General Information

    2 KV from the housing to earth ground, without damaging the circuit. 2.0 MECHANICAL INSTALLATION 2.1 Media Compatibility Model 224 transducers are designed to be used with any gas or liquid compat- ible with 316L Stainless Steel. Never submerge the transducers in any liquid. 2.2 Environment The operating temperature limits of the 224 are as follows: Operating Temperature Range°F (°C)
  • Page 3: Electrical Installation

    13-30 VDC FOR 0.2 TO 10.2 VDC and 0 to 10 VDC Diagram 1 Note: Model 224 can be wired as a 3-wire device by connecting – OUTPUT and –EXCITATION and drain wire to a common ground. However, accuracy may be reduced due to increase in resistance. 3.2 Current Output Units w/N1 option, see Notes 2 and 3, Page 4.)
  • Page 4 30 VDC between the input terminals. Note 3: ATEX 94/9/EC Approved: Special hazardous area instructions for 224 transducers (with the N1 suffix) with ATEX approval: The 224 transducer (with the N1 suffix) is designed for use in hazardous areas indoor applications with ATEX rating: Non- incendive II 3G Eex nL IIC T4 X -30°C<Ta<+80°C.
  • Page 5 0.343 0.143 0.486 0.286 -14.7 to 1000 0.272 0.072 0.345 0.145 -14.7 to 3000 0.224 0.024 0.249 0.049 5 VDC Full Scale Outputs 10 VDC Full Scale Outputs Compound 0.2 to 5.2 0 to 5 VDC 0.2 to 10.2 0 to 10 VDC...
  • Page 6 Span or full scale output adjustments should only be performed by using an accurate pressure standard (electronic manometer, digital pressure gauge, etc.), with at least comparable accuracy to the 224 transducer (±0.25% FS). With full range pressure applied to the pressure port, the span may be adjusted by turning the span potentiometer screw.
  • Page 7: Returning Products For Repair

    When returning a product to Setra, the material should be carefully packaged, accompanied by the “Service/Repair/Calibra- tion Order Return” form” on page 8 and shipped to : Setra Systems, Inc. 159 Swanson Road Boxborough, MA 01719-1304 Attn: Repair Department Note: Return order form is also available on Setra’s web site @ www.setra.com.
  • Page 8 SERVICE/REPAIR/CALIBRATION ORDER RETURN FORM Setra Systems, Inc. 159 Swanson road Boxborough, MA 01719 Repair Dept. Fax #: 978-266-2158/Phone #: 978-266-2194 ✮ All lines must be filled out. ✮ This form must accompany all returns. Returns that arrive with no information will be rejected.
