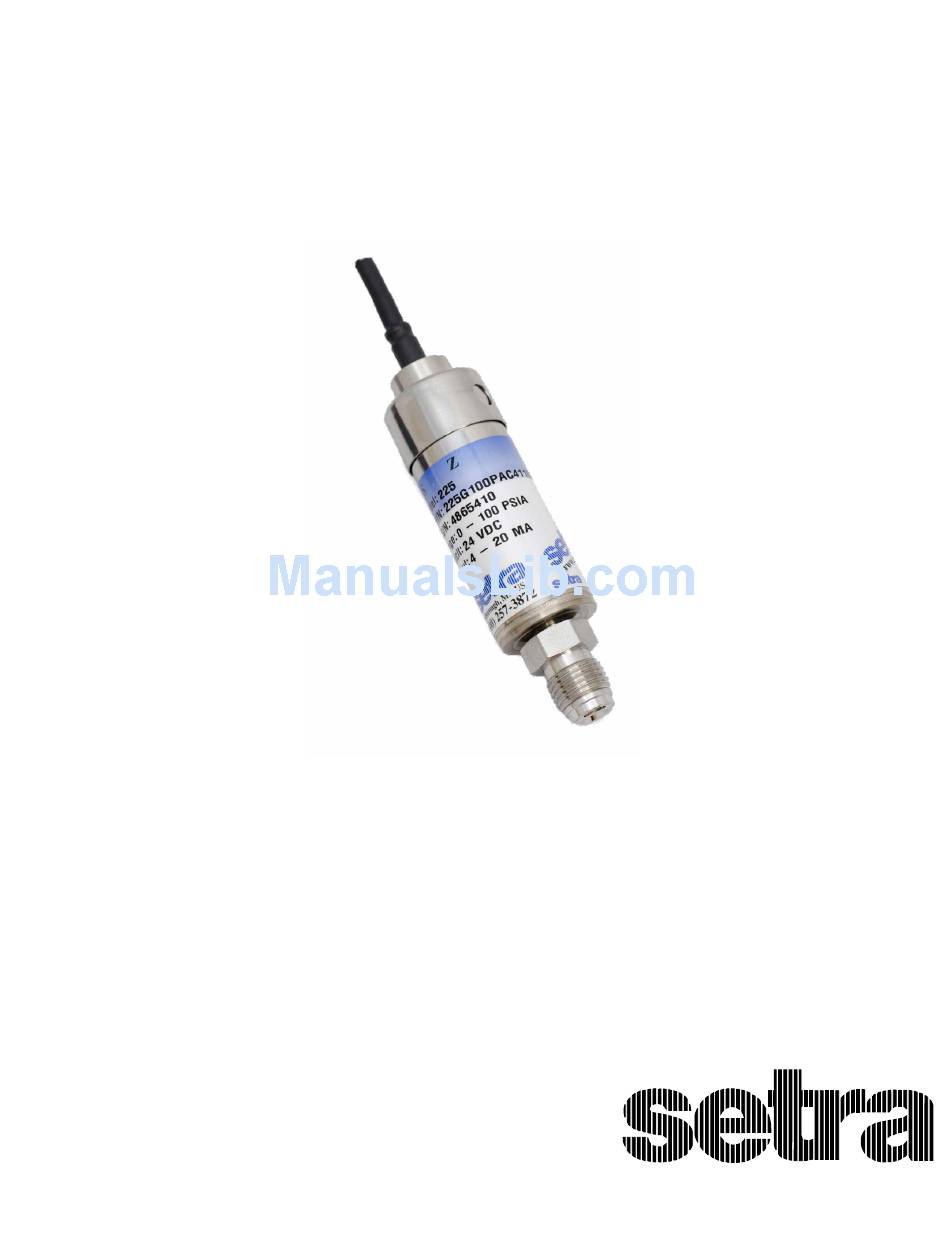

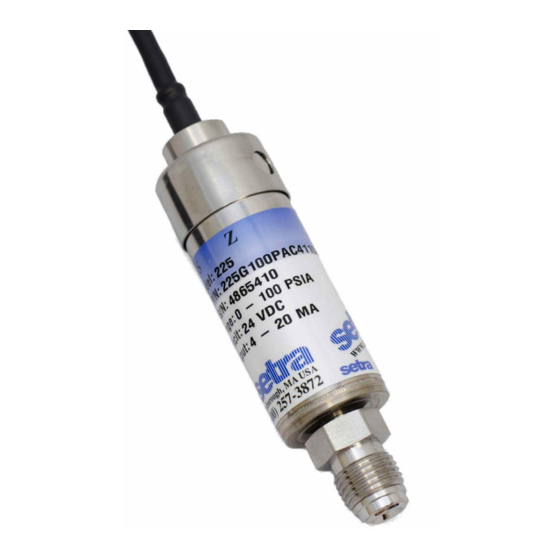

- Page 1 Installation Guide Model 225 Ultra-High Purity Pressure Transducer 1-800-257-3872 Toll Free 1-978-264-0292 Fax www.setra.com Web Site...
- Page 2 2.0 MECHANICAL INSTALLATION 2.1 MEDIA COMPATIBILITY Model 225 transducer is designed to be used with any gas or liquid compatible with 316L Stainless Steel. Never submerge the transducer in any liquids. 2.3 PERFORMANCE SPECIFICATIONS...
- Page 3 2.3 PRESSURE FITTING Mounting: Model 225 can be installed with a male or female #4 Face Seal Fitting, 1/4” NPT male or female fitting, or a 1/4” tube stub. When installed units with Face Seal Fittings: 1. Alight piping systems to transducer connections 2.
- Page 4 See sections 3.3 and 3.4 for addition instructions for units with N1 Output Cable. The Model 225 is a two-wire loop-powered 4 to 20 mA current output unit and delivered rated current into an external load of 0-800 ohms. The Model 225 is available with a multi-conductor cable or various style connectors.
- Page 5 30 VDC between the input terminals. 3.4 ATEX 94/9/EC Zone 2 Approval to EN60079-0:2012 and EN60079-15:2010 Setra 225 pressure transmitter with N1 suffix is certified by Setra to operate in ATEX zone 2 areas with Ex marking II 3G Ex nA IIC T4 Gc -30 C<Ta<+80...
- Page 6 (electric manometer, digital pressure gauge, etc) with at least 4X the accuracy of a model 225. The span may be adjusted by turning the span potentiometer while full scale pressure is applied to the pressure port.
- Page 7 (electric manometer, digital pressure gauge, etc) with at least 4X Diagram 6 the accuracy of a model 225. The span may be adjusted by turning the span potentiometer while full scale pressure is applied to the pressure port.
- Page 8 No representative or person is authorized to give any warranty other than as set out above or to assume for SETRA any other liability in connec- tion with the sale of its products. For all CE technical questions, contact Setra Systems, USA. EU customers may contact our EU representative Hengstler GmbH, Uhlandstr 49, 78554 Aldingen, Germany (Tel: +49-7424-890; Fax: +49-7424-89500).
