Setra Systems Multi-Sense 231RS Manual page 3

Multi-Sense
Multi-Configurable, Wet-to-Wet Differential Pressure Transducer

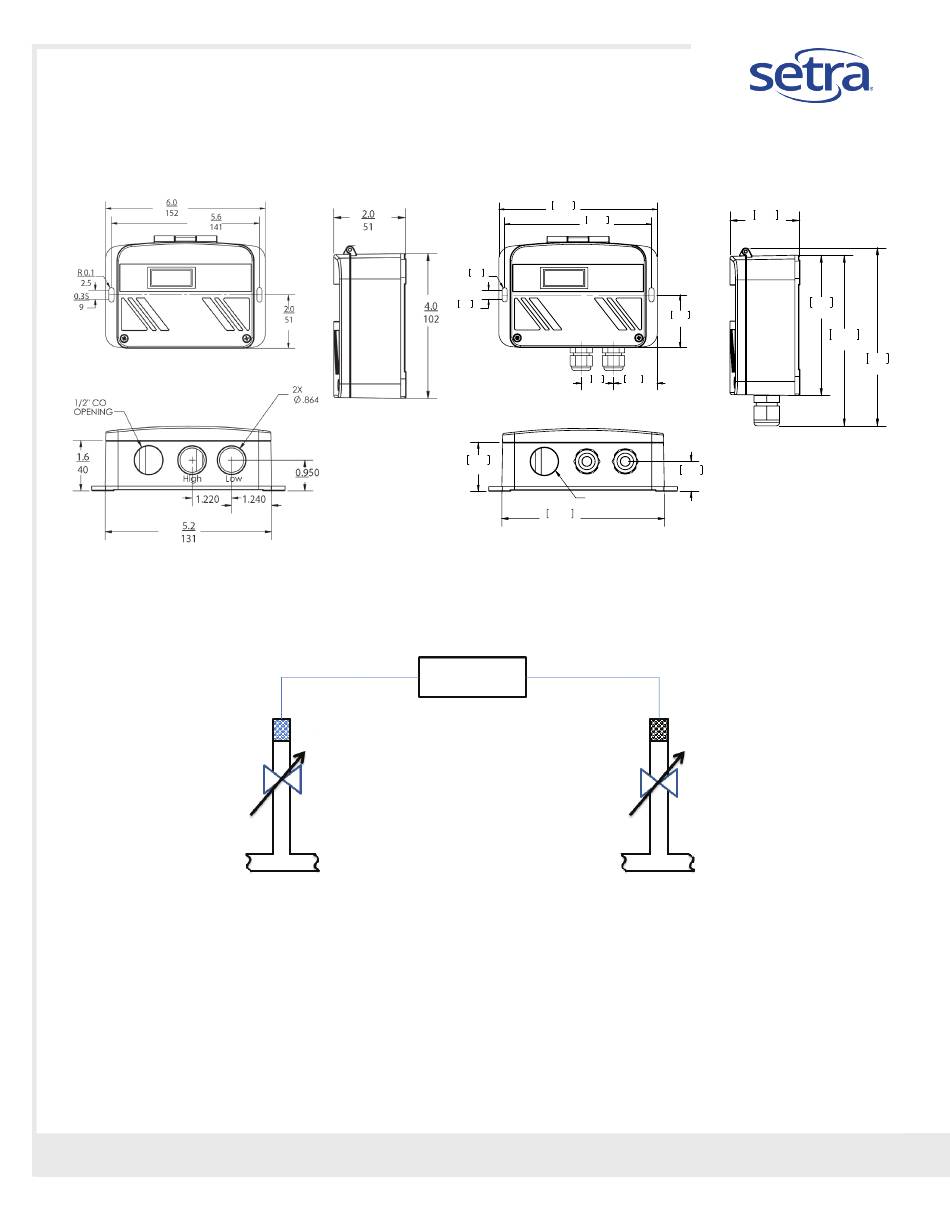

DIMENSIONS
Conduit Version
Front View
Bottom View
INSTALLATION
Valve A
High
Phone: 800-257-3872 • Fax: 978-264-0292 • setra.com © Setra Systems, Inc. All rights reserved. The Setra Systems name and logo are registered trademarks of Setra Systems, Inc.
Model 231RS
®
Side View
High Pressure
Remote Sensor
1
Valve A = High Side Valve
Pipe
Valve B = Low Side Valve
1. Valves not included.
Cable Version
152.4
6.00
141.2
5.56
2.5
R.10
8.8
.35
31
1.22
Front View
39.6
1.56
HI (+) LO (-)
1/2" CONDUIT
OPENING
131.1
5.16
Bottom View
Model 231RS
Low Pressure
Remote Sensor
Pipe
50.3
1.98
50.8
2.00
42.2
1.66
Side View
24.1
.95
Valve B
1
Low
102
4.00
123.6
4.87
129
5.08
