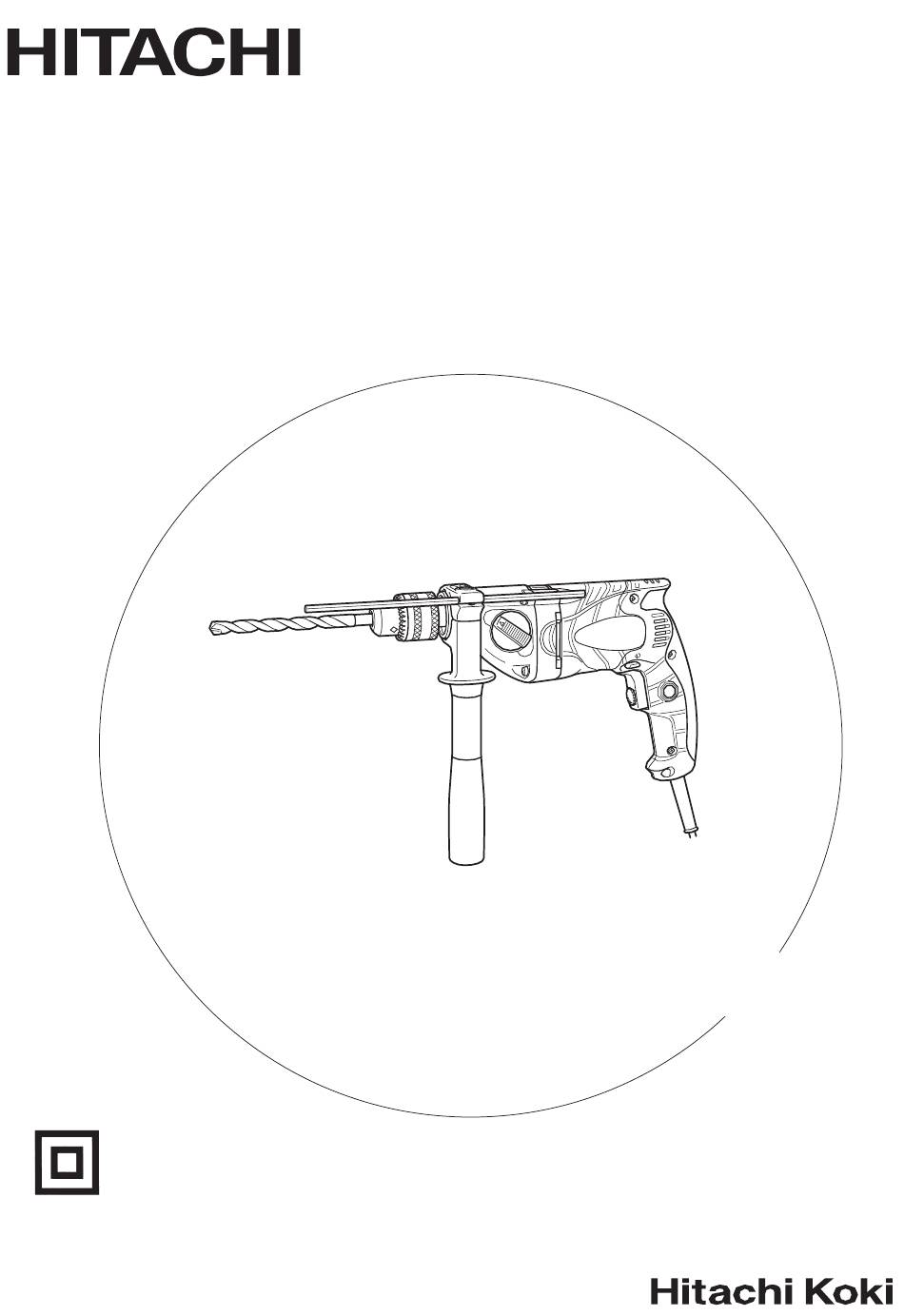

Impact Drill
Model DV 20VB2

Handling instructions

Note:
Before using this Electric Power Tool, carefully read through these
HANDLING INSTRUCTIONS to ensure effi cient, safe operation.
recommended that these INSTRUCTIONS be kept readily available as an
important reference when using this power tool.
It is

Advertisement

Table of Contents
loading

Related Manuals for Hitachi Koki DV 20VB2

Summary of Contents for Hitachi Koki DV 20VB2

  • Page 1: Handling Instructions

    Impact Drill Model DV 20VB2 Handling instructions Note: Before using this Electric Power Tool, carefully read through these HANDLING INSTRUCTIONS to ensure effi cient, safe operation. It is recommended that these INSTRUCTIONS be kept readily available as an important reference when using this power tool.

  • Page 2: Explanation Of Symbol

    English Protective equipment such as dust mask, non-skid EXPLANATION OF SYMBOL safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal : Class II tool injuries. c) Prevent unintentional starting. Ensure the GENERAL POWER TOOL SAFETY WARNINGS switch is in the off...

  • Page 3: Specifications

    English 5) Service 4. Before drilling into walls, ceilings or fl oors, ensure that a) Have your power tool serviced by a qualifi ed there are no concealed power cables inside. repair person using only identical replacement 5. Always use side handle and hold the tool fi rmly with parts.
  • Page 4 English (3) To remove the bit, place the chuck wrench into one of (2) Dismounting the bit the holes in the chuck and turn it in the counterclockwise Grip the ring and open the chuck by turning the sleeve direction. counterclockwise.
  • Page 5 English To attach a depth gauge on the side handle, insert the gauge into the U-shaped groove on the side handle, adjust the position of the depth gauge in accordance with the desired depth of the hole, and fi rmly tighten the side handle grip.

  • Page 6: Maintenance And Inspection

    English MAINTENANCE AND INSPECTION 1. Inspecting the drill bits Since use of an abraded drill bits will cause motor malfunctioning and degraded effi ciency, replace the drill bits with a new one or resharpening without delay when abrasion is noted. 2.
  • Page 8 itachi Koki Co.,Ltd. Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan Code No. C99131514 F Printed in China...
