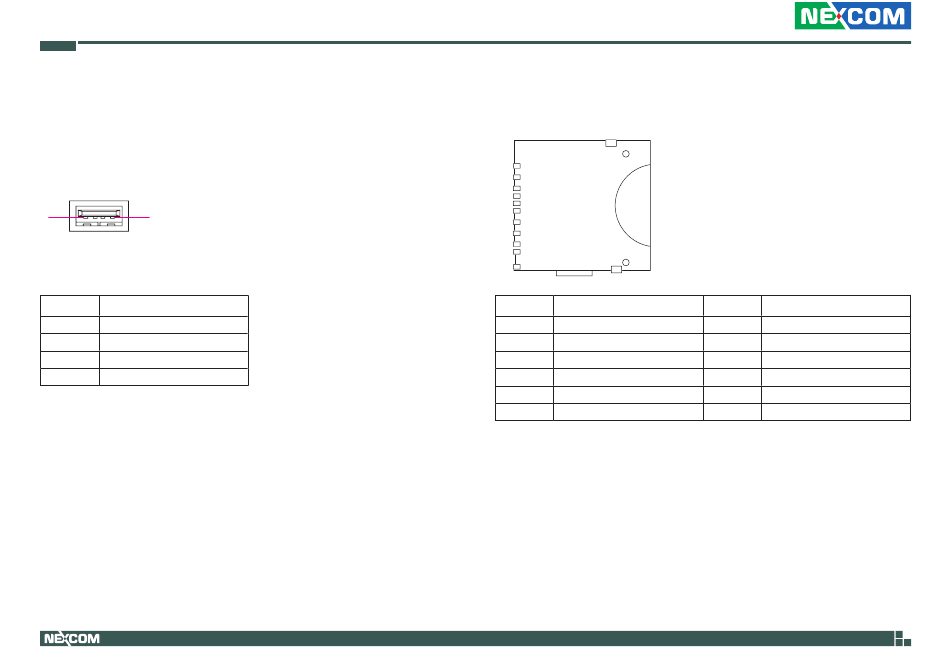

Chapter 2: Jumpers and Connectors
Internal USB Dongle Connector
Connector type: USB port
Connector location: CN1
1
4
Pin
Definition
1
USB_OC3
2
DN3_C
3
DP3_C
4
GND
Copyright © 2016 NEXCOM International Co., Ltd. All Rights Reserved.
SD Card Slot
Connector location: CN4
1
9
WP
CD
Pin
Definition
1
SD_D3
3
GND
5
SD_CLK
7
SD_D0
9
SD_D2
CD
SD_DET
18
Pin
Definition
2
SD_CMD
4
VSD
6
GND
8
SD_D1
WP
SD_WP
NIFE 200 Series User Manual
