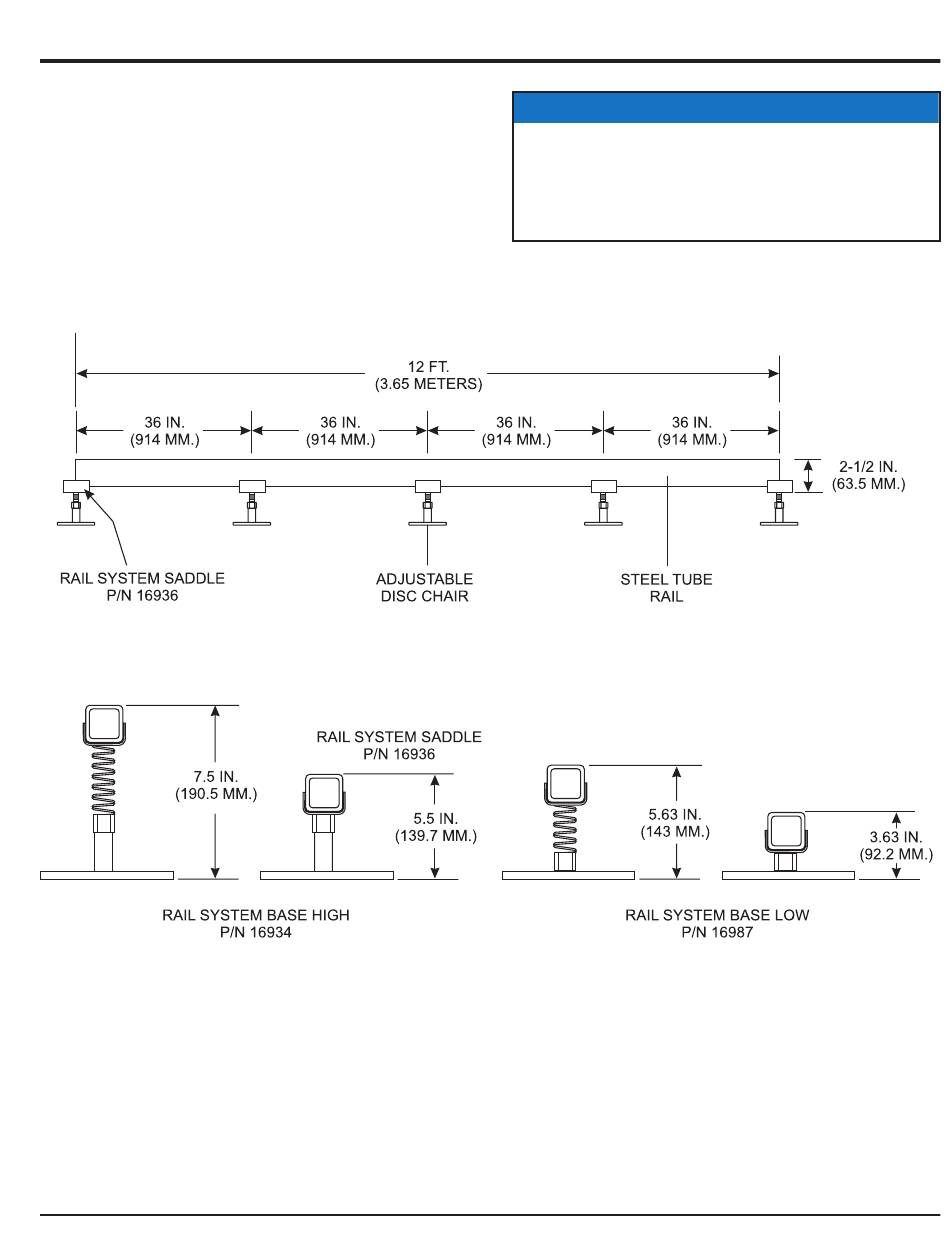

Figure 8 shows the recommended steel rail tube and
adjustable disc chair configuration.
Spacing of adjustable disc chairs should be spaced at
3 foot intervals. This will allow for 1/16-inch deflection in
steel rail tube.
PAGE 25 — WRS5200DFPU HYDRAULIC ROLLER SCREED • OPERATION MANUAL — REV. #2 (03/08/18)
Figure 9. Rail and Disc Chair Configuration

GENERAL INFORMATION

NOTICE
Figure 8 illustrates Multiquip's recommended way of
rail and disc chair placement. ALWAYS check with city
and state civil engineering regulations before installing
steel tube rails and disc chairs..
