MULTIQUIP WRS5200 Operation Manual page 45

ROLLER SCREED ASSEMBLY
Task 12: Tarp Installation

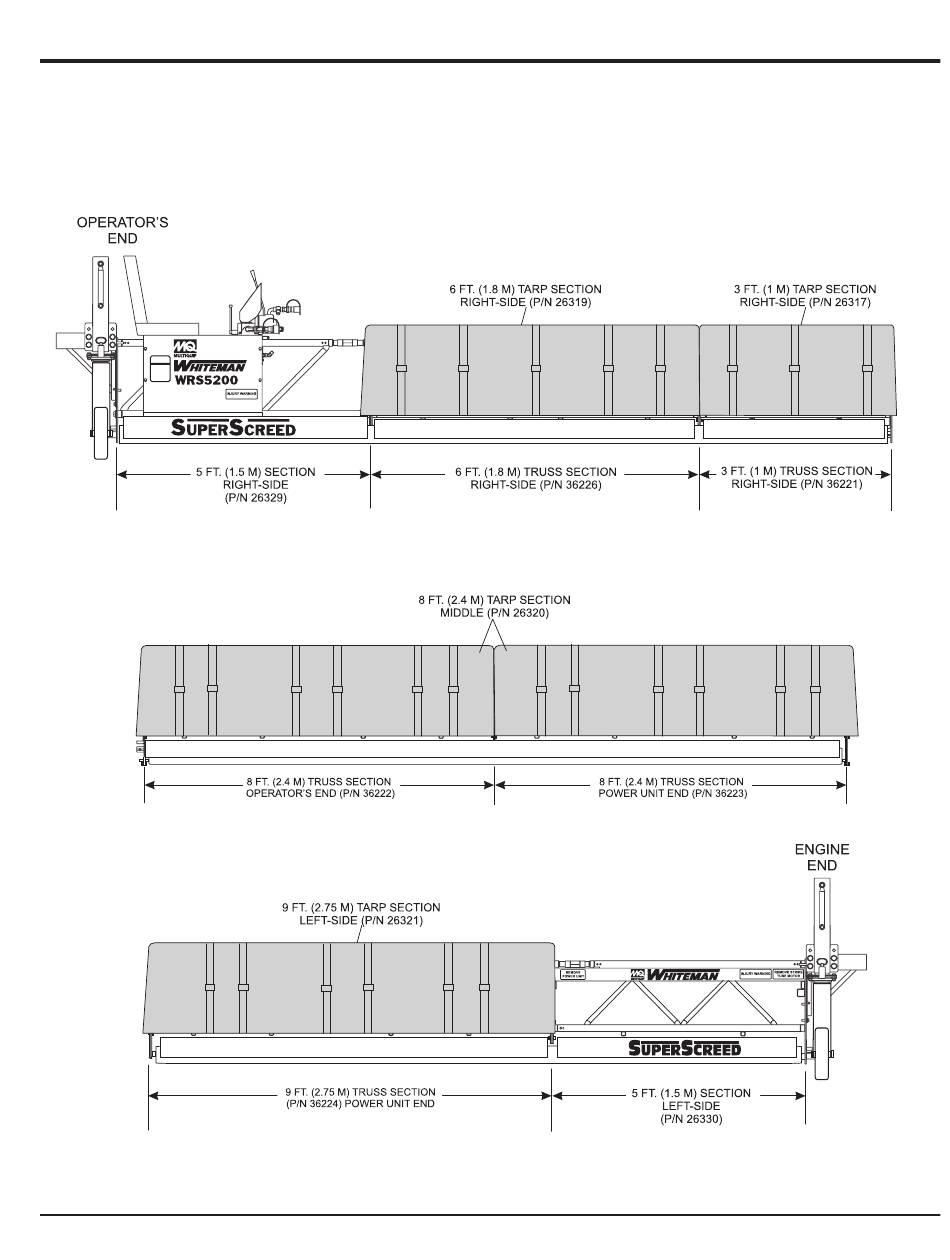

Figure 29 illustrates the installation of the tarps (protective covers) onto the various truss sections.
Place the tarps on the appropriate sections. All tarps were made to full length per each section of truss. Make sure tarps
are securely fasten to the truss frame so that they will not come loose during operation.
Figure 29. Tarp Installation
PAGE 45 — WRS5200DFPU HYDRAULIC ROLLER SCREED • OPERATION MANUAL — REV. #2 (03/08/18)
