Hydraulic Oil Check
1. To check the hydraulic oil level, place the power unit on
a secure flat surface with the engine stopped.

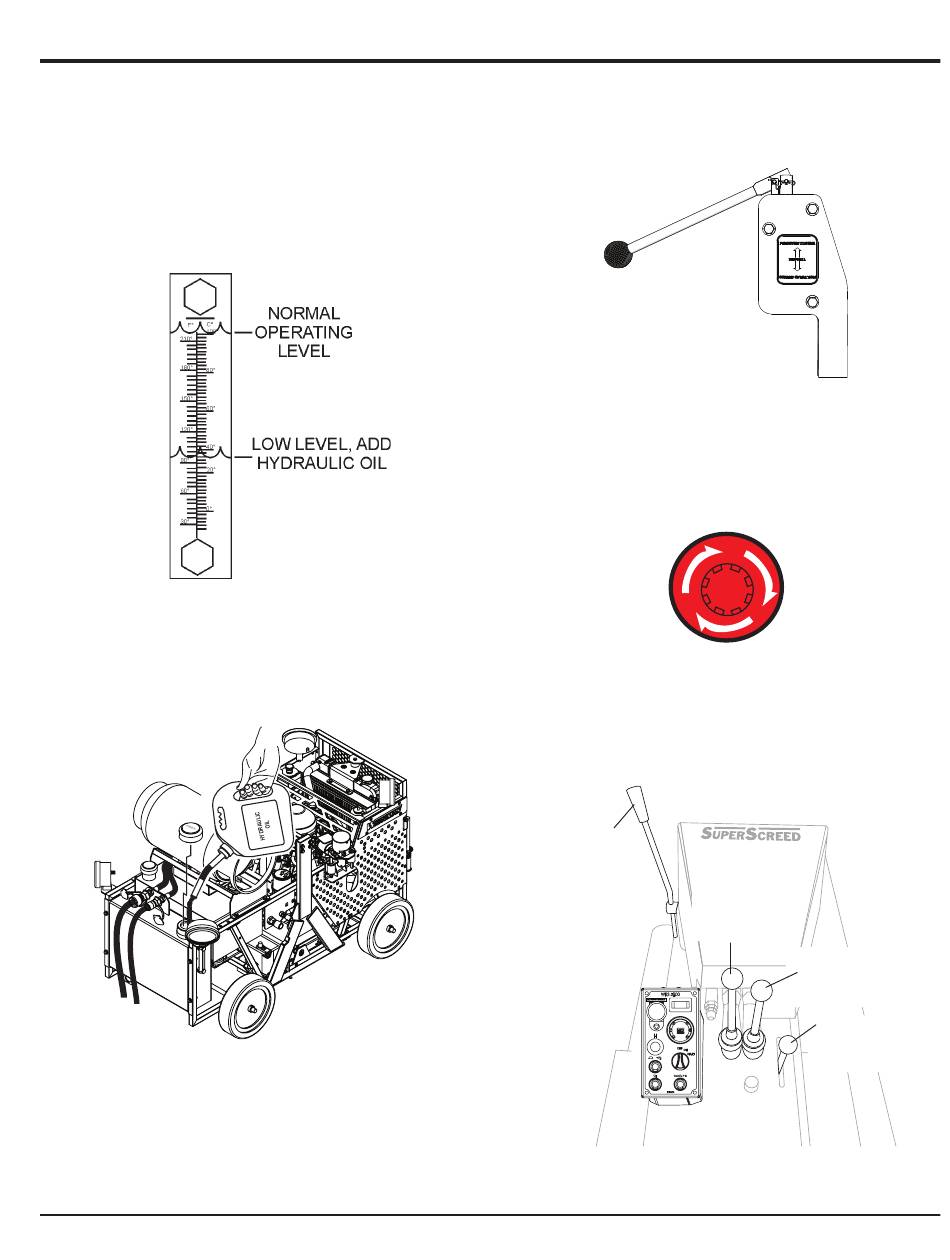

2. Visually inspect the hydraulic oil sight gauge (Figure 37)
located on the side of the hydraulic oil tank. For normal
operation the fluid level should be visible at the top of
the sight glass.
Figure 37. Hydraulic Sight Gauge
3. If the hydraulic oil level is low, remove the hydraulic oil
cap (Figure 38) and fill with type ISO 46 anti-wear type
hydraulic oil to the recommended operating level.
Figure 38. Adding Hydraulic Oil
PAGE 49 — WRS5200DFPU HYDRAULIC ROLLER SCREED • OPERATION MANUAL — REV. #2 (03/08/18)
INITIAL STARTING
1. On the power unit place the operation valve lever
(Figure 39) in the screed position.
SCREED POSITION
Figure 39. Operation Valve Lever
(Screed Position)
2. Pull upwards on both emergency stop switches. One
is located on the control box and the other is can be
located on the power unit.
Figure 40. Emergency Stop Button
3. Sit down in operator's seat.
4. Place the two drive tube directional control levers in
the middle position (Figure 41).
DRIVE TUBE
SPEED CONTROL
LEVER
!
Figure 41. Control Levers Operation

OPERATION

ENGINE END
DIRECTIONAL
DRIVE TUBE
CONTROL LEVER
OPERATOR END
DIRECTIONAL
DRIVE TUBE
CONTROL LEVER
STRIKE TUBE
SPEED AND
DIRECTIONAL
CONTROL LEVER
