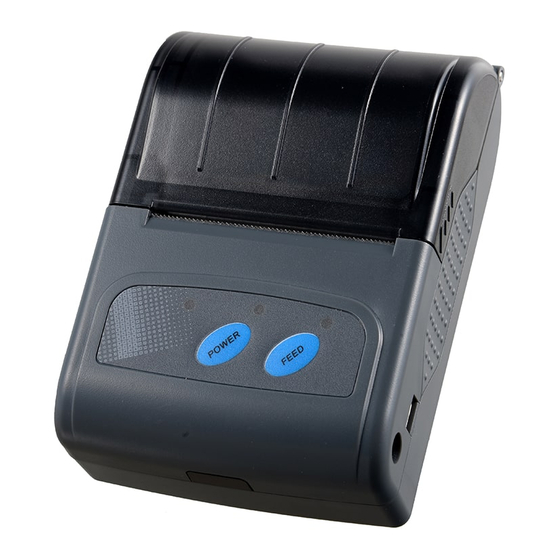

- Page 1 Portable Thermal Printer PTP-II SERIES User Manual V.16.06.14...
-
Page 2: Table Of Contents
Content Precautions.................................4 1.Introduction................................5 1.1 Function Features............................. 8 2. Accessory................................8 2.1 Standard accessories............................8 2.2 Options accessories............................9 3.Printer exterior................................ 9 3.1 Front................................... 9 3.2 Back..................................9 4.Function characters.............................10 5.Prepare before using............................11 5.1 Battery installation considerations......................... 11 5.2 Li-ion battery installation..........................11 5.3 Paper loading.............................. - Page 3 6.8 Preprinted black mark specification......................13 7.Communication..............................14 7.1 serial communication (RS232)........................14 7.2 USB communication............................15 7.3 Bluetooth Communication..........................16 7.4 WIFI Communication............................16 7.5 RAW-IR Communication..........................17 8. Maintenance and maintenance.........................17 8.1 Daily maintenance............................17 8.2 usage and preservation of print paper......................17 9.Fault diagnosis..............................
-
Page 4: Precautions
Precautions ◆ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. - Page 5 ◆ Operation Precautions Be sure not to print continuously over 1meter, otherwise may cause damage to the printer head.
- Page 6 Water or other liquid should not spill into the printer, also the printer should not be appeared in the rain, or else may cause printer damage. Please do not open the paper case cover when printing; otherwise the printer may work improperly. If print with serial interface, should not unplug the interface cable in the course of printing, or else some printing data may be lost.
- Page 7 performance, and reduced product life. 1) Risk of explosion if battery is replaced by an incorrect type. 2) Dispose of used batteries according to the instructions. 3) Do not allow water, sea water from entering or leaking into the battery inside. If the batteries internal safety device burn, when changing it, it may produce any abnormal current and/or voltage, and cause any abnormal chemical reaction, then may cause the battery overheating, fire and/or explosion.
-
Page 8: Introduction
※ 7.4V/2000mAh large capacity battery with low power design and automatic sleep wake up function, work time longer ※ RS232C，USB，Bluetooth，WIFI,Raw-IR, wired and wireless for choose ※ Emulation ESC/POS commands ※ Supply Windows driver ※ Supply Android and IOS demo and SDK 2. Accessory 2.1 Standard accessories PTP-II Battery AC Adapter Paper Roll User Manual USB Cable... -
Page 9: Options Accessories
2.2 Options accessories car charger Serial Interface Cable Protective Case 3.Printer exterior 3.1 Front 3.2 Back... -
Page 10: Function Characters
11. Leather hang Note: The status indicator and charging indicator light separately be set in above of the two keys. Using red and blue to show different mean. 4.Function characters Model PTP-II PTP-II/BT PTP-II/IR PTP-II/WF Printing method Line thermal printer... -
Page 11: Prepare Before Using
Weight ( g) 280 (Including battery, paper roll ) Printing characters ANK: 8x16,9X17, 9x24,12x24 GBK:24x24 Characters/line ANK:48, 42, 32 GBK:24, 16 Life cycle time 50km(printing density under 12.5%)/100 million pulses 1D: UPC-A,UPC-E,EAN-13,EAN-8,CODE39,CODE93, CODE128,CODEBAR,ITF25 Barcode type 2D: QR CODE, PDF417 RAW-IR， Bluetooth V2.0 / V4.0 WIFI, interface... -
Page 12: Paper Loading
2) Close the battery case. 5.3 Paper loading Rubber Roller Top cover Use two fingers to press this place and open the top cover Thermal paper roller Operation methods: 1) Use two fingers to press the place showed in the above picture and open the top cover. 2) Put the paper roll into the paper case, pay attention to the direction of paper. -
Page 13: Led Indicator And Buzzer Definition
During charging, the user can usually use the printer. 6.6 LED Indicator and buzzer definition PTP-II has one buzzer and two LED indicators to indicate the printer status. The LED indicators indicate current status and buzzer indicates the changes of status. -
Page 14: Communication
7.Communication PTP - II printer has two kinds of communication methods (1) Wired : USB/RS232C (2) wireless bluetooth/wi-fi/ir 7.1 serial communication (RS232) The printer have one DB-9 serial port cable as option (one port connect to the printer, the other connect to MINI DIN plug) Socket pin defined as shown in the figure below:... -
Page 15: Usb Communication
Reserve 7.2 USB communication PTP-II printer has a mini USB interface，to achieve it through the mini USB USB2.0 interface. Note：Printer using USB communication, need to install PL2303 driver first. Printer contact computer USB,than open”my printer”--”device manager”--”combo”,will see this icon,illustrate that successfully install driver,and use normally. -
Page 16: Bluetooth Communication
eg：For instance: If you pull up USB cable, the icon disappear, and it appear reconnection. That shows COM3 is the port connect printer with computer. 7.3 Bluetooth Communication Matching method is as follows: 1．Power on, 2．The main equipment for external bluetooth devices, 3．If you have more external bluetooth devices, selected inhibits PTP - III printer, 4．Enter the default password is “0000”or obtained bluetooth password by printer self-test page 5．Complete the matching. -
Page 17: Raw-Ir Communication
When PTP-II/IR communicates with the host devices make the IR interfaces ( from both PTP-II and the host device ) right towards to each other ( angle shall not be more than 30° ), without any obstacles between them, the distance shall be less than 0.5M. - Page 18 direction. Printer mechanism is dirty. Please clean printer mechanism. It prints hazily. Words in bad quality of printer Please set print density and print quality or paper. use better quality paper. It beeps three times continuously. Printer cover open when Close printer cover, printing.
