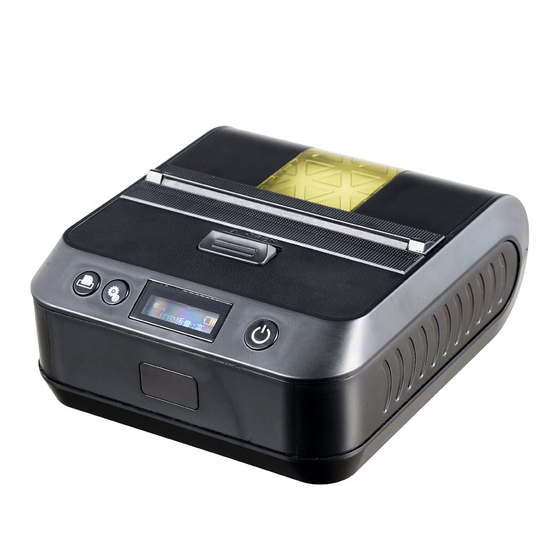

3" Portable Thermal Printer
PTP-III Series
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTP-III and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cashino PTP-III

Summary of Contents for Cashino PTP-III

  • Page 1 3” Portable Thermal Printer PTP-III Series User Manual...

  • Page 2: Table Of Contents

    Precautions............................4 1. summarize....................错误！未定义书签。 1.1 Function Characteristics..............错误！未定义书签。 2. Accessories Introduction..............错误！未定义书签。 2.1 Standard accessories..............错误！未定义书签。 2.2 Optional accessories......................8 3. Components Introduction..............错误！未定义书签。 31 Front view...........................9 3.2 Back view..........................8 4. technical parameter........................9 5. LED Introduction........................10 5.1 Wireless communication/Setting mode..............10 5.2 Data transfer status ................10 5.3 Print mode ....................10...
  • Page 3 8.1.7 Automatic off time ....................13 8.1.8 Language selection ....................13 8.1.9 Bluetooth setting ....................13 9. Communication........................15 9.1 Serial communication....................15 9.2 USB communication....................16 9.3 Bluetooth communication................... 16 9.4 WIFI communication .................16 10.Maintenance..........................17 8.1 Daily maintenance......................17 8.2 usage and preservation of print paper..............17 11.

  • Page 4: Precautions

    Precautions ◆ Safety Precautions In using the present appliance, please keep the following safety regulations in order to Prevent any hazard or material damage.
  • Page 5 ◆ Operation Precautions Be sure not to print continuously over 1meter, otherwise may cause damage to the printer head.
  • Page 6 Water or other liquid should not spill into the printer, also the printer should not be appeared in the rain, or else may cause printer damage. Please do not open the paper case cover when printing; otherwise the printer may work improperly. If print with serial interface, should not unplug the interface cable in the course of printing, or else some printing data may be lost.
  • Page 7 5) When charging, use a specified charger. Other conditions (high temperature, high pressure/high current, using the modified battery charger, etc) excludes here may result in over-charging the battery and abnormal current and/or voltage, cause abnormal chemical reaction, and may cause the battery overheat, light and/or explosion.

  • Page 8: Accessories Introduction

    1. Introduction This product is a high efficient portable printers, the weight of the fuselage is small, high durability, long duration printing, widely used in mobile POS, retail, parking tickets, logistics, shipping, warehouse, utility bill, etc. 1.1 Function Features ※ Equipped with lithium battery, can work continuously for 8 hours ※...

  • Page 9: Components Introduction

    5.LED window 6.setting button 7.paper feed key 8.infrared window 9.power adapter connector 10.Mini USB connector 11. Sling hole 12. Li-ion battery 4.Function characters Model PTP-III PTP-III/BT PTP-III/WF Printing method Line thermal printer Printing speed 50~80mm/s Dot pitch 8dots/mm, 384 dots/line...

  • Page 10: Led Introduction

    Printing width 72mm Paper width 80±0.5mm Paper roll outer 40mm (Max.) diameter Paper roll inner 13mm(Min.) diameter Paper thickness 60-80um Overall 111x112x48mm dimension(WxDxH): Weight ( g) 358 (Including battery, paper roll ) Printing characters ANK: 8x16,9X17, 9x24,12x24 GBK:24x24 Characters/line ANK:48, 42, 32 GBK:24, 16 Life cycle time 50km(printing density under 12.5%)/100 million pulses...

  • Page 11: Data Transfer Status

    5.2 Data transfer status It is used for date transfer. It blinks when the printer and external device for data transfer 5.3 Print mode It is used for showing print mode.It shows when it’s printing or feeding. 5.4 Paper out status It is used for showing paper out mode.It shows when printer is paper out or installed paper incorrectly.

  • Page 12: Battery Charging

    3.You can print when it’s charging. 4.Please keep printer power on when charging,or it can not charge successfully. 6.3 Paper roll installation PTP-III printer uses 39mm(diameter) x 80mm(width) thermal paper. 1.Take down the seal on paper roll. 2.Push the open button to open printer cover.

  • Page 13: How To Use

    7.How to use 71 Power on Press power key 2 seconds. 7.2 Power off Press power key 3 seconds when it is power on. 7.3 Paper Feed Press paper feed key:it is feeding 1-2cm paper. Press persistently feed key:It is feeding 25cm paper. 8.Setting 8.1 Content setting Press persistently setting key after power on,it shows print quality setting page.

  • Page 14: Printing Self-Test Page

    Print quality 8.1.4 Two options:High and Normal.You can press paper feed key to change the option. Print density 8.1.5 Seven options:Option 0-6.You can change different densities according to paper. Print self-test page 8.1.6 Press paper feed key to start printing self-test paper, self-test page will provide specific models of printers, communication interface configuration, the configuration character, etc.

  • Page 15: Communication

    9. Communication PTP-III printer has two communication ways. 1. Wired：USB/RS232 2. Wireless：Bluetooth / WIFI 9.1 Serial communication(RS232) PTP - III printer have a RS232C serial port cable with DB-9 pin (one port connect to the printer, the other connect to 5 pin MINI USB interface)

  • Page 16: Usb Communication

    9.2 USB communication PTP-III printer has a mini USB interface, to achieve it through the mini USB USB2.0 interface. Note ：Printer using USB communication, need to install PL2303 driver first. Printer contact computer USB,than open”my printer”--”device manager”--”combo”,will see this icon,illustrate that successfully install driver,and use normally.

  • Page 17: Wifi Communication

    3．If you have more external bluetooth devices, selected inhibits PTP - II printer, 4 ． Enter the default password is “0000”or obtained bluetooth password by printer self-test page 5．Complete the matching. WIFI Communication Printer can be connected to other sites, such as PDA and PC, support wireless LAN application mode of communication.
  • Page 18 Fault phenomenon Fault cause Solutions It beeps two times Paper out Please install paper roll correctly. continuously . It beeps two times Low battery Please charge discontinuously, It doesn’t print when Install paper roll Please re-install. feeding. opposite direction. Printer mechanism Please clean printer mechanism.
