Summary of Contents for Cashino POS80V

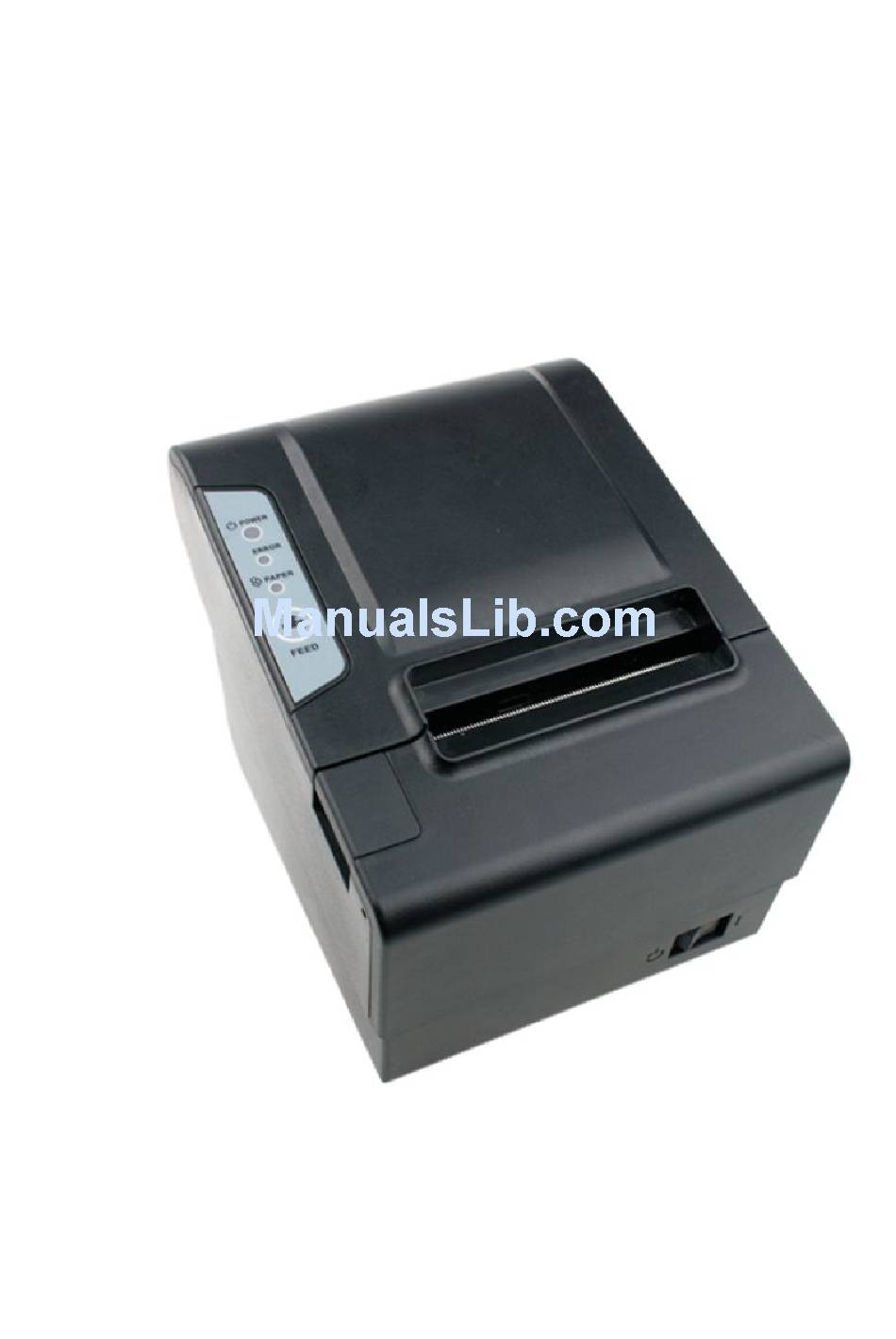

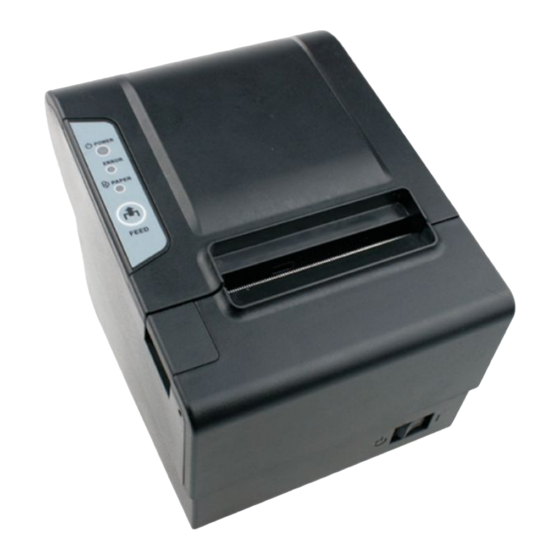

- Page 1 POS80V User Manual...
-
Page 2: Table Of Contents
Contents Contents...............................2 Preface............................... 3 1.The printer introduction........................ 4 1.1 Open box..........................4 1.2 All parts of the printer name..................... 4 2.Technical parameters........................5 3．Basic operation and use......................6 3.1 Open the paper roll cabinet’s cover................6 3.2 Load paper roll........................7 3.3 Set the print mode（DIP Switch）..................8 3.4 Control panel........................ -
Page 3: Preface
Preface Thank you very much for your choose and buy our thermal receipt printers, before using the printer,please read this instruction manual and related data, in order to correctly use and better play to the performance characteristics of the machine Note 1.Printer should be installed in a stable place, avoid the printer in the vibration and shock. -
Page 4: The Printer Introduction
1.The printer introduction 1.1 Open box After opening the package, please immediately confirm whether the following parts is complete, and there is no damage in transit. If you have questions,please do not hesitate to contact supplier. 1.2 All parts of the printer name ⑴Power switch ⑵Open handle ⑶Control panel... -
Page 5: Technical Parameters
2.Technical parameters... -
Page 6: 3．Basic Operation And Use
Print method Thermal printer Paper width 80±0.5mm Printing Width 72mm Print Density 8 dots/ mm，576 dots/line Max Print 250mm/ sec speed Prpint head lif：about 50km Reliability Cutter life：About 300000 times MCBF：1.5X106 line (ANK Character)： 12×24 dots， 1.5(width)×3.00(height)mm Character size (Jan/traditional form)： 24×24 dots，3.00(height) ×3.00(high)mm Print Support ANK character, self-defined Chinese... -
Page 7: Load Paper Roll
Figure 1 3.2 Load paper roll Please select the right specification paper roll before installation. 1. Power off the printer. 2. Open the cover of paper roll cabinet. 3. Remove the core bar of running out thermal paper. 4. Load a new paper roll as following picture. 5. -
Page 8: Set The Print Mode（Dip Switch
Make sure using thermal rolls that meet specificat ions and with standard quality; When take thermal paper out of printer, you must make sure that paper stay in the center of thermal printer mechanism and paper exit, or may affect the normal work of the printer;... -
Page 9: Control Panel
2) Press “FEED” button on the printer control panel, and then turn on power switch, wait 1-2 seconds, release “FEED” button, the printer began to self-test and print report; 3.6 Connect printer POS80V interface：RS232C+USB Port+Ethernet interface ①RS232C Mode of data transmission：Serial Synchronization method:asynchronous Handshaking：DTR/DSR 或... -
Page 10: ②Usb Port
②USB port USB port as printer directly ③Ethernet port When using the Ethernet interface,please use the setting tool in the to set printer IP address which is the same as address of PC to the same network segment (The IP address of the factory default for: 192.168.1.87) and document set software CD) 4.Printer failure analysis 4.1 Exclude paper jammed... -
Page 11: Clean Printer
图 4 4.2 Clean printer When there is one of the following conditions,printer head should be cleaned： ⑴Print is not clear； ⑵Print the page vertical column is not clear； ⑶Noisy when start to print. The print head cleaning steps are as follows： ⑴Close the printer power supply, open the cover, if there is a paper, remove the paper；...
