Xiamen Cashino Technology Co., Ltd.
KMP-II user manual

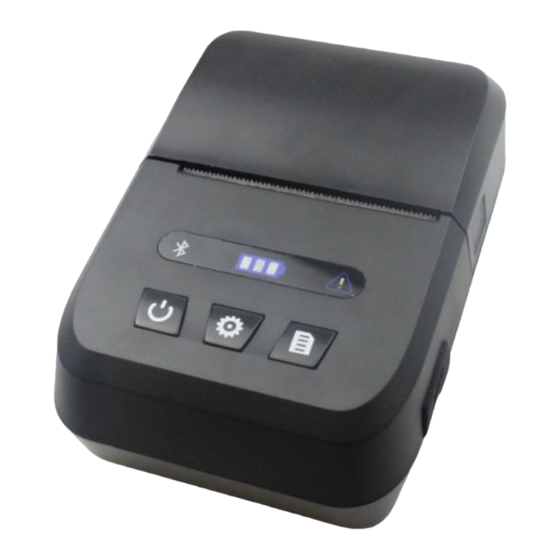

KMP-II Portable Thermal Printer
User Manual
Protocol:Zhu Chunyan 2018.04.17
Audit: Huang Zongze 2018.04.18
Standardize: Hu Riyu 2018.04.19
Authorize: Wang Huangyong 2018.04.20
Company: Xiamen Cashino Technology Co., Ltd.
Tel: 0592-5517253 Fax: 0592-5231815
Address: 4/F,No.318,Tongji South Road, Jimei District,Xiamen,China.361021
The manual is subject to change without further notice. Please contact Xiamen
Cashino Technology Co., Ltd. directly for the latest version.
KMP-II portable thermal printer product specifications revision record
www.cashinotech.com
1
Advertisement
Table of Contents
Related Manuals for Cashino KMP-II
Summary of Contents for Cashino KMP-II
- Page 1 Tel: 0592-5517253 Fax: 0592-5231815 Address: 4/F,No.318,Tongji South Road, Jimei District,Xiamen,China.361021 The manual is subject to change without further notice. Please contact Xiamen Cashino Technology Co., Ltd. directly for the latest version. KMP-II portable thermal printer product specifications revision record www.cashinotech.com...
-
Page 2: Content
Xiamen Cashino Technology Co., Ltd. KMP-II user manual Edited Item Date Description Desing Review page Huang 20180417 The first draft Chunyan Zongze Content www.cashinotech.com... -
Page 3: Table Of Contents
Xiamen Cashino Technology Co., Ltd. KMP-II user manual Content............................2 Precautions..........................3 1. Product description......................6 1.1 Product features......................6 2. External..........................7 3. Product component......................7 3.1 Front..........................7 3.2 Rear..........................8 4. Specifications........................9 5. Prepare before using......................10 5.1 precautions.......................10... - Page 4 Xiamen Cashino Technology Co., Ltd. KMP-II user manual ◆ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. ◆ Operation Precautions www.cashinotech.com...
- Page 5 Xiamen Cashino Technology Co., Ltd. KMP-II user manual DO NOT print more than 1 meter continuously, otherwise, the printing head may be damaged. DO NOT allow water or other liquid enter or leak into the printer, also DO NOT allow the printer to be exposed to rain, otherwise, damage may result.
-
Page 6: Product Description
5. When charging the battery, use the exclusive charger or follow the charging requirements outlined by CASHINO. Charging under conditions not included in such requirements (higher temperature, higher voltage/larger electrical current, use of a modified charger, etc.) can result in excessive battery charging and abnormal electrical current flow and/or voltage that causes an abnormal chemical reaction, which may then cause the battery to overheat, ignite, and/or explode. -
Page 7: External
Xiamen Cashino Technology Co., Ltd. KMP-II user manual 1) Equipped with lithium battery and support 8 hours of working time continuously . 2) Portable device suitable for outdoor usage. 3) Support one-dimensional code printing and QRCODE two-dimensional code printing. 4) 7.4V/2000mAh high-capacity battery, low power consumption design, automatic sleep and wake function, long working time. -
Page 8: Rear
Xiamen Cashino Technology Co., Ltd. KMP-II user manual 3.2 Rear www.cashinotech.com... -
Page 9: Specifications
Xiamen Cashino Technology Co., Ltd. KMP-II user manual 1. Paper Feed 2. Power Button 3. Function Button 4. Micro USB Button 6. Battery status 7. ERROR indicator 8. Status indicator 5. Paper Cover light light light 9. Battery 10. Belt Strap Hole 4. -
Page 10: Prepare Before Using
Xiamen Cashino Technology Co., Ltd. KMP-II user manual 5. Prepare before using 5.1 precautions The battery is not inputted into the printer when it comes out factory. Please put the battery into the slot. Note: As the battery is not charged at the time of purchase, charge the battery prior to product use. -
Page 11: Paper Installation
Xiamen Cashino Technology Co., Ltd. KMP-II user manual 5.3 Paper Installation Printing roller Paper cover Press this to open the paper cover Paper roll Operation methods： ① Press the open button to open the paper cover. ② Put the paper roll into the paper bin, pay attention to the direction of paper. If the position is reversed, the printer will print blank pages. -
Page 12: Power On
Xiamen Cashino Technology Co., Ltd. KMP-II user manual Battery indicator light 2 Battery indicator light 1 Battery indicator light 3 6.1 Power on Under the close state, Press [POWER] button for 2 seconds, the printer enters to the working state, the power indicator light (Red). -
Page 13: Auto Sleep, Auto Wakeup, Auto Shutdown
Light on dependent on battery Beep Paper end Not on power constantly 6.7 Auto Sleep, Auto Wakeup, Auto Shutdown In order to save energy and prolong the service life, KMP-II printer adopts advanced auto sleep and auto wakeup technology. www.cashinotech.com... -
Page 14: Interface
KMP-II printer has two communication ways. ①Wire: USB ②Wireless: Bluetooth/ WIFI 7.1 USB communication KMP-II printer has a USB wire interface, it is implemented by conversing Micro USB to USB2.0. Note: USB has two types: virtual serial port and print port. Default is print port. - Page 15 Xiamen Cashino Technology Co., Ltd. KMP-II user manual After connecting the printer to computer by USB, open "My Computer" - "Device Manager" - " Universal Serial Bus Controllers ". If it has this "USB printing support" icon, it means the USB interface has been properly identified and used.
-
Page 16: Bluetooth Communication
Matching steps: 1. Power on the printer. 2. Host device search for external Bluetooth device 3. If you have more external Bluetooth devices, select KMP-II printer. 4. Enter the default password “0000”or obtained Bluetooth password by printer self- test page. -
Page 17: Wifi Communication
Xiamen Cashino Technology Co., Ltd. KMP-II user manual . Complete matching. 7.4WIFI communication Printer can be connected to other sites, such as PDA and PC, support wireless LAN application mode of communication. The wireless LAN environment (IP,SSID, authentication, encryption) can be checked through the self-test page. -
Page 18: Fault Diagnosis
Xiamen Cashino Technology Co., Ltd. KMP-II user manual 9. Fault diagnosis Fault phenomenon Fault cause Solution It beeps twice continuously . Paper out Install the paper roll correctly It beeps twice Power low Please charge discontinuously It doesn't print any content...
