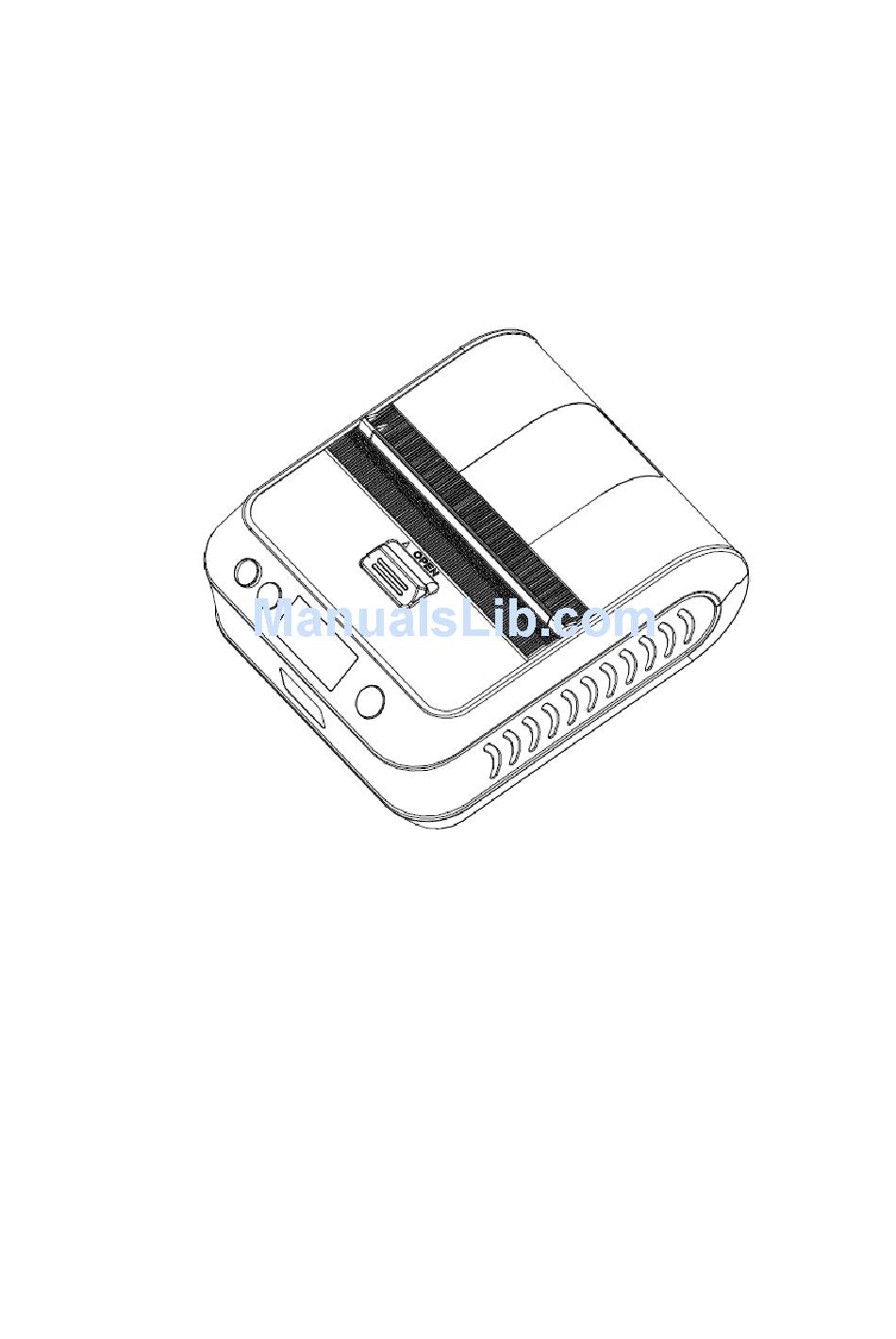

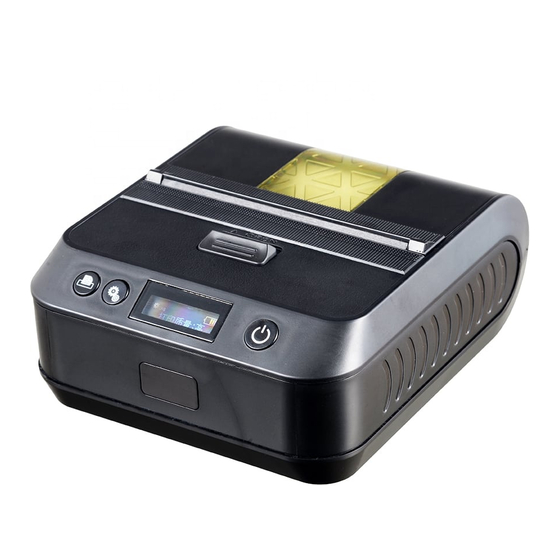

  • Page 1 80mm mini portable thermal printer PTP-III TECHNICAL MANUAL...

  • Page 2: Table Of Contents

    Table of Contents 1.Command List ........................ 4 2.Control Commands ......................5 HT ............................. 5 LF ............................5 CR ............................. 5 ESC SP n ........................... 6 ESC ! n ..........................6 ESC $ nL nH ........................6 ESC % n ..........................7 ESC &...
  • Page 3 GS ‘ ..........................34 FS ! n ..........................35 FS & ..........................36 FS ........................... 36 ESC = n ........................... 36 FS 2 c1 c2 d1...dk ......................37 ESC c 5 n(for buttons)..................... 37 DC2 T ..........................37...

  • Page 4: Command List

    1.Command List Type Command Name Print and line feed Print and carriage return Print JMP to the next TAB position Command ESC D n Set horizontal tab positions ESC J n Print and Feed n dots paper ESC d n Print and Feed n lines ESC 2 Select default line spacing...

  • Page 5: Control Commands

    2.Control Commands [Name] Horizontal tab [Format] ASCII Decimal [Description] Moves the print position to the next horizontal tab position. [Notes]  This command is ignored unless the next horizontal tab position has been set.  If the next horizontal tab position exceeds the printing area, the printer sets the printing position to [printing area width + 1].

  • Page 6: Esc Sp N

    This command line feed is ignored with a serial interface model. [Notes] Sets the print starting position to the beginning of the line. [Reference] ESC SP n [Name] Set right-side character spacing [Format] ASCII Decimal 27 0 n 255 [Range] [Description] Sets the character spacing for the right side of the character to [n×...

  • Page 7: Esc % N

    In standard mode, the horizontal motion unit (x) is used. [Reference] ESC \, GS $, GS \ Off/On Decimal Function Character Font A (12×24). Character Font B (9×17). Turn white/black reverse printing mode not selected. Turn white/black reverse printing mode selected. Turn on/off upside-down printing mode not selected.
  • Page 8 xk)] c2 [x1 d1...d(y x1)]...[xk d1...d(y Decimal y c1 xk)] [Range] y = 3 32 c1 c2 126 0 x 12 (when Font A (12×24) is selected) 0 d1 ... d(y×xk) 255 [Description] Defines user-defined characters. y specifies the number of bytes in the vertical direction. c1 specifies the beginning character code for the definition, and c2 specifies the final code.

  • Page 9: Esc M Nl Nh D1

    d1= <0F>H d4 = <30>H d7 = <40>H ..d2 = <03>H d5 = <80>H d8 = <40>H ..d3 = <00>H d6 = <00>H d9 = <20>H ..ESC m nL nH d1...dk [Name] Select bit-image mode m nL nH d1...dk...
  • Page 10 0 d 255 [Description] Selects a bit-image mode using m for the number of dots specified by nL and nH, as follows: Mode Vertical Direction Horizontal Direction Number Dot Density Number of Data Density Dots nL + nH ×256 8-dot single-density 67.7 dpi 101.6 dpi nL + nH ×256...
  • Page 11 3.11.3 When 24-dot bit image is selected:...

  • Page 12: Esc - N

    3.11.3 ESC - n [Name] Turn underline mode on/off [Format] ASCII Decimal 0 n 2, 48 n 50 [Range] [Description] Turns underline mode on or off, based on the following values n： Function 0, 48 Turns off underline mode 1, 49 Turns on underline mode (1 dot thick) 2, 50 Turns on underline mode (2 dots thick)

  • Page 13: Esc ? N

    [Format] ASCII Decimal 0 n 255 [Range] [Description] Sets the line spacing to [n×0.125 mm]. The line spacing can be set independently in standard mode. [Notes] In standard mode, the vertical motion unit (y) is used. [Default] n = 30 [Reference] ESC 2 ESC ? n...

  • Page 14: Esc E N

    n1...nk Decimal 27 n1...nk 1 n 255 [Range] 0 k 32 [Description] Sets horizontal tab positions. n specifies the column number for setting a horizontal tab position from the beginning of the line. k indicates the total number of horizontal tab positions to be set. The horizontal tab position is stored as a value of [character width [Notes] n]measured from the beginning of the line.

  • Page 15: Esc G N

    ESC G n [Name] Turn on/off double-strike mode [Format] ASCII Decimal 0 n 255 [Range] [Description] Turns double-strike mode on or off. When the LSB of n is 0, double-strike mode is turned off. When the LSB of n is 1, double-strike mode is turned on. Only the lowest bit of n is enabled.

  • Page 16: Esc M N

    Germany Denmark I Sweden Italy Spain I Japan Norway Denmark II Spain II Latin America Korea Slovenia/Croatia China [Default] n = 0 ESC M [Name] Select character font [Format] ASCII Decimal n  [Range] [Description] Selects the character font. Function Simplified Chinese character font（12）...

  • Page 17: Esc A N

    1,49 Turns on 90clockwise rotation mode This command affects printing in standard mode. However, the [Notes] setting is always effective. When underline mode is turned on, the printer does not underline 90 clockwise-rotated characters. Double-width and double-height commands in 90rotation mode enlarge characters in the opposite directions from double-height and double- width commands in normal mode.

  • Page 18: Esc T N

    0 n 255 [Range] [Description] Prints the data in the print buffer and feeds n lines. This command sets the print starting position to the beginning of the [Notes] line. This command does not affect the line spacing set by ESC 2 or ESC The maximum paper feed amount is 1016 mm (40 inches).

  • Page 19: Esc { N

    CP864 [Arabic] ISO-8859-1 [West Europe] CP737 [Greek] WCP1257 [Baltic] [Default] n = 0 [Reference] Character Code Tables ESC { n [Name] Turns on/off upside-down printing mode [Format] ASCII Decimal 0 n 255 [Range] [Description] Turns upside-down printing mode on or off. When the LSB of n is 0, upside-down printing mode is turned off.

  • Page 20: Fs Q N [Xl Xh Yl Yh D1

    1 n 255 [Range] 0 m 3 , 48 m 51 [Description] Prints NV bit image n using the mode specified by m. Mode Vertical Dot Density Horizontal Dot Density 0，48 Normal 203.2 dpi 203.2 dpi 1，49 Double-width 203.2 dpi 101.6 dpi 2，50 Double-height...
  • Page 21 0 yL 255 0 yL 1 (when 1 (yL yH 256) 288 0 d 255 xH 256) (yL yH 256) 8 k = (x Total defined data area = 192K bytes [Description] Define the NV bit image specified by n. n specifies the number of the defined NV bit image.
  • Page 22 this time, NV bit images that haven’t been defined are disabled (undefined), but any NV bit images before that are enabled. The d indicates the definition data. In data (d) a 1 bit specifies a dot to be printed and a 0 bit specifies a dot not to be printed. This command defines n as the number of a NV bit image.

  • Page 23: Gs ! N

    GS ! [Name] Select character size [Format] ASCII 21 n Decimal 33 n 0 n 255 [Range] (1 vertical number of times 8, 1 horizontal number of times 8)

  • Page 24: Gs X Y D1

    [Description] Selects the character height using bits 0 to 2 and selects the character width using bits 4 to 7, as follows: Off/On Decimal Function Character height selection. See Table 2. Character width selection. See Table 1. Table 1 Table 2 Character Width Selection Character Height Selection Decimal...

  • Page 25: Gs / M

    d1...d(x×y ×8) 2A x Decimal 42 x d1 ...d(x×y×8) 1 x 255 [Range] 1 y 48 (where x×y 1536) 0 d 255 [Description] Defines a downloaded bit image using the number of dots specified by x and y. x specifies the number of dots in the horizontal direction. y specifies the number of dots in the vertical direction.

  • Page 26: Gs B N

    Decimal 0 m 3, 48 m 51 [Range] [Description] Prints a downloaded bit image using the mode specified by m. m selects a mode from the table below: Mode Vertical Dot Density Horizontal Dot Density 0, 48 Normal 203.2 dpi 203.2 dpi 1, 49 Double-width...

  • Page 27: Gs F N

    GS f n [Name] Select font for Human Readable Interpretation (HRI) characters [Format] ASCII Decimal n 1, 48, 49 [Range] [Description] Selects a font for the HRI characters used when printing a bar code. n selects a font from the following table: Font 0,48 Font A (12×24)

  • Page 28: Gs H N

    Decimal 29 0 nL 255 [Range] 0 nH 255 [Description] Sets the left margin using nL and nH. The left margin is set to [(nL + nH ×256) ×0.125 mm]. This command is effective only when processed at the beginning of [Notes] the line in standard mode.
  • Page 29 11 k 12 48 d 57 ① UPC-A 11 k 12 48 d 57 UPC-E 12 k 13 48 d 57 JAN13 (EAN13) 7 k 8 48 d 57 JAN 8 (EAN8) 1 k′ 48 d 57, 65 d 90, 32, CODE39 36, 37, 43, 45, 46, 47 1 k (even number)
  • Page 30 paper. This command feeds as much paper as is required to print the bar code,regardless of the line spacing specified by ESC 2 or ESC 3. This command is enabled only when no data exists in the print buffer.When data exists in the print buffer, the printer processes the datafollowing m as normal data.
  • Page 31 ②Special characters are defined by combining two characters "{" and one character. The ASCII character "{" is defined by transmitting "{" twice consecutively. Transmit data Specific character ASCII Decimal SHIFT 7B, 53 123,83 CODE A 7B, 41 123,65 CODE B 7B,42 123,66 CODE C...

  • Page 32: ① Gs K M V R D1

    ① GS k m v r d1...dk NUL② GS k m v r nL nH d1...dn [Name] Print QR CODE ①m=32 [Format] ASCII m v r d1...dk m v r d1...dk Decimal m v r d1...dk ②m=97 ASCII m v r nL nH d1...dn m v r nL nH d1...dn...
  • Page 33 0 m 3, 48 m 51 [Range] 0 xL 255 0 xH 255 where 1 (xL + xH×256) 48 0 yL 255 0 yH 8 where 1 (yL + yH×256) 4095 0 d 255  k = (xL + xH×256) ×(yL + yH× 256) (k ≠0) [Description] Selects raster bit-image mode.

  • Page 34: Gs W N

    GS w n [Name] Set bar code width [Format] ASCII Decimal 2 n 6 [Range] [Description] Sets the horizontal size of the bar code. n specifies the bar code width as follows: Module Width (mm) for Binary-level Bar Code Multi-level Bar Code Thin Element Width (mm) Thick Element Width(mm) 0.250...

  • Page 35: Fs ! N

    coordinate; xkeL : The K line end point is the low order of horizontal coordinate; xkeH : The K line end point is the high order of horizontal coordinate; Coordinates starting from the most left of printing area.The minimum is 0, maximum is 383, that xkeL + xkeH * 256 maximum is 383.

  • Page 36: Esc = N

    FS & [Name] Select Kanji character mode [Format] ASCII & Decimal [Description] Selects Kanji character mode. [Notes] For Kanji model: When the Kanji character mode is selected, the printer processes all Kanji code as two bytes each. Kanji codes are processed in the order of the first byte and second byte.

  • Page 37: Fs 2 C1 C2 D1

    FS 2 c1 c2 d1...dk [Name] Define user-defined Kanji characters [Format] ASCII d1...dk d1...dk Decimal d1...dk [Range] c1 and c2 indicate character codes for the defined characters. Model type A1H c2  c1 = FEH Chinese kanji supporting model 0 d 255 k = 32 (slip), k = 72 (paper roll) [Description] Defines user-defined Kanji characters for the character codes...
