Page 1: Technical Manual

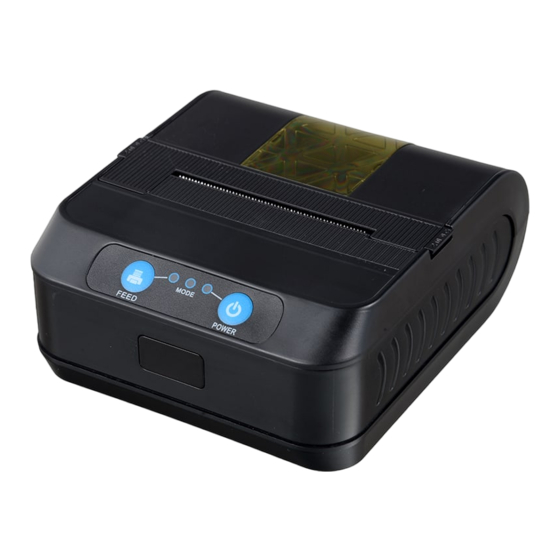

PDM-02 Technical Manual 58mm Portable Dot matrix Printer PDM-02 Technical Manual... -
Page 2: Table Of Contents
PDM-02 Technical Manual 一、Instruction ........................3 1.1 Instruction List.......................3 1.2 Detail instruction ....................4 ① Printing and paper feed instruction..............4 Printing and paper feed ..............4 Enter ....................4 Printing and paper feed N dots ............5 Printing and paper feed N lines............5 ②Print setup instructions ..................6 Set the line spacing for n points ............6... -
Page 3: 一、Instruction
PDM-02 Technical Manual 一、Instruction 1.1 Instruction List Printing and paper feed Enter ESC J Printing and paper feed N dots Instructions of Print and paper feed ESC d Printing and paper feed N lines ESC 3 Set the line spacing for N points... -
Page 4: 1.2 Detail Instruction
PDM-02 Technical Manual GS h Set a dimensional barcode height GS w Set a dimensional barcode width GS k Print one dimension code GS k Print the qr code Qr code printed instructions Print the line segment Curve printing instruction... -
Page 5: Printing And Paper Feed N Dots
PDM-02 Technical Manual Functional Print position adjustment to starting position, the bank is not a newline description Parameter range default Support model After return instruction, the new print data with bitwise "or" cover to print attention the original data in the cache... -
Page 6: ②Print Setup Instructions
PDM-02 Technical Manual Support model attention The command to set the print starting position is the starting point Use example 1b 40 30 31 32 1b 64 01 ②Print setup instructions Set the line spacing for n points Command Set the line spacing for n points Name ：ESC 3 n... -
Page 7: Set The Print Position
PDM-02 Technical Manual Functional Set the line spacing to the default of 33 points description Parameter range default Support model Line spacing indicated detailed look at the ESC 3 instructions If set the line spacing is less than the maximum character height in a... -
Page 8: Set The Character Print Mode
PDM-02 Technical Manual Parameter 0 ≤ nL ≤ 255，0 ≤ nH ≤ 255 range default Support model The command is valid only in a line of the starting position of the handle. Legend schematic is as follows: attention If set outside the printable area, use the maximum printing unit... -
Page 9: Set The Character Size
PDM-02 Technical Manual Support model The instruction for Chinese fonts and foreign fonts are effective attention When the ESC @, printer after reset, power outages, the setting of this directive 1B 40 1B 21 01 30 31 32 0D 0A... -
Page 10: Set, Remove The White Print
PDM-02 Technical Manual This directive except the HRI characters of Chinese fonts and foreign fonts are effective attention When the ESC @, printer after reset, power outages, the setting of this directive 1b 40 1d 21 11 Use example 30 31 32 0d 0a... -
Page 11: Set, Remove The Underline
PDM-02 Technical Manual Set, remove the underline Command Set, remove the underline Name ：ESC - n ASCII Command Decimal ：27 45 n Code Hexadecimal ：1B 2D n Based on the value of n, set/remove the underline mode: Functional function description... -
Page 12: Set The Print Alignment
PDM-02 Technical Manual description When n equals 0 or 48, lifting 90 ° rotation printing. When n equals 1 or 49, set up 90 ° rotation printing. 0 ≤ n ≤ 1， 48 ≤ n ≤ 49 Parameter range default... -
Page 13: Set The Chinese Character Pattern
PDM-02 Technical Manual Set the Chinese character pattern Command Set the Chinese character pattern Name ：FS & ASCII Command Decimal ：28 38 Code Hexadecimal ：1C 26 Functional Select Chinese pattern description Parameter range default Support model Choosing model of Chinese characters, the printer handle all Chinese characters code, every time two bytes. -
Page 14: Define The User Custom Character Set
PDM-02 Technical Manual ：ESC % n ASCII Command Decimal ：27 37 n Code Hexadecimal ：1B 25 n Choose or cancel the user custom character set Functional When n the least significant bit is 0, cancel the user-defined character description set. - Page 15 PDM-02 Technical Manual Set to print the corresponding to 1 or not print points corresponding to 0. The command for each font definition different user-defined character pattern. Use the ESC! Set the font. The user-defined character and downlink bitmap is defined at the same time.
-
Page 16: Cancel The User-Defined Character
PDM-02 Technical Manual ①y = 2 1B 40 1b 26 02 20 20 06 FF FF FF FF FF FF FF FF FF FF FF FF 1b 25 01 20 20 0D 0A 1b 3f 20 30 20 30 20 0d 0a ②y = 3... -
Page 17: Select The Character Code Page
PDM-02 Technical Manual Decimal ：27 82 n Code Hexadecimal ：1B 52 n According to the following table to choose n the value of the international character sets: Character sets France Germany England Denmark Functional Sweden description Italy Spain I Japan... - Page 18 PDM-02 Technical Manual KataKana [katakana] CP850 [multi-language] CP860 [portugal] CP863 [Canada French] CP865 [Nor-Europe] WCP1251 [Slavic] CP866 Slavic 2 MIK[Slavic/Bulgaria] CP755 [Eastern Europe, Latvia 2] [Iran, Persia ] reserve reserve reserve reserve CP862 [Hebrew] ＷCP1252 [Latin 1] WCP1253 [Greece] CP852 [Latin 2]...
-
Page 19: ③Tab Order
PDM-02 Technical Manual sea] ISO-8859-5[Slavic] ISO-8859-6[Arabic] ISO-8859-7[Greek] ISO-8859-8[Hebrew] ISO-8859-9[Turkish] ISO-8859-15[ Latin 9] [Thai 2] CP856 Cp874 GBK2312 0 ≤ n ≤ 255 Parameter range default Support model attention 1B 40 1C 2E 1B 74 00 80 81 82 83 84 85 86 87 88 89 8A 8B 8C 8D 8E 8F 90 91 92 93 94 95 96... - Page 20 PDM-02 Technical Manual Support model TAB position are set in the ESC D If the TAB position is not set no horizontal TAB position (the default), the instruction will be treated as LF instructions attention If the TAB position beyond the print area, coordinates will be shifted to the...
-
Page 21: ④One Dimensional Barcode Printing Instructions
PDM-02 Technical Manual Maximum 16 TAB position setting Using this command will cancel the previous TAB position Settings K is used to signal, no transport Transmission [d] k when you meet the NULL as the end If the dk is less than or equal to dk - 1, as the end, the remaining data as a... -
Page 22: Set A Dimensional Barcode Height
PDM-02 Technical Manual directive Use example Set a dimensional barcode height Command Set a dimensional barcode height Name ：GS h n ASCII Command ：29 104 n Decimal Code Hexadecimal ：1D 68 n Set the height of the bar code to n points, the parameter n meaning is as... -
Page 23: One-Dimensional Bar Code Printing
PDM-02 Technical Manual default n = 2 Support model When the ESC @, printer after reset, power outages, the setting of this attention directive Use example one-dimensional bar code Printing Command Name ：GS k m [d]k NUL (A) ASCII Decimal ：29 107 m [d]k NUL Hexadecimal ：1D 6B m [d]k NUL... - Page 24 PDM-02 Technical Manual 42 ， 43 ， 45 ， 46，47 2≤k≤255 chan (Interlea 48≤d≤57 （ geab even ved 2 of number ） 48≤d≤57， 65≤d≤68， 97≤d≤100， CODAB chan d = 36， 43， 45， 0~9， A~D， a~d 1≤k geab 46，47，58 $，+，-，.，/，: (NW-7) (65≤d1≤68，...
- Page 25 PDM-02 Technical Manual d = 36， 43， 45， 46，47，58 (65≤d1≤68， 65≤dk≤68， 97≤d1≤100， 97≤dk≤100) CODE9 1≤n≤255 0≤d≤127 00H~7FH able 00H~7FH 0≤d≤127 CODE1 1≤n≤255 193 ， C1H~C4H(FN able 194,195,196 00H~7FH 0≤d≤127 UCC/EA 1≤n≤255 193 ， C1H~C4H(FN N128 able 194,195,196 (A) 0 ≤ m ≤ 6 Parameter (B) 65 ≤...
- Page 26 PDM-02 Technical Manual Regardless of the input data length is 6, 7, 8, 11 or 12, barcode readable characters (HRI) show only 6, for the data does not include the system character (NSC) and the check code; To transmit data and print the data transformation relationship is as...
- Page 27 PDM-02 Technical Manual user to manually add, scope for "A" ~ "D" or "A" ~ "D" Check digit does not automatically calculate and add Print CODE93 (m = 72), the need to pay attention to: Starting character and terminators automatically inserted...
-
Page 28: ⑤Status Inquiry Instruction
PDM-02 Technical Manual When using connection structure, the middle need to insert FNC1 (C1H Decimal = 193) input example is as follows: GS k 74 18 "019501234567890*" 193 "029501234567890*" When set (HRI) print barcode readable characters, control characters will replace with a space, and FNC1 ~ FNC4 will be removed... -
Page 29: Real-Time Transmission State
PDM-02 Technical Manual When data generated in the print buffer, execute the command.So between receives the commands and transmit state, there may be a time interval, it depends on the state of the receive buffer. Reply with GS a state of activated automatically when the ASB, sent by GS r state and ASB state must be separate. - Page 30 PDM-02 Technical Manual • printer return immediately after receiving the command associated state. • Try not to plug in, the command sequence of two or more bytes of command. • even if the printer is ESC = (peripherals) command set to ban, the command is still valid.
-
Page 31: ⑥Other Instruction
PDM-02 Technical Manual n=3：Transmission error status Hexadecim decimal Function Fixed 0 Fixed 1 undefined Cutter has no error Cutter has error Fixed 1 No unrecoverable error Have unrecoverable error The print head temperature and voltage is normal Beyond the scope of the print head... -
Page 32: Print Self-Test Page
PDM-02 Technical Manual Functional Initialize printer the following contents: description Clear print cache The parameters to restore the default values Parameter range default Support model attention Use example Print self-test page Command Print self-test page Name ：DC2 T ASCII Command Decimal ：18 94...
