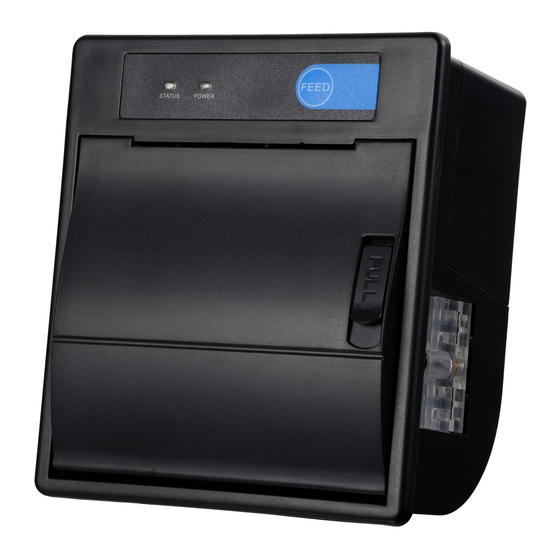

Cashino EP-260C-24V User Manual

Micro panel printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EP-260C-24V Micro panel printer
Draft：
Audit：
Standardize： Liu Zhonghua 2017.04.09
Authorize：
Tel: 0592-5517253 Fax: 0592-5231815
Company: Xiamen Cashino Technology Co., Ltd.
Address: 4/F,No.318,Tongji South Road, Jimei District,Xiamen,China.361021
The manual is subject to change without further notice. Please contact Xiamen Cashino
Technology Co., Ltd. directly for the latest
User Manual
Lin Xiaopeng 2017.04.06
Hu Riyu 2017.04.08
Wang Huanyong 2017.04.10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP-260C-24V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cashino EP-260C-24V

Summary of Contents for Cashino EP-260C-24V

  • Page 1 Authorize： Wang Huanyong 2017.04.10 Tel: 0592-5517253 Fax: 0592-5231815 Company: Xiamen Cashino Technology Co., Ltd. Address: 4/F,No.318,Tongji South Road, Jimei District,Xiamen,China.361021 The manual is subject to change without further notice. Please contact Xiamen Cashino Technology Co., Ltd. directly for the latest...
  • Page 2 Revision Record Number Preparation / Date Content of Modify of the Review modification Page 20170406 First draft Lin Xiaopeng Hu Riyu 20180409 Product specification Zhu Chunyan Hu Riyu 20180418 Add “Reset the cutter” Zhu Chunyan Hu Riyu Modify Installation 20180523 Zhu Chunyan Hu Riyu port size...

  • Page 3: Table Of Contents

    Contents 1.Overview..................................5 1.1 Production feature............................5 1.2 Specification...............................5 1.3 Appearance and dimension......................... 6 1.3.1 Appearance............................6 1.3.2 Dimension..............................7 2.Connector pin specification..........................7 3.Basic Operation..............................8 3.1 Print self-test page............................8 3.2 Control Panel..............................8 3.3 Printer Installation............................10 3.4 Paper Loading..............................12 3.5 Reset the cutter.............................
  • Page 4 Select、cancel user customized characters..................24 Define user customized characters....................... 24 Cancel user customized characters.......................27 Selecting international character set....................27 Select character code..........................28 ③Graphic printing command........................31 Fill Graphics vertical module data......................31 Print Graphics horizontal module data....................33 Define downloaded bitmap........................34 Print downloaded bitmap.........................36 Define NV bitmap............................

  • Page 5: Overview

    1.Overview This is a panel thermal printer with cutter which is light,durable,and keeping long time to print.It is widely used in medical equipment,measure equipment,safety equipment , Analytical instruments,instruments and so on. 1.1 Production feature ※ Smart appearance ※ easy loading paper ※...

  • Page 6: Appearance And Dimension

    Outline Dimension (WxLxH) 115.5*102*66mm Installation port size(WxL) 96.3*110mm Insert Depth 56mm Physical Color White/Black Operating temperature 0°C~50°C Operating humidity 20%~85%RH Environm ental Storage temperature -20°C~60°C conditions Storage humidity 5%~90%RH 1.3 Appearance and dimension 1.3.1 Appearance...

  • Page 7: Dimension

    1.3.2 Dimension 2.Connector pin specification Serial（RS232/TTL）XH4/2.54mm...

  • Page 8: Basic Operation

    Terminal No. Signal Name Description Request to send (Data terminal ready) Transmission data Receive data Ground Power XH02/2.54mm Terminal No. Signal Name Description Power supply Ground MiniUSB Terminal No. Signal Name Description VUSB Power supply Data line negative Data line positive Ground 3.Basic Operation 3.1 Print self-test page...
  • Page 9 Status LED indicator Feed button Power LED indicator 1.【Feed button】 Press this button to feed the paper. If you keep pressing this button, the paper will be continue to feeding 2.【Statue LED indicator】 When printer is out of paper, cutter error, print head overheating and so on , the status lights always bright.

  • Page 10: Printer Installation

    3.3 Printer Installation Size: 96.3*110 Step 1.Embed the printer into corresponding mounting hole Step 2: Turn the printer cover and turn the screws on both sides clockwise until the screws are locked so that the product is fixed OK...
  • Page 11 Noted：On the process of screw clockwise rotation, the lock will move outward at the same time upward, until the panel is pressed to lock tight。 Step 3：Close printer cover and it’s ok...

  • Page 12: Paper Loading

    3.4 Paper Loading 1. Open the printer cover； 2. The paper roll is on the reverse side； 3. Close the printer cover,the paper is slightly exposed. 3.5 Reset the cutter Method 1: Reset the cutter by turning it off and then on, and quickly eliminate the ca rd cutter Method 2: Reset the cutter by repeatedly pulling the key of opening cover , forcibly re moving the cutter...
  • Page 13 ESC $ Set printing position GS L nL nH Set the amount of left margin Printing-set Command ESC ! Set character printing method GS ! n Set character printing method GS B n Set、remove white printing ESC - n Set、remove underline ESC V n Set、remove 90°revolving printing ESC a...

  • Page 14: Commands Details

    GS r n Transmission status Status Inquire Comman DLE EOT n Real-time transmission status ESC @ Printer reset Other Commands DC2 T Printing self-test page 4.2 Commands details ①Printing and paper feed commands Printing and paper feed Name print and paper feed ASCII ：LF Code DEC ：10...

  • Page 15: Print And Paper Feed Dots

    Print and paper feed dots Name Print and paper feed n dots ASCII ：ESC J n Code DEC ：27 74 n HEX ：1B 4A n Function Print the buffer content and paper feed Range 0 ≤ n ≤ 255 Default None Paper feed n dots when printing buffer is empty.

  • Page 16: Set Line Space To Default

    Default n = 33 Line space as below: If the line space setted is less than the highest character i Notes n that line,then this line space is equal to the height of the highest character. If ESC2,ESC@,reset the printer, the printer blackout,and the line space turns to default.

  • Page 17: Set Print Position

    Set print position Name Set print position ASCII ：ESC $ nL nH Code DEC ：27 36 nL nH HEX ：1B 24 nL nH Function Set left side blank area as（nL + nH × 256）dots 0 ≤ nL ≤ 255 Range 0 ≤...

  • Page 18: Set Character Printing Method

    Use the maximum value of the printable unit,if the setting is beyond the printable area. 1b 40 1d 4c 08 00 Example 30 31 32 0d 0a 30 31 32 0d 0a Set character printing method Name Set character printing method ASCII ：ESC ! n Code DEC ：27 33 n...

  • Page 19: Set Character Size

    1B 40 1B 21 10 30 31 32 0D 0A 1B 40 1B 21 20 30 31 32 0D 0A 1B 40 1B 21 40 30 31 32 0D 0A 1B 40 1B 21 80 30 31 32 0D 0A Set character size Name Set character size...

  • Page 20: Set、Remove White Printing

    except for HRI character. The command setting is disable when ESC@, printer reset or power off. 1b 40 1d 21 11 Example 30 31 32 0d 0a 30 31 32 0d 0a Set、remove white printing Name Set、 remove white printing ASCII ：GS B n Code ：29 66 n...

  • Page 21: Set、Remove Underline

    Set、remove underline Name Set、 remove underline ASCII ：ESC - n Code ：27 45 n ：1B 2D n Set / remove underline mode,based on the value of n as foll Functions 0, 48 Remove underline mode Function 1, 49 Set underline mode(1 dot coar 2, 50 Set underline mode(2 dot coar Range...

  • Page 22: Set、Remove 90°Revolving Printing

    30 31 32 0d 0a 1b 40 1b 2d 00 30 31 32 0d 0a Set、remove 90°revolving printing Name Set 、 remove 90°revolving printing ASCII ：ESC V n Code ：27 86 n ：1B 56 n Set or remove 90° revolving printing Function When n is equal to 0 or 48,remove 90°revolving printing.

  • Page 23: Set Chinese Mode

    0, 48 left 1, 49 middle 2, 50 right Range 0 ≤ n ≤ 2 or 48 ≤ n ≤ 50 Default n = 0 This command setting is disabled when ESC@,printer resets Notes or power off. 1B 40 1B 61 02 30 31 32 0D 0A 1B 40 1B 61 01 Example...

  • Page 24: Select、Cancel User Customized Characters

    HEX ：1C 2E Function Exit Chinese character mode，cancel Chinese character mode Range None Default None Notes None Example None Select、cancel user customized characters Name Select 、cancel user customized characters ASCII ：ESC % n Code ：27 37 n ：1B 25 n Select 、cancel user customized characters Function When n LSB is 0，delete customized characters...
  • Page 25 If choosing Font 6*12，y = 2， 0 ≤ x ≤ 6 If choosing Font 12*24，y= 3， 0 ≤ x ≤ 12 32 ≤ c1 ≤ c2 ≤ 126 0 ≤ d1 ... d(y*xk) ≤255 Default None Definable character code range:from<20>H to <7E>H ASCII c ode(95 characters)。...
  • Page 26 d1= <0F>H d4 = <30>H d7 = <40>H ..d2 = <03>H d5 = <80>H d8 = <40>H ..d3 = <00>H d6 =<00>H d9 = <20>H ..①y = 2 1B 40 1b 26 02 20 20 06 FF FF FF FF FF FF FF FF FF FF FF FF 1b 25 01...

  • Page 27: Cancel User Customized Characters

    1b 26 03 20 20 06 FF FF FF FF FF FF FF FF FF FF FF FF FF F F FF FF FF FF FF 1b 25 01 20 20 0D 0A 1b 3f 20 30 20 30 20 0d 0a Cancel user customized characters Name Cancel user customized characters...

  • Page 28: Select Character Code

    France Germany Denmark I Sweden Italy Spain I Japan Norway Denmark II Spain II Latin America Korea Slovenia China Range 0 ≤ n ≤ 15 Default Notes None 1B 40 1B 52 00 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 3 2 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 40 41 42 43 44 Example 45 46 47 48 49 4A 4B 4C 4D 4E 4F 50 51 52 53 54 55 56...
  • Page 29 CP850 [Multilingual] CP860 [Portuguese] CP863 [Canadian-French] CP865 [Nordic] WCP1251 [Cyrillic] CP866 Cyrilliec #2 MIK [Cyrillic /Bulgarian] CP755 [East Europe，Latvian 2] Iran Reserve Reserve Reserve Reserve CP862 [Hebrew] ＷCP1252 Latin I WCP1253 [Greek] CP852 [Latina 2] CP858 Multilingual Latin Ⅰ+Euro) Iran II Latvian CP864 [Arabic] ISO-8859-1 [West Europe]...
  • Page 30 ISO-8859-2[Latin 2] ISO-8859-3[Latin 3] ISO-8859-4[Baltic] ISO-8859-5[Cyrillic] ISO-8859-6[Arabic] ISO-8859-7[Greek] ISO-8859-8[Hebrew] ISO-8859-9[Turkish] ISO-8859-15 [Latin 9] Thai2 CP856 Cp874 252 CP932 SHIFT_JIS 253 UNICODE UCS-2 254 BIG5 255 GBK Range 0 ≤ n ≤ 255 Default Notes None 1B 40 1C 2E 1B 74 00 80 81 82 83 84 85 86 87 88 89 8A 8B 8C 8D 8E 8F 90 91 9 2 93 94 95 96 97 98 9A 9B 9C 9D 9E 9F A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF B0 B1 B2 B3 B4 B5 B...

  • Page 31: ③Graphic Printing Command

    ③Graphic printing command Fill Graphics vertical module data Name Fill Graphics vertical module data ASCII ：ESC * m Hl Hh [d]k Code ：27 42 m Hl Hh [d]k HEX ：1B 2A m Hl Hh [d]k Print vertical module graphic data,the parameters are as belo m is bit map format: m mode horizontal scale vertical scale...
  • Page 32 The relations between Bit map data and printing effects is as below: The command fills only the printing buffer, graphics printing can start only after receiving the printing commands.Printin g buffer will be cleared after graphic printing. If you need to print higher graphics,you can divide it int o several sections which has 8（m = 0、1）or 24（m = 32、33）dots graphics to print.

  • Page 33: Print Graphics Horizontal Module Data

    Print Graphics horizontal module data Name Print Graphics horizontal module data ASCII ：GS v 0 Code ：29 118 48 m xL xH yL yH [d]k ：1D 76 30 m xL xH yL yH [d]k Print horizontal module graphic data,the parameters are as b elow: m as bitmap method：...

  • Page 34: Define Downloaded Bitmap

    [d] k corresponding bit is 1,which means that this bit can p rint. While it is 0,it means that this bit can not print. If the horizontal bytes exceed printing area, then the exceedi ng part will be ignored. The paper feeds accordingly to the image size when this co mmanding is using, not influenced by the setting of ESC 2, ESC 3 line space.
  • Page 35 1 ≤ x ≤ 255 Parameter 1 ≤ y ≤ 48 range x*y ≤ 1536 0 ≤ d ≤ 255 Default None If x*y is out of the specified range, this command will be forbidden. The d indicates bitmap data. Data (d) specifies the printi ng bit as 1 and the not printing bit as 0.

  • Page 36: Print Downloaded Bitmap

    FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 1D 2F 00 Print downloaded bitmap Name Print downloaded bitmap ASCII ：GS / m Code ：29 47 m HEX ：1D 2F m...

  • Page 37: Define Nv Bitmap

    Define NV bitmap Name Define NV bitmap ASCII ：FS q n [xL xH yL yH d1...dk]1...[xL xH yL yH d1...d Code DEC ：28 113 n [xL xH yL yH d1...dk]1...[xL xH yL yH d1...dk] HEX ：1C 71 n [xL xH yL yH d1...dk]1...[xL xH yL yH d1...dk]n Define the NV bitmap using the specified n.
  • Page 38 fore, user-defined characters, downloaded bitmaps should be defined only after completing this command. The printer cle ars the receiving and printing buffers and resets the printer t o the mode that workable when power on. (hardware reset i nterface is not supported ) This command cancels all NV bitmaps that have already b een defined by this command.
  • Page 39 The d indicates the definition data. In data (d) a 1 bit sp ecifies a dot to be printed and a 0 bit specifies a dot not to be printed. This command defines n as the number of a NV bitmap. Numbers rise in order from NV bitmap 01H.
  • Page 40 1B 40 1C 71 01 03 00 03 00 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF Example FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF...

  • Page 41: Print Nv Bitmap

    Print NV bitmap Name Print NV bitmap ASCII ：FS p n m Code ：28 112 n m HEX ：1C 70 n m Print NV bitmap n using the mode specified by m. Mode 0, 4 Normal 1, 4 Double-width Function 2, 5 Double-height 3, 5...

  • Page 42: ④Tab Commands

    printing mode. If the downloaded bit-image to be printed exceeds one l ine, the excess data is not printed. This command feeds dots (for the height n of the NV bi tmap) in normal and double-width modes, and (for the heig ht n 2 of the NV bitmap) in double height and quadrupl e modes, regardless of the line space specified by ESC 2 or...
  • Page 43 ASCII ：ESC D [d]k NUL Code ：27 68 [d]k 0 HEX ：1B 44 [d]k 00 Set horizontal tab position, parameter meaning as below: Function d1 ... dk：horizontal position,in 8 as unit,null as the terminato Parameter XX58：1 ≤ d ≤ 46（d1 <d2 < …… dk ，1 ≤ k ≤ 16） range XX80：1 ≤...

  • Page 44: ⑤One-Dimension Bar Code Command

    ⑤One-dimension bar code command 1D bar code readable character(HRI) print position setting Name 1D bar code readable character(HRI)print position setting ASCII ：GS H n Code ：29 72 n HEX ：1D 48 n Set 1D bar code readable character(HRI)print position,n para meter meaning as below：...

  • Page 45: Bar Code Height Setting

    Defaults n = 0 Notes None Example None 1D bar code height setting Name 1D bar code height setting ASCII ：GS h n Code ：29 104 n DEX ：1D 68 n Parameter n specifies the height of a bar code in dots： Function Parameter 1 ≤...

  • Page 46: Bar Code Printing

    Parameter 1 ≤ n ≤ 6 range Defaults n = 2 The command setting will be valid after ESC @、 printer reset、 Noted power off Example None 1D bar code printing Name 1D bar code printing (A) ASCII ：GS k m [d]k NUL ：29 107 m [d]k NUL Hex ：1D 6B m [d]k NUL Code...
  • Page 47 d1 = 48 ] JAN13 fixe (EAN1 k = 12，13 48≤d≤57 JAN8 fixe k = 7，8 48≤d≤57 (EAN8) 48≤d≤57， 0~9，A~Z 65≤d≤90， CODE3 1≤k SP，$，%，*， d = 32，36， able +，-，.，/ 37，42，43， 45，46，47 2≤k≤255 (Interle （even nu 48≤d≤57 aved 2 able mbers） of 5) 48≤d≤57，...
  • Page 48 48≤d≤57 fixe 6≤n≤8， [when n = UPC-E n = 11，12 7,8,11,12， d1 = 48 ] JAN13 fixe (EAN1 n = 12，13 48≤d≤57 JAN8 fixe n = 7，8 48≤d≤57 (EAN8) 48≤d≤57， 0~9，A~Z 65≤d≤90， CODE3 1≤n SP，$，%，*， d = 32，36， +，-，.，/ 37，42，43， 45，46，47 2≤n≤255 (Interle...
  • Page 49 4,195,196 c h a 00H~7FH 0≤d≤127 UCC/E 1≤n≤255 C1H~C4H(F d = 193，19 AN128 a b l 4,195,196 Parameter (A) 0 ≤ m ≤ 6 range (B) 65 ≤ m ≤ 74 Defaults None If the bar code width exceed the printable area,the printer d oes not perform barcode printing Paper feed as needed when the command is carried out,that not affected by ESC2,ESC3 line space settings,and do not in...
  • Page 50 length is 6 The first system character (NSC) d1 must be 0 when the data length is 7,8,11 and 12. Whatever the data length is 6,7,8,11 and 12,the check bit inserted or corrected automatically Whatever the input data length is 6,7,8,11,and 12,the bar code readable character(HRI) just show 6 as data,but exclude d system character (NSC) and check code;...
  • Page 51 automatically When print CODE39(m = 4 or 69),please pay attention as fol lowing: When d1 or dn are not Initial character/terminator ”*”, encoder is automatically inserted ”*” When middle of the data encounter ”*”, the encoder r egard it as terminator, the other data as the normal data; The check bit could not calculate and add automatically When print ITF25(m = 5 or 70), please pay attention as follo wing:...
  • Page 52 The check bit could calculate and add automatically When barcode readable character(HRI) is set to print,the control character and FNC1~FNC4 will be replaced with spac When print EAN128(m = 74),please pay attention as followin Basic construction as below: Check Initial c Check Data p Terminat...

  • Page 53: ⑥Status Querying Commands

    90*" When user use the connection structure,need to inser t FNC1(C1H”Decimal=193”) in the middle.The input exampl e as following: GS k 74 18 "019501234567890*" 193 "029501234567890* " When barcode readable character(HRI) is set to print,the control character will be replaced with space,then cancel FN C1~FNC4 1b 40 1d 48 02 1d 6b 41 0c 31 32 33 34 35 36 37 38 39 30 31 32...
  • Page 54 N=4:transmit paper sensor status Range 1 ≤ n ≤ 4 Default None Support •Printer return to the relative status immediately after receivi ng the command • this command try not to put in command list between 2 o r more bite . Though printer being forbid by ESC=,this command still effec tive.
  • Page 55 The paper has been torn a The paper hasn’t been tor n away n=2：transit off-line status Hexadeci decimalis Function 0 00 Fixed to be 0 1 02 Fixed to be 1 0 00 Turn off upper cover 1 04 Open upper cover 0 00 Not press feed key 1 08...
  • Page 56 No cutter error Cutter error Fixed to be 1 No unrecoverable error Unrecoverableerroe Printer head tempand volt age are normal Printer head temp.and volt age are exceed Fexed to be 0 Unrecoverable error: abnormal input voltage Automatic recovery error: refers to the printing head overhea ting error.

  • Page 57: ⑦Printing Qr Code

    ⑦Printing QR code Mode type of QR code Name Mode type of QR code ASCII ：GS ( pL pH cn fn n Code Decimal ：29 107 pL pH cn fn n Hexadecimal ：1D 28 6b pL pH cn fn n Setting mode type of two-dimension bar code to [n dot ×...

  • Page 58: Store Qr Code Data To Qr Code Data Buffer

    correction Error correction level Error correction level Error correction level Error correction level Example None Name Setting error correction level of QR code Store QR code data to QR code data buffer Name Store QR code data to QR code data buffer ASCII ：GS ( pL pH cn fn m d1…dk...

  • Page 59: Setting Qr Code Graph Information

    ASCII ：GS ( pL pH cn fn m Code ：29 107 pL pH cn fn m HEX ：1D 28 6b pL pH cn fn m Function Printing QR code pL=3, pH=0 Parameter cn=49 range fn=81 m=48 Default None Printing QR code. Users must consider QR code graph space.
  • Page 60 Setting QR code graph information The detailed graph information is as follows: Transmit data Hexadeci Decimal Data type Header 1byte Flag 1byte Width 30H-39H 48-57 1-5byte Separator 1byte Height 30H-39H 48-57 1-5byte Function Separator 1byte Fixed Value 1byte Separator 1byte Other Inform 30H or 31 48 or 4...

  • Page 61: ⑧Printing Double Qr Code

    ⑧Printing double QR code Name Printing double QR code ASCII ：US Q m n p1H p1L l1H l1L ecc1 v1 d1…dn p2H p2L 12H l2L ecc2 v2 dk…dm ：27 81 m n p1H p1L l1H l1L ecc1 v1 d1…dn Code p2H p2L 12H l2L ecc2 v2 dk…dm ：1F 51 m n p1H p1L l1H l1L ecc1 v1 d1…dn p2H p2L 12H l2L ecc2 v2 dk…dm...

  • Page 62: ⑨Other Commands

    00 C0 00 0a 02 00 39 38 37 36 35 34 33 32 31 30 ⑨Other commands Printer reset Name Printer reset ASCII ：ESC @ Code Decimal ：27 64 ：1B 40 The ESC @ command initializes the printer as following： This command prints the data contained in the print buf Function fer, and initializes various setup items.

  • Page 63: Paper Cut

    paper cut Name paper cut ① ASCII ：GS V m Decimal ：29 86 m ：1D 56 m Code ② ASCII ：GS V m n Decimal ：29 86 m n ：1D 56 m n This command executes paper cutting The relationship between parameter m and the cut mode is as follows: Mode Function...

  • Page 64: Full Cut

    1D 56 01 30 30 30 0D 0A 1D 56 42 00 Full cut Name Full cut ASCII ：ESC i Code Decimal ：27 105 ：1B 69 Function Full cut mode Range None Default val None Notes None 1B 40 Example 30 30 30 0D 0A 1B 69 Partial cut...
