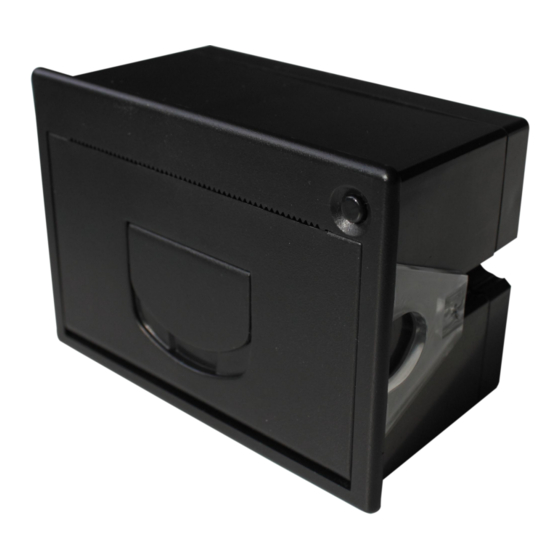

Cashino CSN-A4L User Manual

Panel printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Xiamen Cashino Technology Co.,Ltd
CSN-A4L Panel Printer'
Protocol：
Audit：
Standardize: Liu Zhonghua 2017.04.02
Authorize： Wang Huangyong 2017.04.13
Tel: 0592-5517253
Company Name: Xiamen Cashino Technology Co., Ltd.
Address:
4/F,No.318,Tongji South Road, Jimei District,Xiamen,China.361021
The manual is subject to change without further notice. Please contact Xiamen
Cashino Technology Co., Ltd. directly for the latest version.
www.csntek.cn
User Manual
Lin Xiaopeng 2017.03.29
Hu Riyu 2017.04.01
Fax: 0592-5231815
A4L User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSN-A4L and is the answer not in the manual?

Questions and answers

Related Manuals for Cashino CSN-A4L

Summary of Contents for Cashino CSN-A4L

  • Page 1 Authorize： Wang Huangyong 2017.04.13 Tel: 0592-5517253 Fax: 0592-5231815 Company Name: Xiamen Cashino Technology Co., Ltd. Address: 4/F,No.318,Tongji South Road, Jimei District,Xiamen,China.361021 The manual is subject to change without further notice. Please contact Xiamen Cashino Technology Co., Ltd. directly for the latest version. www.csntek.cn...
  • Page 2 A4L User Manual Xiamen Cashino Technology Co.,Ltd Specifications Revision Record Item Date Description Edited Page Design Review 20170329 The first draft Lin Xiaopeng Hu Riyu 20180523 Modify installation port size Zhu Chunyan Hu Riyu www.csntek.cn...

  • Page 3: Table Of Contents

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Content Content..............................3 1.General Specifications........................5 2. Features............................5 3.Product Specification........................6 3.1 Outline Dimention.........................6 4.Printer Parameters..........................7 5.PIN Defined Of Interfaces....................... 7 6.LED Indicator...........................8 7.Command Introduction........................8 7.1Command List........................8 7.2Commands details........................9 ①Printing and paper feed commands.................9 Printing and paper feed.......................
  • Page 4 A4L User Manual Xiamen Cashino Technology Co.,Ltd Horizontal tab........................30 Horizontal tab position setting..................31 ⑤One-dimension bar code command................32 1D bar code readable character(HRI) print position setting..........32 1D bar code height setting....................33 1D bar code width setting....................33 1D bar code printing......................34 ⑥Status querying Commands..................

  • Page 5: General Specifications

    A4L User Manual Xiamen Cashino Technology Co.,Ltd 1.General Specifications Name：Micro Panel printer Model：CSN-A4L Installation Port Size：77.3（W）*53.3（H）mm Insert Depth：43mm Application:Taxi meter print proposal, Recording Meter print proposal Self-service Print proposal,Ticket Machine print proposal Medical instrument print proposal,Weight Machine Print proposal Electric Instrument Print proposal,Test Instrument Print proposal 2.Features...

  • Page 6: Product Specification

    A4L User Manual Xiamen Cashino Technology Co.,Ltd 3.Product Specification 3.1 Outline Dimention www.csntek.cn...

  • Page 7: Printer Parameters

    A4L User Manual Xiamen Cashino Technology Co.,Ltd 4.Printer Parameters Printing Method Thermal Line Printing Speed Max:90mm/s Print Resolution 203dpi(8dots/mm) Effective Printing Width 48mm Character Set ASCII Code，GBK，BIG5.. Character Print font ANK：(9*17,12*24) Chinese：（24*24） Paper Type Thermal Paper Paper Width 57.5±0.5mm Paper spec.

  • Page 8: Led Indicator

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Power Signal name Direction Introduction 1.VH Input 5-9V or 12V 2.NC 3.GND Ground PIN Of Serial Port Signal name Direction Introduction 1.VH POWER 2.TXD Output Transmit Data 3.RXD Input Receive Data 4.DTR Data Termainal Ready 5.GND...

  • Page 9: Commands Details

    A4L User Manual Xiamen Cashino Technology Co.,Ltd ESC 2 Set default line space ESC $ Set print position GS L nL nH Set left margin amount ESC ! Set character printing method GS ! n Set character size GS B n...

  • Page 10: Enter

    A4L User Manual Xiamen Cashino Technology Co.,Ltd print position to initial position at the next line. Range None Default None Notes None Example None Enter Name Enter ASCII ：CR Code DEC ：13 HEX ：0D Function Adjust print position to initial position of the same line.

  • Page 11: Set Line Space As N Dots

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Set line space as n dots Name Set line space as n dots ASCII ：ESC 3 n Code DEC ：27 51 n HEX ：1B 33 n Function Set line space as n dots Range 0 ≤...

  • Page 12: Set The Left Margin

    A4L User Manual Xiamen Cashino Technology Co.,Ltd DEC ：27 36 nL nH HEX ：1B 24 nL nH Function Set left side blank area as（nL + nH × 256）dots 0 ≤ nL ≤ 255 Range 0 ≤ nH ≤ 255 Default None Set left side blank area as [(nL+nH*256)]*0.125mm]...

  • Page 13: Set Character Size

    A4L User Manual Xiamen Cashino Technology Co.,Ltd 0 Font Normal Small character 1 Undefined 2 Undefined 3 Bold Cancel Setting 4 Double hight Cancel Setting 5 Double width Cancel Setting 6 Undefined 7 Underline Cancel Setting Range None Default n = 0 The command is effective with Chinese and foreign languages.

  • Page 14: Set、Remove White Printing

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Range None Default n = 0 This command is effective with Chinese and other foreign languages, Notes except for HRI character. The command setting is disable when ESC@, printer reset or power off.

  • Page 15: Set、Remove 90°Revolving Printing

    A4L User Manual Xiamen Cashino Technology Co.,Ltd 1, 49 Set underline mode(1 dot coarse) 2, 50 Set underline mode(2 dot coarse) Range 0 ≤ n ≤ 2, 48 ≤ n ≤ 50 Default n = 0 Printer can print underline for all characters(including the space to the right of the character), except for the space set by HT.

  • Page 16: Set Printing Alignment

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Set printing alignment Name Set print alignment（Left, middle, right） ASCII ：ESC a n Code ：27 97 n ：1B 61 n Align all data in one line,the meaning of n value as below: mode...

  • Page 17: Select、Cancel User Customized Characters

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Default None Notes None Example None Select、cancel user customized characters Name Select 、cancel user customized characters ASCII ：ESC % n Code ：27 37 n ：1B 25 n Select 、cancel user customized characters Function When n LSB is 0，delete customized characters...
  • Page 18 A4L User Manual Xiamen Cashino Technology Co.,Ltd dots as 0. This command defines different customized characters for each type of font. Set font with ESC !. Customized characters and downlink bitmaps cannot be defined at the same time. When the command is executed, the downlink bitmap is cleared.

  • Page 19: Cancel User Customized Characters

    A4L User Manual Xiamen Cashino Technology Co.,Ltd ①y = 2 1B 40 1b 26 02 20 20 06 FF FF FF FF FF FF FF FF FF FF FF FF 1b 25 01 20 20 0D 0A 1b 3f 20...

  • Page 20: Select Character Code

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Denmark I Sweden Italy Spain I Japan Norway Denmark II Spain II Latin America Korea Slovenia China Range 0 ≤ n ≤ 15 Default Notes None 1B 40 1B 52 00 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 36 37 38...
  • Page 21 A4L User Manual Xiamen Cashino Technology Co.,Ltd Reserve CP862 [Hebrew] ＷCP1252 Latin I WCP1253 [Greek] CP852 [Latina 2] CP858 Multilingual Latin Ⅰ+Euro) Iran II Latvian CP864 [Arabic] ISO-8859-1 [West Europe] CP737 [Greek] WCP1257 [Baltic] Thai CP720[Arabic] CP855 CP857[Turkish] WCP1250[Central Europe]...

  • Page 22: ③Graphic Printing Command

    A4L User Manual Xiamen Cashino Technology Co.,Ltd 9A 9B 9C 9D 9E 9F A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF C0 C1 C2 C3 C4 C5...

  • Page 23: Print Graphics Horizontal Module Data

    A4L User Manual Xiamen Cashino Technology Co.,Ltd The command fills only the printing buffer, graphics printing can start only after receiving the printing commands.Printing buffer will be cleared after graphic printing. If you need to print higher graphics,you can divide it into several sections which has 8（m =...

  • Page 24: Define Downloaded Bitmap

    A4L User Manual Xiamen Cashino Technology Co.,Ltd xL、xH were selected as the data bytes (xL+xH×256) in the horizontal direction for the bitmap. yL, yH were selected as the data bytes (yL+yH×256) in the vertical direction for the bitmap. [d]k for bitmap data k for bitmap data bytes，k used for indicating, not for transfer.
  • Page 25 A4L User Manual Xiamen Cashino Technology Co.,Ltd Name Define downloaded bitmap ASCII ：GS * x y d1...d(x×y×8) Code ：29 42 x y d1 ...d(x×y×8) HEX ：1D 2A x y d1...d(x×y×8) using x and y to appoint dots to define the downloaded bitmap Function x appoints that the horizontal dots as 8*x.

  • Page 26: Print Downloaded Bitmap

    A4L User Manual Xiamen Cashino Technology Co.,Ltd 1D 2F 00 Print downloaded bitmap Name Print downloaded bitmap ASCII ：GS / m Code ：29 47 m HEX ：1D 2F m Prints a downloaded bitmap using the mode specified by m. Using the mode that m appointed to print downloaded bitmap...
  • Page 27 A4L User Manual Xiamen Cashino Technology Co.,Ltd 0 ≤ yL ≤ 255） 0 ≤ yH ≤ 1 (1 ≤ (yL+yH*256) ≤ 288) 0 ≤ d ≤ 255） k = (xL+xH*256)*(yL+yH*256)*8 Totaled the defined data Area = 64 k bytes Default...
  • Page 28 A4L User Manual Xiamen Cashino Technology Co.,Ltd This command defines n as the number of a NV bitmap. Numbers rise in order from NV bitmap 01H. Therefore, the first data group [xL xH yL yH d1...dk] is NV bitmap 01H, and the last data group [xL xH yL yH d1...dk] is NV bitmap n.

  • Page 29: Print Nv Bitmap

    A4L User Manual Xiamen Cashino Technology Co.,Ltd 1B 40 1C 71 01 03 00 03 00 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF...

  • Page 30: ④Tab Commands

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Mode 0, 48 Normal 1, 49 Double-width 2, 50 Double-height 3, 51 Quadruple 0 ≤ m ≤ 3 Parameter 48 ≤ m ≤ 51 range 1 ≤ n ≤ 255 Default None Support n is the number of the NV bitmap (defined using the FS q command).

  • Page 31: Horizontal Tab Position Setting

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Defaults None Tab position set by ESC D If the tab position is not set(the default is no horizontal position),this command Notes will be treated as an LF command If the tab position exceeds the print area,the coordinates will move to the star...

  • Page 32: ⑤One-Dimension Bar Code Command

    A4L User Manual Xiamen Cashino Technology Co.,Ltd ：27 68 [d]k 0 HEX ：1B 44 [d]k 00 Set horizontal tab position, parameter meaning as below: Function d1 ... dk：horizontal position,in 8 as unit,null as the terminator Parameter XX58：1 ≤ d ≤ 46（d1 <d2 < …… dk ，1 ≤ k ≤ 16）...

  • Page 33: Bar Code Height Setting

    A4L User Manual Xiamen Cashino Technology Co.,Ltd 2，50 below the bar code 3，51 above and below the bar code Parameter 0 ≤ n ≤ 3 or 48 ≤ n ≤ 51 range Defaults n = 0 Notes The command setting will be valid after ESC @、printer reset、power off...

  • Page 34: Bar Code Printing

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Noted The command setting will be valid after ESC @、printer reset、power off Example None 1D bar code printing Name 1D bar code printing (A) ASCII ：GS k m [d]k NUL ：29 107 m [d]k NUL Hex ：1D 6B m [d]k NUL...
  • Page 35 A4L User Manual Xiamen Cashino Technology Co.,Ltd d = 36，43，45， 46，47，58 (65≤d1≤68， 65≤dk≤68， 97≤d1≤100， 97≤dk≤100) (Command B) Bar code length（SP show space） Coding Data system lengt Character set Data（d） fixe UPC-A n = 11，12 48≤d≤57 48≤d≤57 fixe 6≤n≤8， [when n = UPC-E n = 11，12...
  • Page 36 A4L User Manual Xiamen Cashino Technology Co.,Ltd chan 00H~7FH 0≤d≤127 CODE12 geab 1≤n≤255 C1H~C4H(FNC d = 193， 194,195,196 chan 00H~7FH 0≤d≤127 UCC/EA geab 1≤n≤255 C1H~C4H(FNC d = 193， N128 194,195,196 Parameter (A) 0 ≤ m ≤ 6 range (B) 65 ≤ m ≤ 74...
  • Page 37 A4L User Manual Xiamen Cashino Technology Co.,Ltd When d6 is 1~9,be sure d7,d8,d9,d10 are 0,and d11 is 5~9 Initial character,terminator automatically inserted When print EAN13(m = 2 or 67),Please pay attention as following: Whatever the input data length is 12 or 13,check bit is automatically...
  • Page 38 A4L User Manual Xiamen Cashino Technology Co.,Ltd When print CODE128(m = 73),please pay attention as following: The encoding system intelligently identifies data and implements minimum length encoding without the user set character (include starting character set) or switch character Function character FNC1~FNC4 use C1H~C4H and input it...

  • Page 39: ⑥Status Querying Commands

    A4L User Manual Xiamen Cashino Technology Co.,Ltd 1d 6b 46 08 30 32 33 34 35 36 30 30 1d 6b 47 08 41 32 33 34 35 36 30 41 1d 6b 48 08 41 30 32 33 34 35 36 41 1d 6b 49 08 41 30 32 33 34 35 36 41 ⑥Status querying Commands...

  • Page 40: Real-Time Transmission Status

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Undefined. unused. fixed to be Off. Paper sensor status (n = 1, 49): Bits 2 and 3: When the paper end sensor detects the paper end, the printer goes offline and does not execute this command. Therefore, bits 2 and 3 do not transmit the status of paper end.
  • Page 41 A4L User Manual Xiamen Cashino Technology Co.,Ltd •Printer return to the relative status immediately after receiving the command • this command try not to put in command list between 2 or more bite . Though printer being forbid by ESC=,this command still effective.
  • Page 42 A4L User Manual Xiamen Cashino Technology Co.,Ltd Open upper cover Not press feed key press feed key Fixed to be 1 Paper adequate Paper shortage No error Error Fixed to be 0 n=3：transmit error status bite 0 Hexadecim decimalis Function...

  • Page 43: ⑦Two-Dimensional Bar Code Commands

    A4L User Manual Xiamen Cashino Technology Co.,Ltd n=4：paper sensor status bite Hexadecim decimalis Function Fixed to be 0 Fixed to be 1 2， 3 0 Paper Paper near-end Fixed to be 1 5， 6 0 Paper Paper end Fixed to be 0...

  • Page 44: Setting Error Correction Level Of Qr Code

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Notes Setting mode type of QR code to [n dot × n dot]. Example None Setting error correction level of QR code Name Setting error correction level of QR code ASCII ：GS (...

  • Page 45: Printing Qr Code

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Default Store two-dimensional code data (d1...dk) to data buffer. Notes ((pL + pH×256) - 3) bytes is processed as a graphic data after the m (d1... dk). Example None Printing QR code Name...

  • Page 46: Printing Two Dimensional Code

    A4L User Manual Xiamen Cashino Technology Co.,Ltd Setting QR code graph information The detailed graph information is as follows: Transmit data Hexadecim Decimal Data type Header 1byte Flag 1byte Width 30H-39H 48-57 1-5byte Separator 1byte Height 30H-39H 48-57 1-5byte Separator...

  • Page 47: Printing Double Qr Code

    A4L User Manual Xiamen Cashino Technology Co.,Ltd nL nH: describes data length d1…dk: describes two dimensional code to be printed 0 ≤ v ≤ 17 Parameter 1 ≤ r ≤ 4 range k = nL + 256 * nH Default...

  • Page 48: ⑧Other Commands

    A4L User Manual Xiamen Cashino Technology Co.,Ltd ⑧Other commands Printer reset Name Printer reset ASCII ：ESC @ Code Decimal ：27 64 ：1B 40 The ESC @ command initializes the printer as following： This command prints the data contained in the print buffer, and Function initializes various setup items.
