EP-261B Micro Panel Printer User Manual
Draw up: Zhuchunyan 2021.05.06
Audit：Lan quanguo 2021.05.14
Standardization：Li peiyun 2021.05.15
Approved：WangHuanYong 2021.05.16
Tel：0592-5517253 Fax：0592-5231815
Supply Company：Xiamen Cashino Technology Co., Ltd.
Add.: 4/F No.361 ,qiaoying Road (Yongshi Industrial Park)，xiamen,361021
If there is any change in this specification, no further notice will be given. For the latest version,
please contact Xiamen Cashino Technology Co., Ltd. directly
www.csntek.cn
EP-261B
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP-261B and is the answer not in the manual?

Questions and answers

Related Manuals for Cashino EP-261B

Summary of Contents for Cashino EP-261B

  • Page 1 Supply Company：Xiamen Cashino Technology Co., Ltd. Add.: 4/F No.361 ,qiaoying Road (Yongshi Industrial Park)，xiamen,361021 If there is any change in this specification, no further notice will be given. For the latest version, please contact Xiamen Cashino Technology Co., Ltd. directly www.csntek.cn...
  • Page 2 Xiamen Cashino Trade Co., Ltd. EP-261B Revised records Change Date Modify the content the Page Draw up Review number 2021.5.6 The first draft chunyan quanguo www.csntek.cn...

  • Page 3: Table Of Contents

    Xiamen Cashino Trade Co., Ltd. EP-261B Contents Contents..........................错误！未定义书签。 错误！未定 1．Production description............................5 2．Production fetures......................错误！未定义书签。 3．Size specification..............................5 4．Installation method..............................6 5．Performance parameter............................7 6．Paper roll installation............................8 7．Pin definition...............................8 8．Basic usage........................错误！未定义书签。 8.1Printing selftest page....................错误！未定义书签。 8.2Panel Led indication............................ 9 9．Commands instruction............................
  • Page 4 Xiamen Cashino Trade Co., Ltd. EP-261B Define NV bitmap....................错误！未定义书签。 Print NV bitmap....................错误！未定义书签。 ④Tab Commands..........................33 Tab Commands....................错误！未定义书签。 Horizontal tab position setting................错误！未定义书签。 ⑤One-dimension bar code command............. 错误！未定义书签。 1D bar code readable character(HRI) print position setting......错误！未定义书签。 1D bar code height setting................. 错误！未定义书签。...

  • Page 5: 1．Production Description

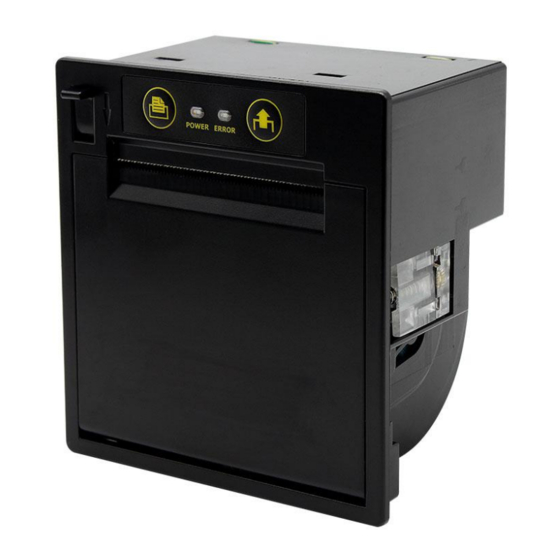

    EP-261B 1．Production description EP-261B is an embedded panel printer unit, which can print two versions of thermal receipt and thermal label. The body has small weight, high durability, and long printing time. It is widely used in medical equipment, measuring equipment, and weighing instruments. , Safety equipment and analytical instruments and meters.

  • Page 6: 3．Size Specification

    Xiamen Cashino Trade Co., Ltd. EP-261B 3．Size specification 4．Installation method ①to insert the printer from the front of the installed machine ② after loading, open the paper bin cover, both sides of the screws locked can be fixed. Note: The installation of the Panel can be adapted from 1 to 6mm thickness changes.

  • Page 7: 5．Performance Parameter

    Xiamen Cashino Trade Co., Ltd. EP-261B 5．Performance parameters Model EP-261B Print method Thermal-line dot method Print speed Max:70mm/s Printing Resolution 203dpi(8dots/mm) Effective printing width 48mm Character set ASCII，GBK，BIG5 and so on Character Print font ANK：(9*17,12*24) Chinese：（24*24） Paper type Thermal paper,label paper,black mark paper Paper width 57.5±0.5mm...

  • Page 8: 6．Paper Roll Installation

    Xiamen Cashino Trade Co., Ltd. EP-261B Power supply DC6.5V-9V/12V optional，Average current:2A，Peak current 4A Operating temperature 0°C~50°C Operating humidity 20%~85% Environment Storage temperature -20°C~60°C Storage humidity 5%~90% 6．Paper Roll Installation 1. Open the lid of the printer; 2. The paper rolls on the opposite side upward and then put into the roll groove;...

  • Page 9: 8．Basic Usage

    Xiamen Cashino Trade Co., Ltd. EP-261B RS232/TTL（XH2.54mm/4Pin） Introduction Data Terminal Ready Transmit Data Receive Data Ground USB (MH2.00mm/4Pin) Introduction VUSB +5V power supply Differential Data Input/Output D- Differential Data Input/Output D+ Ground 8. Basic usage 8.1 Print self-test page Method One: under the shutdown state, hold down the FEED key, boot up, and print out a self-test page, which contains serial transmission rate, language and other Information.
  • Page 10 Xiamen Cashino Trade Co., Ltd. EP-261B 8.2 Panel LED Tips The printer has two LEDS to prompt the state of the user's printer, two LEDS are power supply indicator (green light), and status indicator (red light) POWER indicator ERROR indicator...

  • Page 11: 9.2 Commands Details

    Xiamen Cashino Trade Co., Ltd. EP-261B ESC * Fill Graphics vertical module data GS v 0 Print Graphics horizontal module data GS * Define downloaded bitmap Graphic printing command GS / m Print downloaded bitmap FS q Define NV bitmap...

  • Page 12: Print And Paper Feed Dots

    Xiamen Cashino Trade Co., Ltd. EP-261B Range None Default None Supported mode After executing, R command, the new printing data will cover old data in Notes the printing buffer. Example None Print and paper feed dots Name Print and paper feed n dots ASCII ：ESC J n...

  • Page 13: Set Line Space As Default

    Xiamen Cashino Trade Co., Ltd. EP-261B Function Set line space as n dots Range 0 ≤ n ≤ 255 Default n = 33 Supported mode Line space as below: Notes If the line space setted is less than the highest character in that line,then this line space is equal to the height of the highest character.

  • Page 14: Set The Left Margin

    Xiamen Cashino Trade Co., Ltd. EP-261B HEX ：1B 24 nL nH Function Set left side blank area as（nL + nH × 256）dots 0 ≤ nL ≤ 255 Range 0 ≤ nH ≤ 255 Default None Supported mode This command is only valid for this line, and the printing position is reset to...

  • Page 15: Set Character Size

    Xiamen Cashino Trade Co., Ltd. EP-261B character printing methods (font,highlight,inversion,bold,double hight,double width and underline),parameter n bit definition as below: Bit Function Value 0 Font Normal Small character 1 Undefined Function 2 Undefined 3 Bold Cancel Setting 4 Double hight Cancel...

  • Page 16: Set、Remove White Printing

    Xiamen Cashino Trade Co., Ltd. EP-261B width height 1(Normal) 1(Normal) 2(double width) 2(double height) Range None Default n = 0 Support Model This command is effective with Chinese and other foreign languages, Notes except for HRI character. The command setting is disable when ESC@, printer reset or power off.

  • Page 17: Set、Remove Underline

    Xiamen Cashino Trade Co., Ltd. EP-261B forbidden.(But it not be canceled). This command is disabled when ESC@, printer reset or power off. 1b 40 1d 42 01 Example 30 31 32 0d 0a 30 31 32 0d 0a remove underline 、...

  • Page 18: Set Printing Alignment

    Xiamen Cashino Trade Co., Ltd. EP-261B ：1B 56 n Set or remove 90° revolving printing Function When n is equal to 0 or 48,remove 90°revolving printing. When n is equal to 1 or 49,set 90°revolving printing. Range 0 ≤ n ≤ 1， 48 ≤ n ≤ 49...

  • Page 19: Exit Chinese Character Mode

    Xiamen Cashino Trade Co., Ltd. EP-261B Name Set Chinese mode ASCII ：FS & Code ：28 38 ：1C 26 Set Chinese mode Function Range None Default None Support Model When the Chinese character mode is selected, the printer processes all Chinese character codes(ASCII code) , two bytes at a time.

  • Page 20: Define User Customized Characters

    Xiamen Cashino Trade Co., Ltd. EP-261B character set. Example None Define user customized characters Name Define user customized characters ASCII ：ESC & y c1 c2 [x1 d1 ... d (yx1)] ... [xk d1 ... d(y x k)] ：27 38 y c1 c2 [x1 d1 ... d(yx1)] ...[xk d1 ... d(yxk)] Code ：1B 26 y c1 c2 [x1 d1...d(y x1)]...[xk d1...d(yxk)]...
  • Page 21 Xiamen Cashino Trade Co., Ltd. EP-261B When set font A(12 24). d1= <0F>H d4 = <30>H d7 = <40>H ..d2 = <03>H d5 = <80>H d8 = <40>H ..d3 = <00>H d6 =<00>H d9 = <20>H ..

  • Page 22: Cancel User Customized Characters

    Xiamen Cashino Trade Co., Ltd. EP-261B 1b 25 01 20 20 0D 0A 1b 3f 20 30 20 30 20 0d 0a Cancel user customized characters Name Cancel user customized characters ASCII ：ESC ? n ：27 63 n Code ：1B 3F n...

  • Page 23: Select Character Code

    Xiamen Cashino Trade Co., Ltd. EP-261B Latin America Korea Slovenia China Range 0 ≤ n ≤ 15 Default Support Model Notes None 1B 40 1B 52 00 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 36...
  • Page 24 Xiamen Cashino Trade Co., Ltd. EP-261B Iran II Latvian CP864 [Arabic] ISO-8859-1 [West Europe] CP737 [Greek] WCP1257 [Baltic] Thai CP720[Arabic] CP855 CP857[Turkish] WCP1250[Central Europe] CP775 WCP1254[Turkish] WCP1255[Hebrew] WCP1256[Arabic] WCP1258[Vietnam] ISO-8859-2[Latin 2] ISO-8859-3[Latin 3] ISO-8859-4[Baltic] ISO-8859-5[Cyrillic] ISO-8859-6[Arabic] ISO-8859-7[Greek] ISO-8859-8[Hebrew] ISO-8859-9[Turkish] ISO-8859-15 [Latin 9]...

  • Page 25: ③Graphic Printing Command

    Xiamen Cashino Trade Co., Ltd. EP-261B D8 D9 DA DB DC DD DE DF E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF 0D 0A ③Graphic printing command...

  • Page 26: Print Graphics Horizontal Module Data

    Xiamen Cashino Trade Co., Ltd. EP-261B The command fills only the printing buffer, graphics printing can start only after receiving the printing commands.Printing buffer will be cleared after graphic printing. If you need to print higher graphics,you can divide it into several sections which has 8（m =...

  • Page 27: Define Downloaded Bitmap

    Xiamen Cashino Trade Co., Ltd. EP-261B k for bitmap data bytes，k used for indicating, not for transfer. XX58： 0 ≤ m ≤ 3；48 ≤ m ≤ 51 1 ≤ xL + xH×256 ≤ 48 0 ≤ yL ≤255，0 ≤ yH ≤255 0 ≤...
  • Page 28 Xiamen Cashino Trade Co., Ltd. EP-261B ：29 42 x y d1 ...d(x×y×8) HEX ：1D 2A x y d1...d(x×y×8) using x and y to appoint dots to define the downloaded bitmap Function x appoints that the horizontal dots as 8*x. y appoints that the vertical dots as 8*y.

  • Page 29: Print Downloaded Bitmap

    Xiamen Cashino Trade Co., Ltd. EP-261B FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF...
  • Page 30 Xiamen Cashino Trade Co., Ltd. EP-261B yL, yH means that the defined NV bitmap specifies the vertical dots as (yL + yHx256)*8 1 ≤ n ≤ 255 0 ≤ xL ≤ 255 0 ≤ xH ≤ 3 (1 ≤ (xL+xH*256) ≤ 1023) Parameter 0 ≤...
  • Page 31 Xiamen Cashino Trade Co., Ltd. EP-261B defined by xL, xH, yL, and yH, the printer will process the range defined by xL, xH, yL, and yH outside the defined range. In the first group of NV bitmaps, when any one of xL, xH, yL, yH is out of the definition range, this command is disabled.
  • Page 32 Xiamen Cashino Trade Co., Ltd. EP-261B 1B 40 1C 71 01 03 00 03 00 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF Example...
  • Page 33 Xiamen Cashino Trade Co., Ltd. EP-261B Print NV bitmap n using the mode specified by m. Mode 0, 48 Normal Function 1, 49 Double-width 2, 50 Double-height 3, 51 Quadruple 0 ≤ m ≤ 3 Parameter 48 ≤ m ≤ 51 range 1 ≤...

  • Page 34: Horizontal Tab Position Setting

    Xiamen Cashino Trade Co., Ltd. EP-261B FUNCTION Move the print position to the next tab position Parameter None range Defaults None Support Tab position set by ESC D If the tab position is not set(the default is no horizontal position),this...

  • Page 35: ⑤One-Dimension Bar Code Command

    Xiamen Cashino Trade Co., Ltd. EP-261B When the left margin changes, the TAB position changes simultaneously The command setting will be valid after ESC @、printer reset、power off Example 1B 44 04 06 08 0A 00 09 30 09 31 09 32 09 33 0D 0A ⑤One-dimension bar code command...

  • Page 36: 1D Bar Code Width Setting

    Xiamen Cashino Trade Co., Ltd. EP-261B Notes The command setting will be valid after ESC @、printer reset、power off Example None 1D bar code width setting Name 1D bar code width setting ASCII ：GS w n ：29 119 n Code HEX ：1D 77 n Parameter n specifies the unit of a bar code in dots：...
  • Page 37 Xiamen Cashino Trade Co., Ltd. EP-261B lengt UPC-A fixed k = 11，12 48≤d≤57 48≤d≤57 6≤k≤8， [when k = UPC-E fixed k = 11，12 7,8,11,12， d1 = 48 ] JAN13 fixed k = 12，13 48≤d≤57 (EAN13) JAN8 fixed k = 7，8 48≤d≤57...
  • Page 38 Xiamen Cashino Trade Co., Ltd. EP-261B (EAN13) JAN8 fixe n = 7，8 48≤d≤57 (EAN8) 48≤d≤57， 0~9，A~Z 65≤d≤90， CODE3 1≤n SP，$，%，*， d = 32， 36， 37， able +，-，.，/ 42，43，45， 46，47 2≤n≤255 (Interlea 48≤d≤57 （even ved 2 of able numbers） 48≤d≤57， 65≤d≤68，...
  • Page 39 Xiamen Cashino Trade Co., Ltd. EP-261B m parameter is 0 ~ 6(A),barcode data end with NULL m parameter is 65 ~ 74(B),barcode data n stand for data length K is for sign,no transmission When print UPCA（m = 0 or 65）,Please pay attention for the following...
  • Page 40 Xiamen Cashino Trade Co., Ltd. EP-261B automatically When print CODE39(m = 4 or 69),please pay attention as following: When d1 or dn are not Initial character/terminator ”*”, encoder is automatically inserted ”*” When middle of the data encounter ”*”, the encoder regard it as terminator, the other data as the normal data;...

  • Page 41: ⑥Status Querying Commands

    Xiamen Cashino Trade Co., Ltd. EP-261B r set Inserted Inserted automatica automatica （d1...dk） The encoding system intelligently identifies data and implements minimum length encoding without the user set character (include starting character set) or switch character Function character FNC1~FNC4 use C1H~C4H and input it User input data AI,which do not need “(“”)”...

  • Page 42: Real-Time Transmission Status

    Xiamen Cashino Trade Co., Ltd. EP-261B When using a serial interface When DTR/DSR control is selected, the printer transmits only 1 byte after confirming the host is ready to receive data (DSR signal is SPACE). If the host computer is not ready to receive data (DSR signal is MARK), the printer will wait until the host is ready.
  • Page 43 Xiamen Cashino Trade Co., Ltd. EP-261B HEX ：10 04 n According to below parameters, transit the real-time status of printer,n stands for printer status: N=1:transmit printer status Function N=2:transmit off-line status N=3:transmit error status N=4:transmit paper sensor status Range 1 ≤ n ≤ 4...
  • Page 44 Xiamen Cashino Trade Co., Ltd. EP-261B The paper hasn’t been torn away n=2：transit off-line status bite Hexadecim decimalism Function Fixed to be 0 Fixed to be 1 Turn off upper cover Open upper cover Not press feed key press feed key...

  • Page 45: ⑦Printing Qr Code

    Xiamen Cashino Trade Co., Ltd. EP-261B are normal Printer head temp.and voltage are exceed Fexed to be 0 Unrecoverable error: abnormal input voltage Automatic recovery error: refers to the printing head overheating error. When the printing head overheating error occurs, wait for a period of time.
  • Page 46 Xiamen Cashino Trade Co., Ltd. EP-261B range cn=49 fn=67 0 ≤ n ≤ 16 Default Support model Notes Setting mode type of QR code to [n dot × n dot]. Example None Setting error correction level of 2-D bar code...
  • Page 47 Xiamen Cashino Trade Co., Ltd. EP-261B HEX ：1D 6b pL pH cn fn m d1…dk Function Store two-dimension bar code data to data buffer 4 ≤ (pL + pH×256 ) ≤ 7092 (0 ≤ pL ≤ 255, 0 ≤ pH ≤ 28)
  • Page 48 Xiamen Cashino Trade Co., Ltd. EP-261B Name Setting two-dimension bar code graph information ASCII ：GS ( pL pH cn fn m Code 107 pL pH cn fn m ：29 HEX ：1D 28 6b pL pH cn fn m Setting two-dimension bar code graph information...
  • Page 49 Xiamen Cashino Trade Co., Ltd. EP-261B Printing two dimensional code. v: describes two dimensional code specification v=0: describes automatically select two dimensional code specification Function r: describes e rror correction rank describes nL nH: data length describes d1…dk: two dimensional code to be printed 0 ≤...

  • Page 50: ⑧Other Commands

    Xiamen Cashino Trade Co., Ltd. EP-261B 1f 51 02 03 00 20 00 0a 01 06 30 31 32 33 34 35 36 37 38 39 00 C0 00 0a 02 00 39 38 37 36 35 34 33 32 31 30 Other commands ⑧...

  • Page 51: Setting Up Paper Type

    Xiamen Cashino Trade Co., Ltd. EP-261B Function Feed to the beginning of the next label Range None Default value None Notes Only feed to the next label Example None Setting up paper type Name Setting up paper type ASCII ：US A n Code Decimal ：31 65 n...
