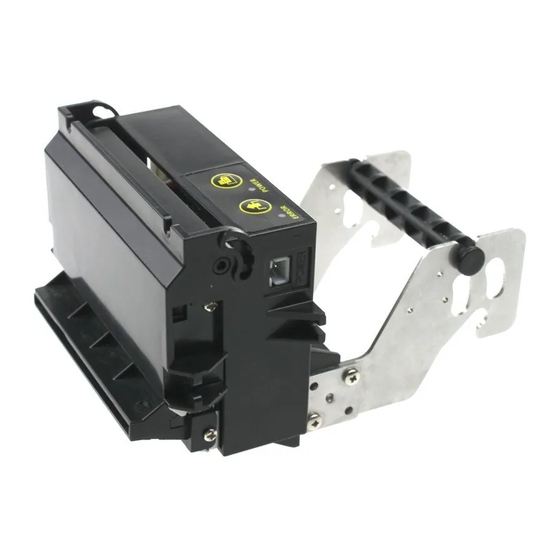

Cashino KP-628E User Manual

Kiosk printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Xiamen Cashino Technology Co., Ltd.
KP628E KIOSK PRINTER
Product Specifications
Standardize：Liu Zhonghua 2017.04.09
Approved： Wang Huanyong 2017.04.11
Company: Xiamen Cashino Technology Co., Ltd.
Tel: 0592-5517253 Fax: 0592-5231815
Address: 4/F,No.318,Tongji South Road, Jimei District,Xiamen,China.361021
The manual is subject to change without further notice. Please contact Xiamen Cashino
Technology Co., Ltd. directly for the latest version.
www.cashinotech.com
Draft： Lin Xiaopeng 2017.04.06
Audit： Hu Riyu 2017.04.08
KP-628E User manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KP-628E and is the answer not in the manual?

Questions and answers

Related Manuals for Cashino KP-628E

Summary of Contents for Cashino KP-628E

  • Page 1 Approved： Wang Huanyong 2017.04.11 Company: Xiamen Cashino Technology Co., Ltd. Tel: 0592-5517253 Fax: 0592-5231815 Address: 4/F,No.318,Tongji South Road, Jimei District,Xiamen,China.361021 The manual is subject to change without further notice. Please contact Xiamen Cashino Technology Co., Ltd. directly for the latest version. www.cashinotech.com...
  • Page 2 Xiamen Cashino Technology Co., Ltd. KP-628E User manual KP-628E product specifications revision record Edited Item Date Description Desing Review page 20170406 The first draft Hu Riyu Xiaopeng 20180409 Printer parameters Hu Riyu Chunyan Add to remove cutter jam and 20180529...

  • Page 3: Table Of Contents

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Content Content..................................3 1. Product overview and Features........................5 ....................................5 2. Naming rules...............................5 3. Dimension................................6 4. Specifications..............................6 5. Connector pin specification..........................7 6. Basic usage.................................8 6.1 Print self-test page...........................9 6.2 LED reminder............................9 6.3 Paper roll placed............................9...
  • Page 4 Xiamen Cashino Technology Co., Ltd. KP-628E User manual Fill Graphics vertical module data..................... 26 Print Graphics horizontal module data..................... 27 Define downloaded bitmap......................... 29 Print downloaded bitmap........................30 Define NV bitmap..........................31 Print NV bitmap.............................34 ④Tab Commands..........................35 Horizontal tab............................35 Horizontal tab position setting......................35 ⑤One-dimension bar code command....................36...

  • Page 5: Product Overview And Features

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual 1. Product overview and Features 1.1 Product overview KP628E is 2inch kiosk thermal printer which is consist of thermal printer head ,cutter and control board 1.2 Product feature 1. Different paper feed direction 90 degree and 180 degree 2.

  • Page 6: Dimension

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Default function R=RS232 (Interface) T=TTL TU=TTL+USB RU=RS232+USB Default function A=Full & half cut (Cutter) Default function 08=Ø80mm 0=without paper roll holder Default function H=Horizontal (Paper roll holder) V=Vertical N=None Optional function S=with detection...

  • Page 7: Connector Pin Specification

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual print mode Thermal line printing Printing speed Max:90mm/s Resolution 203dpi(8dots/mm) Effective printing width 48mm Print Feed accuracy 0.0625mm ASCII，GBK，BIG5 etc. Character set ANK：(9*17,12*24) Chinese： （24*24） Character Font Thermal paper Paper Type 57.5±0.5mm...

  • Page 8: Basic Usage

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Serial（RS232/TTL）PH04/2.0mm Description Terminal Signal Name Ground Receive data Transmission data Request to send (Data terminal ready) Power XH02/2.54mm Description Terminal Signal Name Power supply Ground Mini USB Description Terminal Signal Name +5v power supply...

  • Page 9: Print Self-Test Page

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual 6.1 Print self-test page One way：Power off and press feed button, then power on and printer will print a self-test page. It including baud rate, language and so on. Another way：Power on then press feed button 3 seconds, printer will print a self-gets page 6.2 LED reminder...

  • Page 10: Paper Roll Installation

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Vertical: 6.4 Paper roll installation The printer is powered up, the paper is facing upside down, and the printer is loaded with the paper. Then printer will auto feed paper as the following figure 1:...

  • Page 11: Remove Cutter Jam And Paper Jam

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Figure 1 Noted：Figure 2 shows the wrong loading method Print the paper backside, the print effect is blank. Figure 2 6.5 Remove cutter jam and paper jam How to remove cutter jam: Firstly the printer cutter resume work , and then remove the paper jam, and finally clear the paper path residual scraps.

  • Page 12: Commands Details

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Set printing position ESC $ GS L nL nH Set the amount of left margin ESC ! Set character printing method GS ! n Set character printing method Set、remove white printing GS B n Set、remove underline...

  • Page 13: ①Printing And Paper Feed Commands

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Printing and paper feed commands ① Printing and paper feed Name print and paper feed ASCII ：LF Code DEC ：10 HEX ：0A Print the buffer contest, and set the paper feed as per line space, then...

  • Page 14: Print And Paper Feed N Line

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Print and paper feed n line Name Print and paper feed n lines ASCII ：ESC d n Code DEC ：27 100 n HEX：1B 64 n Function Print the contents in printing buffer and paper feed n lines.

  • Page 15: Set Print Position

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual ASCII ：ESC 2 Code DEC：27 50 HEX ：1B 32 Function Set line space to default 30 dots Range None Default None Line space in details pls check ESC 3 command. If the line space setted is less than the height character in the line,the line...

  • Page 16: Set Character Printing Method

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Use the maximum value of the printable unit, if the setting is beyond the printable area. 1b 40 1d 4c 08 00 Example 30 31 32 0d 0a 30 31 32 0d 0a...

  • Page 17: Set Character Size

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Set character size Name Set character size ASCII ：GS ! n Code DEC ：29 33 n HEX ：1d 21 n Set character size as 1-8 times width,1-8 times height. Definition is as...

  • Page 18: Set、Remove Underline

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual It is only effective for LSB of n. This command is all effective with built-in characters and user-defined characters. It is effective with blank, which is setted by ESC CP, when white printing mode is on.

  • Page 19: Set、Remove 90°Revolving Printing

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual 1b 40 1b 2d 02 30 31 32 0d 0a 1b 40 1b 2d 00 30 31 32 0d 0a remove 90°revolving printing 、 Name Set 、remove 90°revolving printing ASCII ：ESC V n Code ：27 86 n...

  • Page 20: Set Chinese Mode

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual off. 1B 40 1B 61 02 30 31 32 0D 0A 1B 40 1B 61 01 Example 30 31 32 0D 0A 1B 40 1B 61 00 30 31 32 0D 0A...

  • Page 21: Define User Customized Characters

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual When n LSB is 0，delete customized characters When n LSB is 1，select customized characters Range 0 ≤ n ≤ 255 Default When cancel customized characters ， automatically select the internal Notes character set.
  • Page 22 Xiamen Cashino Technology Co., Ltd. KP-628E User manual Execute ESC ?。 Printer reset or power off Graphic: When set font A(12 24). d1= <0F>H d4 = <30>H d7 = <40>H ..d2 = <03>H d5 = <80>H d8 = <40>H ..

  • Page 23: Cancel User Customized Characters

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual ②y = 3 1B 40 1b 26 03 20 20 06 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 1b 25 01...

  • Page 24: Select Character Code

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Japan Norway Denmark II Spain II Latin America Korea Slovenia China Range 0 ≤ n ≤ 15 Default Notes None 1B 40 1B 52 00 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 30 31 32 33 34 35 36...
  • Page 25 Xiamen Cashino Technology Co., Ltd. KP-628E User manual WCP1253 [Greek] CP852 [Latina 2] CP858 Multilingual Latin Ⅰ+Euro) Iran II Latvian CP864 [Arabic] ISO-8859-1 [West Europe] CP737 [Greek] WCP1257 [Baltic] Thai CP720[Arabic] CP855 CP857[Turkish] WCP1250[Central Europe] CP775 WCP1254[Turkish] WCP1255[Hebrew] WCP1256[Arabic] WCP1258[Vietnam]...

  • Page 26: ③Graphic Printing Command

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC...

  • Page 27: Print Graphics Horizontal Module Data

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual The command fills only the printing buffer, graphics printing can start only after receiving the printing commands. Printing buffer will be cleared after graphic printing. If you need to print higher graphics, you can divide it into several sections which has 8（m =...
  • Page 28 Xiamen Cashino Technology Co., Ltd. KP-628E User manual ：1D 76 30 m xL xH yL yH [d]k Print horizontal module graphic data, the parameters are as below: m as bitmap method： Model Horizontal scale Vertical scale 0,48 Normal × 1 ×...

  • Page 29: Define Downloaded Bitmap

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual This command has the printing function, data will be transferred while printing, no need to use the printing command again 1B 40 1d 76 30 00 03 00 09 00 Example FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF...

  • Page 30: Print Downloaded Bitmap

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual 1B 40 1D 2A 03 03 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF Example FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF...

  • Page 31: Define Nv Bitmap

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Default None This command will be ignored if the bitmap data has not been defined. In standard mode, this command is effective only when there is no data in the buffer area.
  • Page 32 Xiamen Cashino Technology Co., Ltd. KP-628E User manual user-defined characters, downloaded bitmaps should be defined only after completing this command. The printer clears the receiving and printing buffers and resets the printer to the mode that workable when power on. (hardware reset interface is not supported ) This command cancels all NV bitmaps that have already been defined by this command.
  • Page 33 Xiamen Cashino Technology Co., Ltd. KP-628E User manual command can define several NV bitmaps, but cannot define bitmap data whose total capacity [bitmap data header] exceeds 192K bytes. The printer does not transmit ASB status or perform status detection during processing of this command even when ASB is specified.

  • Page 34: Print Nv Bitmap

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual 1B 40 1C 71 01 03 00 03 00 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF...

  • Page 35: ④Tab Commands

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual normal and double-width modes, and (for the height n 2 of the NV bitmap) in double height and quadruple modes, regardless of the line space specified by ESC 2 or ESC 3.

  • Page 36: ⑤One-Dimension Bar Code Command

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Maximum support for the setting of 16 tab position Using this command, the setting of previous tab position will be canceled k is for indication purpose, no transmission When transport [d]k, and come across NULL, should be considered over...

  • Page 37: Bar Code Width Setting

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Name 1D bar code height setting ASCII ：GS h n Code ：29 104 n DEX ：1D 68 n Parameter n specifies the height of a bar code in dots： Function Parameter 1 ≤ n ≤ 255...
  • Page 38 Xiamen Cashino Technology Co., Ltd. KP-628E User manual Hex ：1D 6B m [d]k NUL (B) ASCII ：GS k m n [d]k ：29 107 m n [d]k Hex ：1D 6B m n [d]k 1D bar code printing, the parameters meaning as below：...
  • Page 39 Xiamen Cashino Technology Co., Ltd. KP-628E User manual 97≤dk≤100) (Command B) Bar code length（SP show space） Coding system Data（d） Character set leng fixe UPC-A n = 11，12 48≤d≤57 48≤d≤57 fixe 6≤n≤8， [when n = UPC-E n = 11，12 7,8,11,12， d1 = 48 ]...
  • Page 40 Xiamen Cashino Technology Co., Ltd. KP-628E User manual N128 C1H~C4H(FN d = 193， able 194,195,196 Parameter (A) 0 ≤ m ≤ 6 range (B) 65 ≤ m ≤ 74 Defaults None If the bar code width exceed the printable area, the printer does not...
  • Page 41 Xiamen Cashino Technology Co., Ltd. KP-628E User manual When d6 is 1~9,be sure d7,d8,d9,d10 are 0,and d11 is 5~9 Initial character, terminator automatically inserted When print EAN13(m = 2 or 67),Please pay attention as following: Whatever the input data length is 12 or 13,check bit is automatically...
  • Page 42 Xiamen Cashino Technology Co., Ltd. KP-628E User manual character will be replaced with space When print CODE128(m = 73),please pay attention as following: The encoding system intelligently identifies data and implements minimum length encoding without the user set character (include starting...

  • Page 43: ⑥Status Querying Commands

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual 1d 6b 44 08 30 32 33 34 35 36 30 30 1d 6b 45 08 30 32 33 34 35 36 30 30 1d 6b 46 08 30 32 33 34 35 36 30 30...
  • Page 44 Xiamen Cashino Technology Co., Ltd. KP-628E User manual •Printer return to the relative status immediately after receiving the command • this command try not to put in command list between 2 or more bite . Though printer being forbid by ESC=,this command still effective.
  • Page 45 Xiamen Cashino Technology Co., Ltd. KP-628E User manual Turn off upper cover Open upper cover Not press feed key press feed key Fixed to be 1 Paper adequate Paper shortage No error Error Fixed to be 0 n=3：transmit error status...

  • Page 46: ⑦Two-Dimensional Bar Code Commands

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual recovered. n=4：paper sensor status bite Function Hexadecimal Decimal Fixed to be 0 Fixed to be 1 2， 3 0 Paper Paper near-end Fixed to be 1 5， 6 0 Paper Paper end...
  • Page 47 Xiamen Cashino Technology Co., Ltd. KP-628E User manual Default Notes Setting mode type of QR code to [n dot × n dot]. Example None Setting error correction level of QR code Name Setting error correction level of QR code ASCII ：GS (...
  • Page 48 Xiamen Cashino Technology Co., Ltd. KP-628E User manual m=48 0 ≤ d ≤ 255 k = (pL + pH×256 ) - 3 Default Store two-dimensional code data (d1...dk) to data buffer. Notes ((pL + pH×256) - 3) bytes is processed as a graphic data after the m (d1...
  • Page 49 Xiamen Cashino Technology Co., Ltd. KP-628E User manual Setting QR code graph information The detailed graph information is as follows: Transmit data Hexadecim Decimal Data type Header 1byte Flag 1byte Width 30H-39H 48-57 1-5byte Separator 1byte Height 30H-39H 48-57 1-5byte...
  • Page 50 Xiamen Cashino Technology Co., Ltd. KP-628E User manual nL nH: describes data length d1…dk: describes two dimensional code to be printed 0 ≤ v ≤ 17 Parameter 1 ≤ r ≤ 4 range k = nL + 256 * nH...

  • Page 51: ⑧ Printing Double Qr Code

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Range None Default None Notes None Example None Printing double QR code ⑧ Name Printing double QR code ASCII ：US Q m n p1H p1L l1H l1L ecc1 v1 d1…dn p2H p2L 12H l2L ecc2 v2 dk…dm ：27 81 m n p1H p1L l1H l1L ecc1 v1 d1…dn...

  • Page 52: ⑨Other Commands

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual normal data To Print string “0123456789” in QR Code at position 32 with ecc 1and Print string “987654321” in QR Code at position 192 with ecc 2, and module size 3, you should send command as follow。...

  • Page 53: Full Cut

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Decimal ：29 86 m Hex ：1D 56 m ② ASCII ：GS V m n Decimal ：29 86 m n Hex ：1D 56 m n This command executes paper cutting The relationship between parameter m and the cut mode is as follows:...

  • Page 54: Partial Cut

    Xiamen Cashino Technology Co., Ltd. KP-628E User manual Partial cut Name Partial cut ASCII ：ESC m Code Decimal ：27 109 Hex ：1B 6D Function Partial cut mode Range None Default value None Notes None 1B 40 Example 30 30 30 0D 0A 1B 6D www.cashinotech.com...
