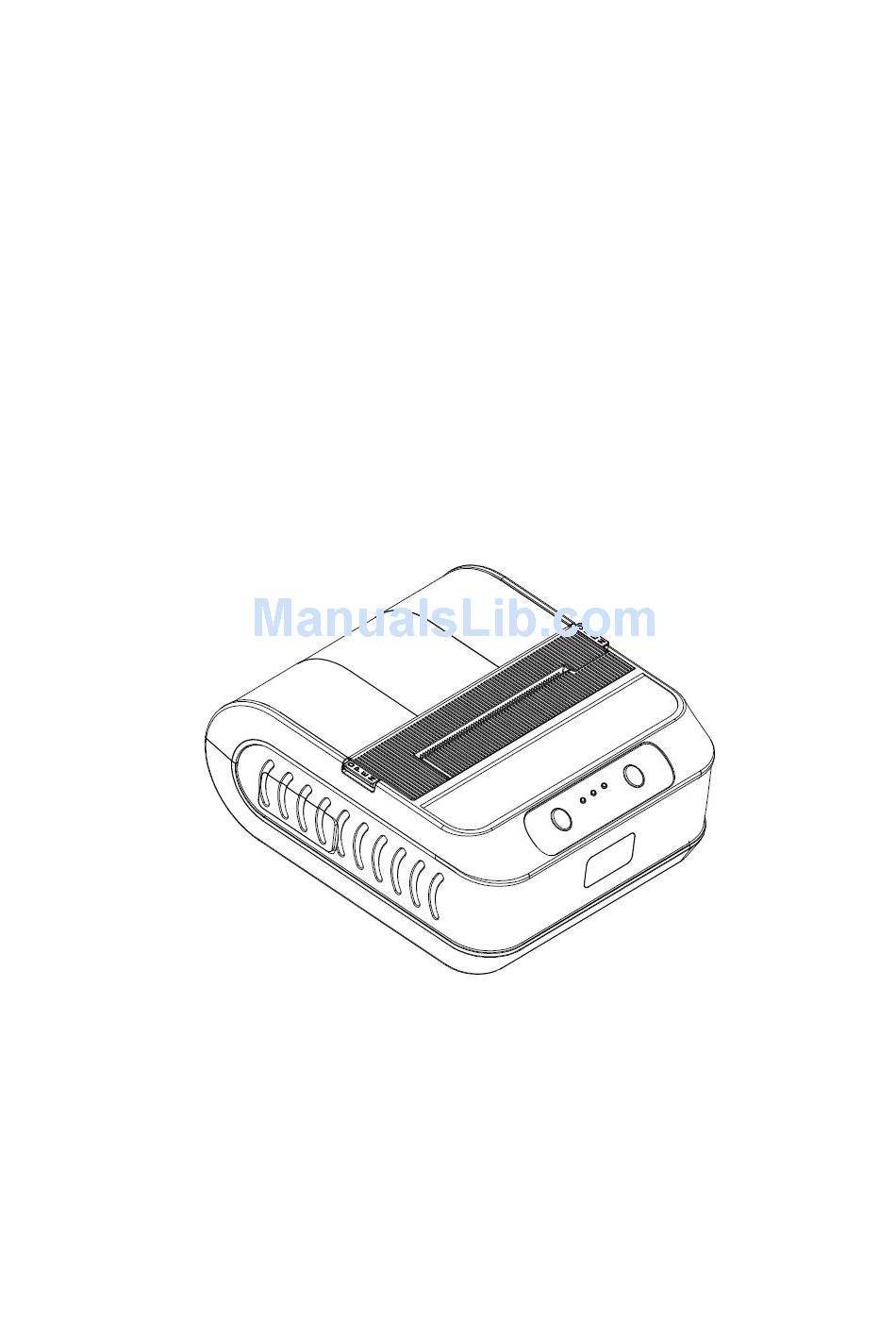

Page 1: User Manual
PDM-02 user manual USER MANUAL MOBILE IMPACT DOT MATRIX PRINTER Model：PDM-02... -
Page 2: Table Of Contents
PDM-02 user manual Precautions............................3 1. Overview............................7 1.1 Feature........................... 7 2. Accessories..........................7 2.1 Standard accessories....................7 2.2 Optional accessories....................7 3. Printer spare parts details......................8 4. Technical parameter........................8 5.Before using..........................9 5.1 Battery installation......................9 5.2 Paper installation......................10 6.Basic use............................ 10 6.1Power on..........................10... -
Page 3: Precautions
PDM-02 user manual Precautions ◆ Safety Precautions In using the present appliance, please keep the following safety regulations in order to Prevent any hazard or material damage. - Page 4 PDM-02 user manual...
- Page 5 PDM-02 user manual ◆ Operation Precautions Be sure not to print continuously over 1meter, otherwise may cause damage to the printer head. Water or other liquid should not spill into the printer, also the printer should not be appeared in the rain, or else may cause printer damage.
- Page 6 PDM-02 user manual 4) Do not use or place the battery nearby the stove or other high temperature places. Excessive heat maybe damage the resin shell and/or the insulation materials, and then the battery may be caused overheating, burning and/or explosion.
-
Page 7: Overview
PDM-02 user manual 1. Overview PDM-02 is a high efficient portable printer,with light weight,high endurance,long time in continue printing,widely used in POS,retail,parking ticket,logistics,warehouse stock,on board transportation,utility billing and so on. 1.1 Feature ※ Compact design,battery powered,easy to carry out ※ Voice announce mode,anytime to know if printer out of paper and power ※... -
Page 8: Printer Spare Parts Details

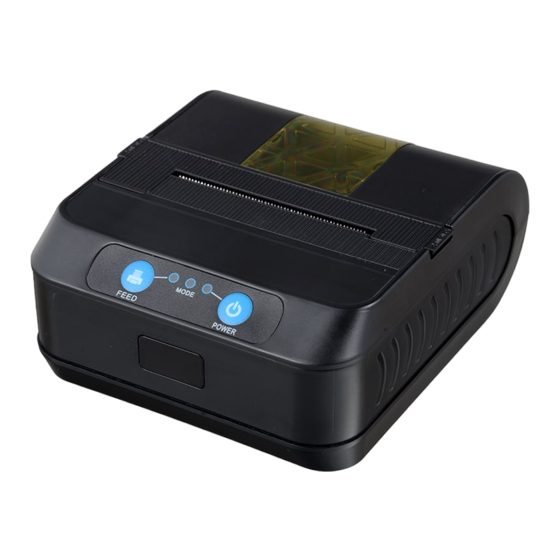

PDM-02 user manual 3. Printer spare parts details 1.Paper cover 2.Paper put mouth 3.POWER 4.FEED 5.Indicator 6.IR window 7.Power port 8.Mini USB 4. Technical parameter Ext-Dimension 110×112.3×46(W×D×H)mm Physical data Weight grams (including Li-ion batteries, excluding paper roll) Paper roll diameter ≤... -
Page 9: Before Using
PDM-02 user manual Print sequence 24columns:144dots/line; 40 columns:240 dots/line Interface Wired USB/RS232 serial port (2 choose 1) Parameters Wireless Bluetooth V2.0/V4.0 , infrared Battery DC7.4 V / 2000 mAh rechargeable lithium Power supply batteries Adapter DC12V/0.8A~1A A charge can print... -
Page 10: Paper Installation
PDM-02 user manual 5.2 Paper installation 6.Basic use 6.1Power on Press Power button 2 seconds,printer power-on. 6.2 Power off Press Power button 3 seconds,printer power-on. 6.3 Feed paper Printer under normal working state, press the paper feed button, paper will feed 6.4LED Indicator and beep signal... -
Page 11: Printer Self-Inspection
PDM-02 user manual 6.5 Printer self-inspection After obtaining printer users, can at any time to self-inspection of printer, to detect the current printer Settings and status. Self-checking method is as follows: turn it off, if printing machine was on, and then hold the paper feed button, then boot (press the power button), and then walk paper release button, and a printer that prints out the current status and printer setup. -
Page 12: Communication
PDM-02 user manual 7.Communication PDM-02 has two communication ways: ①Wired：USB/RS232C ②Wireless：Bluetooth/Ir 7.1Serial communication（RS232） The printer have RS232 Wired serial port,connect by 5 Pin Mini USB. The cable connect definition as below:... -
Page 13: Usb Communication
PDM-02 user manual 7.2 USB communication PDM-02 printer has a mini USB interface，to achieve it through the mini USB USB2.0 interface. Note：Printer using USB communication, need to install PL2303 driver first. Printer contact computer USB,than open”my printer”--”device manager”--”combo”,will see this icon,illustrate that successfully install driver,and use normally. -
Page 14: Bluetooth Communication
When PDM-02 communicates with the host devices by（RAW-IR）and IrDA(COMM) interfaces ( from both PDM-02 and the host device ) right towards to each other ( angle shall not be more than 30° ), without any obstacles between them, the distance shall be less than 0.5M. -
Page 15: Usage And Preservation Of Print Paper
PDM-02 user manual long time. 8.2 usage and preservation of print paper 1.Please avoid to preserve printer paper in high temperature and direct sunlight places.And please do not tear off the package when preserve. 2.Please preserve printed paper about 20 degrees Celsius places after printing,to lengthen life-span of printed paper.
