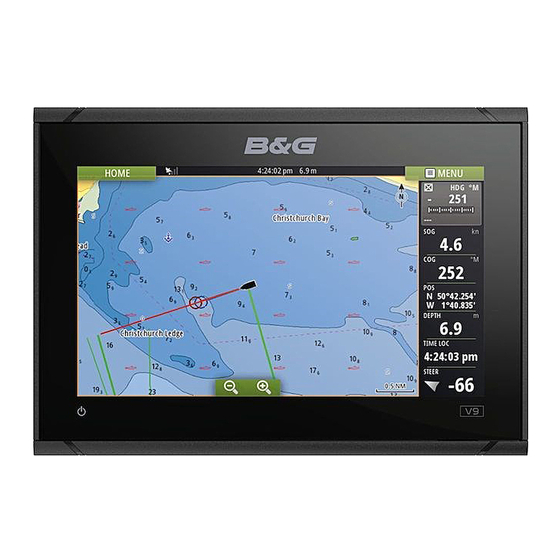

Front panel
No. Key
1
Power

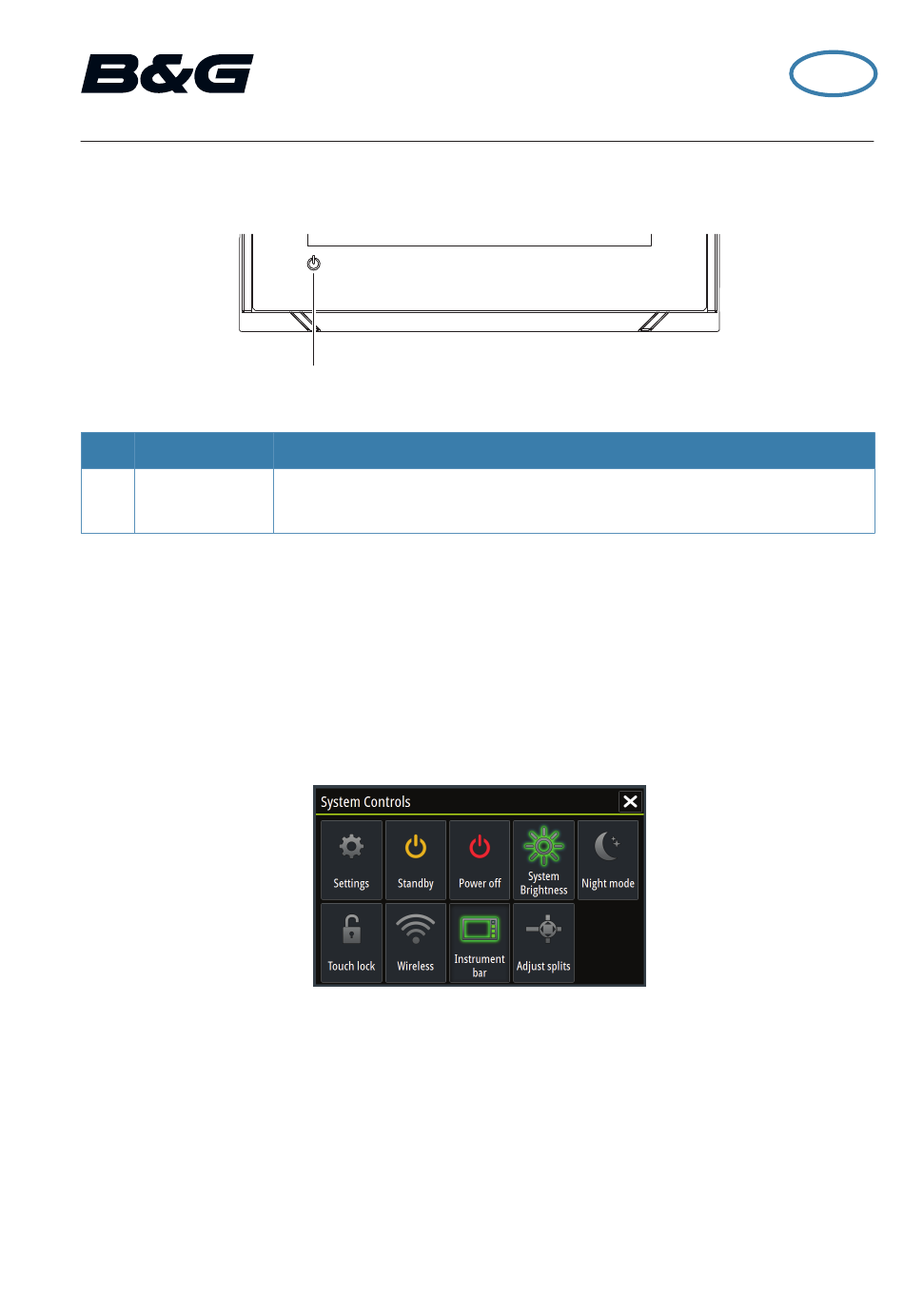

The System controls dialog
Used for quick access to system settings.
Activate the dialog by:
•
Pressing the Power key.
•
Swiping from the top of the screen.
¼ Note:
The icons displayed on the dialog can vary. For example, the adjust splits
option is only available if you are viewing a split page when you open the
System controls dialog.
Vulcan R Series
Quick Guide
1
Function
Press and hold to turn the unit ON/OFF. Press once to display
the System control dialog.
Vulcan R Series |
Quick Guide - EN
EN
|
3
Advertisement
Table of Contents
Related Manuals for B&G Vulcan R Series
Summary of Contents for B&G Vulcan R Series
-
Page 1: Front Panel
¼ Note: The icons displayed on the dialog can vary. For example, the adjust splits option is only available if you are viewing a split page when you open the System controls dialog. Vulcan R Series | Quick Guide - EN... - Page 2 Press and hold a favorite button to enter edit mode for the Favorites panel. Man Over Select to save a Man Over Board (MOB) waypoint at the cur- Board (MOB) rent vessel position. button Vulcan R Series | Quick Guide - EN...
- Page 3 Select the adjust splits option in the dialog Adjust the panel size by dragging the adjustment icon Confirm your changes by tapping one of the panels or selecting the save option in the menu Vulcan R Series | Quick Guide - EN...
- Page 4 • Tap the route to make it active, then select the start option in the menu. • Select the route from the Routes dialog, then select the start option in the dialog. Vulcan R Series | Quick Guide - EN...
- Page 5 • Toggle between available StructureScan frequencies from the menu. SideScan 455 kHz provides ideal range and image quality in most situations 800 kHz provides higher detail in shallow water Vulcan R Series | Quick Guide - EN...
- Page 6 • Display race start line data. • Display the race start line in a chart diagram on the Race panel. • Display tactical information for the current leg or next leg Vulcan R Series | Quick Guide - EN...
- Page 7 * Only available if the boat type is set to SAIL. Switching from automatic mode to manual steering Switch the autopilot to Standby mode from any automatic operation mode from the Autopilot controller or by using a physical Standby key. Vulcan R Series | Quick Guide - EN...
- Page 8 Viewing the manual on the screen Select the PDF file in the Files panel and then the view option in the dialog. Manuals can be downloaded from www.bandg.com For more details, see the Vulcan Series Operator manual. Vulcan R Series | Quick Guide - EN...
