TECH NOTES

F-1000 Series Turbine Flow Meters

BLUETOOTH® INSTALLATION INSTRUCTIONS

OVERVIEW

ONICON's F-1000 Series Turbine Flow Meters can be easily updated in the field with

the Bluetooth interface*. Bluetooth enables wireless access to real-time data for fast

commissioning and advanced diagnostics.

• #2 Phillips Head Screwdriver

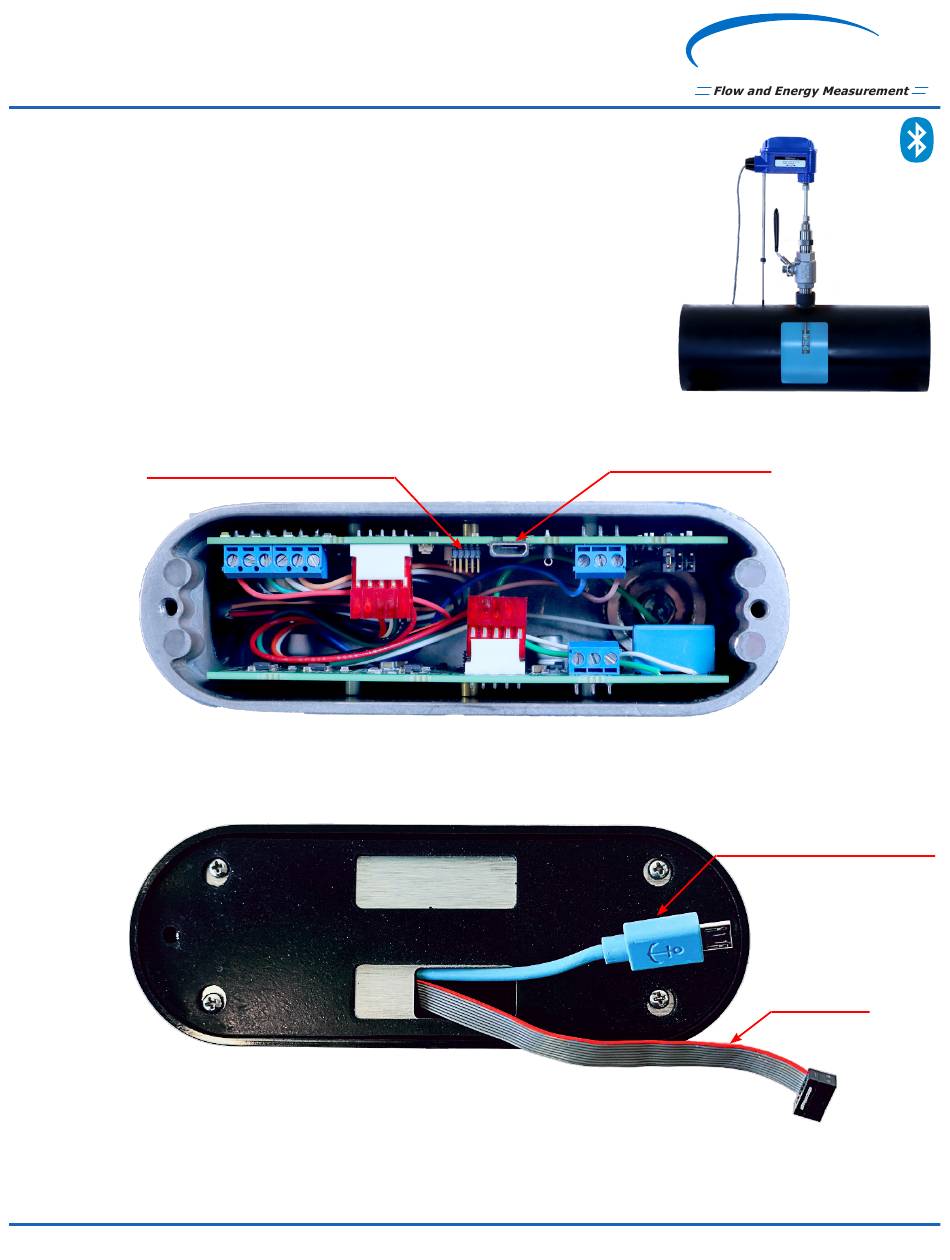

F - 1000 SERIES ENCLOSURE DIAGRAM

JTAG HEADER CONNECTION

*for meters shipped after March 2016

DOC-0003909

ONICON

USB CONNECTION

USB MICRO CONNECTOR

P1 HEADER

Rev.A
