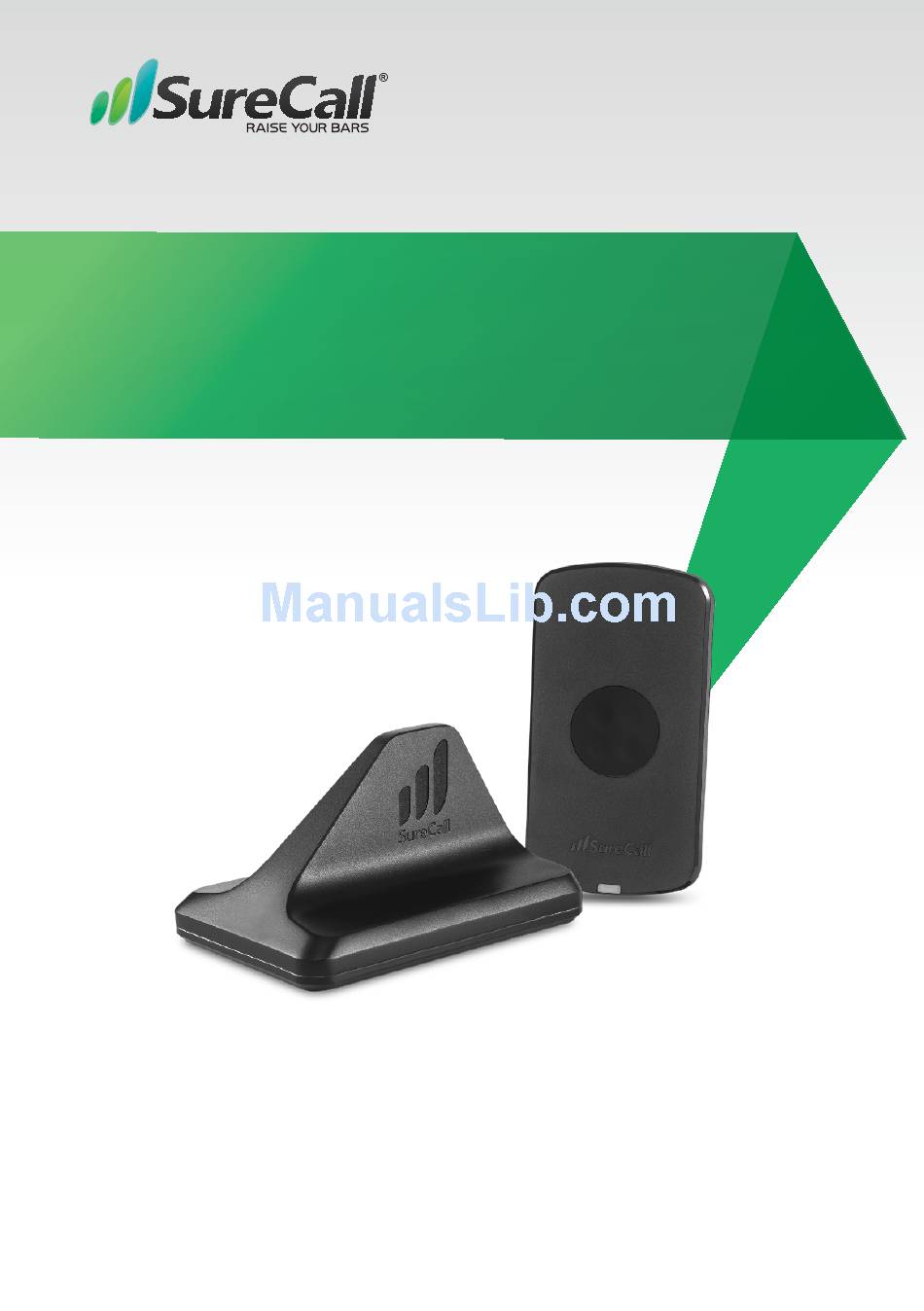

- Page 1 N-Range ™ Vehicle Voice and 4G LTE Data Signal Booster User Guide 08.10.2018...
-
Page 2: Table Of Contents
SureCall N-Range User Guide Thank you for purchasing SureCall’s N-Range cell phone signal booster kit. N-Range provides enhanced voice, text and 4G data signal for any vehicle. If you have any questions during setup, please reach out to our US-based experienced support technicians: •... -
Page 3: How It Works
SureCall N-Range User Guide How It Works Using SureCall’s Extended Range Technology™, N-Range captures the signal outside of the vehicle at its strongest point, strengthens the signal and feeds the improved signal directly to the cellular device on the phone mount. -
Page 4: Package Contents

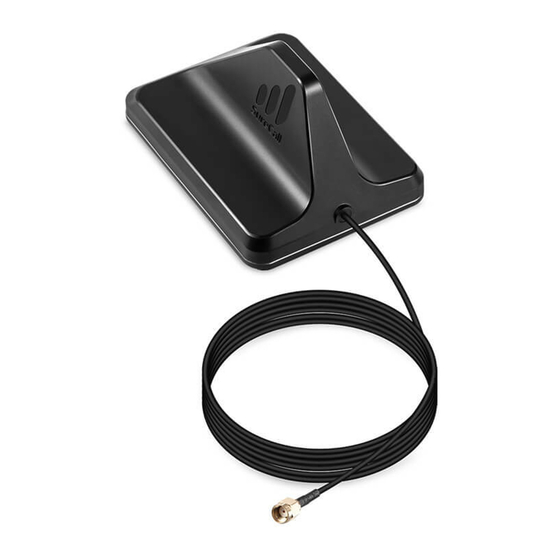

Mount Step 1: Attach N-Range Antenna to the Vehicle’s Roof Attach the N-Range Antenna to the roof of your vehicle and at least 12-inches away from obstructions and other radiating elements, like other antennas. Suggestion: For non-metal or non-magnetic vehicle surfaces use the optional adhesive tape. -
Page 5: Step 2: Place Phone Mount Antenna & Connect Components
Place the cell phone on the phone mount antenna. Route the cable from the phone mount antenna to the location of the N-Range cable connector. Join cables and hand tighten. Magnetic... -
Page 6: Step 3: Connect To Power
SureCall N-Range User Guide Step 3: Connect To Power Plug the DC Power Adapter into the power port of your car, plug the power cable into the phone mount antenna and switch power to ON. You will see a red light on the power adapter and a green light on the phone mount antenna when the system is powered ON and boosting cellular signals. -
Page 7: Troubleshooting
SureCall N-Range User Guide Troubleshooting Problem Resolution Signal booster has 1. Verify that Power LED is ON (look for illuminated light). no power 2. Verify that power source is operational and fuse is intact. 3. Try connecting power supply to an alternate 5-15V power source. -
Page 8: Specifications
SureCall N-Range User Guide Specifications Product N-RANGE (SC-NRANGE) Uplink Frequency Range (MHz): 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included) Downlink Frequency Range (MHz): 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included) Input / Output Impedance: 50 Ω... -
Page 9: Antenna Kitting Information
As above information. Remark: Lower gain antenna can also be used. Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. -
Page 10: Consumer Guidelines
SureCall N-Range User Guide Consumer Guidelines This is a CONSUMER device BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. -
Page 11: Three-Year Product Warranty
Buyers may obtain an RMA number for warranty returns by calling the SureCall Return Department toll-free at 1-888-365-6283. Any returns received by SureCall without an RMA number clearly printed on the outside of the shipping container will be returned to sender. In order to receive full credit for signal boosters, all accessories originally included in the signal booster box must be returned with the signal booster. - Page 12 48346 Milmont Drive Fremont, California 94538, USA 888.365.6283 www.surecall.com...
