Breakdown Of Parts - Wayne-Dalton 8000 Quick Start Manual

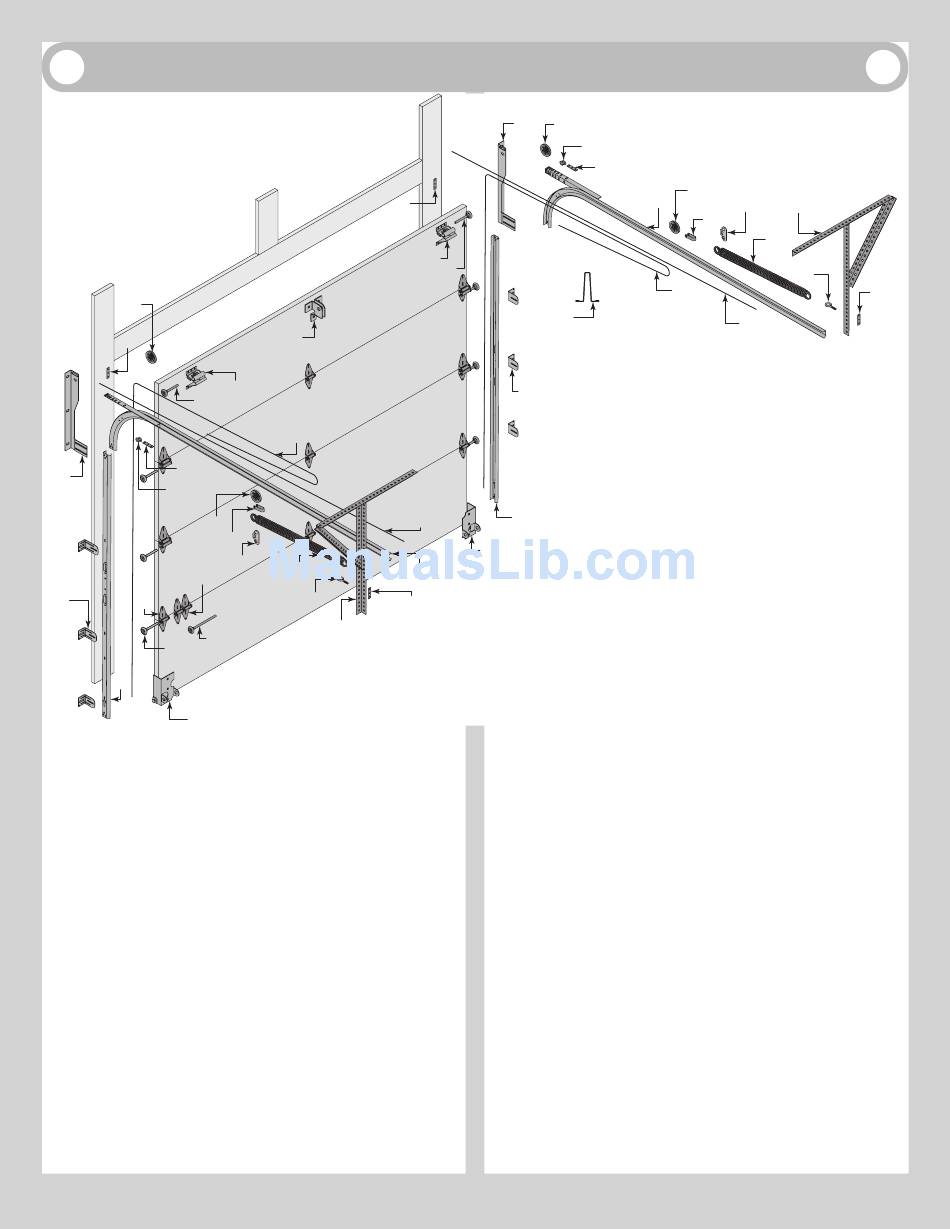

NOTE: The illustrations shown on this page are general
representations of the door parts. Each specific door
models may have unique variations.
J3.
J5.
C1.
J5.
A1.
J6.
J4.
J7.
D2.
B1.
D1.
C2.
C1.
I3.
L1.
A. FLAG ANGLES (AS REQUIRED):
A1. Fully Adjustable (F.A.) Flag Angles
B. JAMB BRACKETS (AS REQUIRED):
B1. Fully Adjustable (F.A.) Jamb Brackets
C. TRACK ROLLERS (AS REQUIRED):
C1. Short Stem Track Rollers
C2. Long Stem Track Rollers
D. GRADUATED END HINGES:
D1. Single Graduated End Hinges (S.E.H.), Industry Standard
D2. Double Graduated End Hinges (D.E.H.), Industry Standard
E. STACKED SECTIONS:
E1. Top Section
E2. Intermediate(s) Section
E3. Lock Section
E4. Bottom Section
F. TOP FIXTURES (AS REQUIRED):
F1. Top Fixture Assemblies
G. STRUT(S) (AS REQUIRED):
G1. Strut (U - shaped)
H. DRAWBAR OPERATOR BRACKET (FOR TROLLEY OPERATED DOORS):
H1. Drawbar Operator Bracket (Supplied By Others)
I. TRACKS (AS REQUIRED):
I1. Left Hand Horizontal Track Assembly
I2. Right Hand Horizontal Track Assembly

BREAKDOWN OF PARTS

J5.
E1.
H1.
F1.
E2.
J9.
E3.
J10.
J1.
J8.
J5.
K1.
A1.
J3.
J6.
F1.
C1.
G1.
B1.
E4.
I4.
J2.
L1.
I1.
I3. Left Hand Vertical Track
I4. Right Hand Vertical Track
J. EXTENSION SPRING ASSEMBLY (AS REQUIRED):
J1. Extension Springs
J2. Spring Restraint Cables
J3. Front Cable Lift Sheaves
J4. Rear Cable Lift Sheaves
J5. 3 Hole Clips (As Required)
J6. S-Hooks (As Required)
J7. Sheave Forks (As Required)
J8. 5/16" - 18 x 3-3/4" Eye Bolts (As Required)
J9. Counterbalance Lift Cables
J10. Hook Plates (As Required)
K. REAR BACK HANGS:
K1. Left Hand And Right Hand Rear Back Hang Assemblies
L. BOTTOM CORNER BRACKETS (AS REQUIRED):
L1. Left Hand And Right Hand Bottom Corner Brackets
3
J5.
J4.
I2.
J10.
J7.
J1.
J9.
J2.
K1.
J8.
J5.
