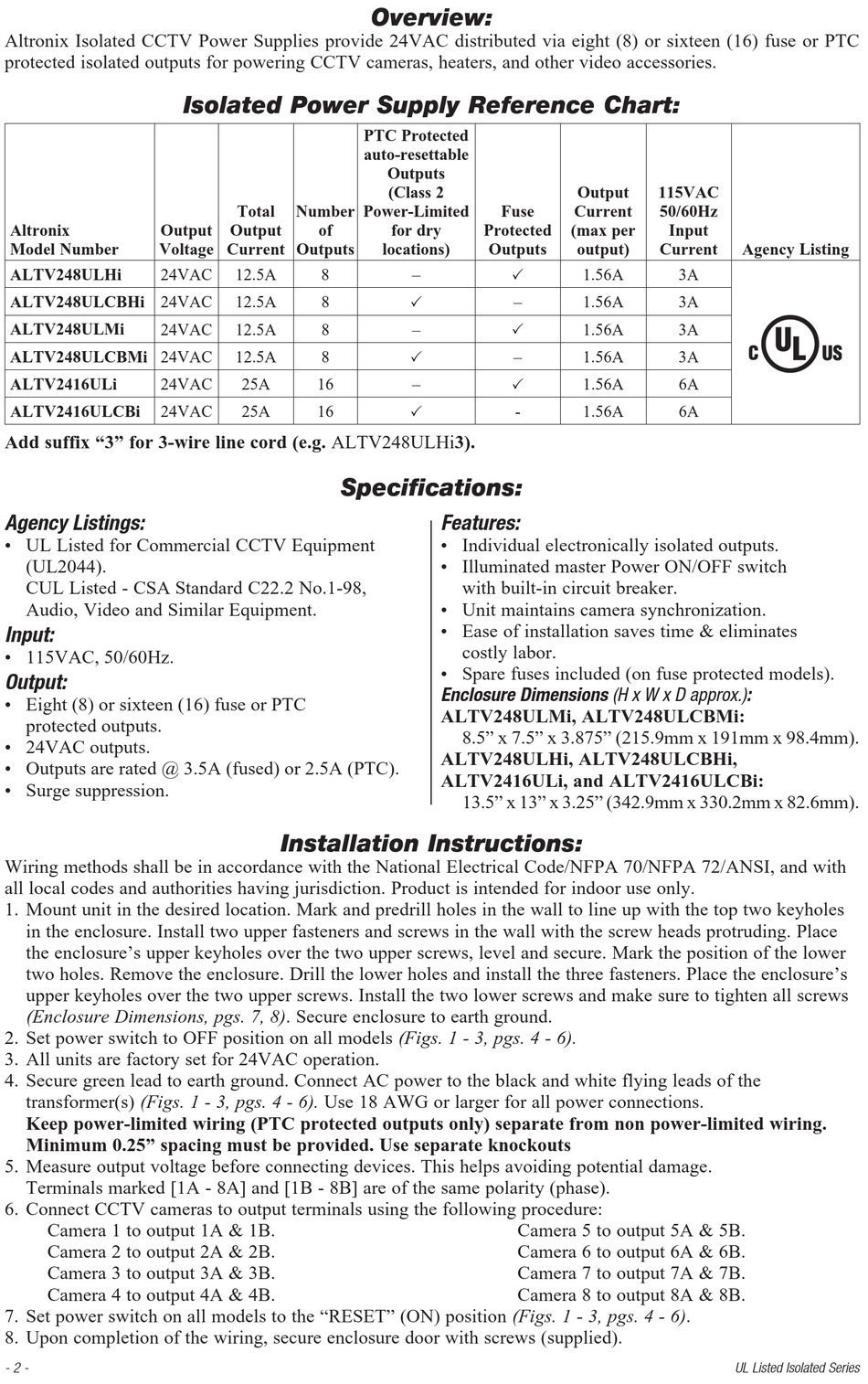

Specifications; Installation Instructions - Altronix ALTV248ULHi Installation Manuals

Altronix Isolated CCTV Power Supplies provide 24VAC distributed via eight (8) or sixteen (16) fuse or PTC
protected isolated outputs for powering CCTV cameras, heaters, and other video accessories.
Altronix Output
Model Number Voltage
ALTV248ULHi 24VAC
ALTV248ULCBHi 24VAC
ALTV248ULMi 24VAC
ALTV248ULCBMi 24VAC
ALTV2416ULi 24VAC
ALTV2416ULCBi 24VAC
Add suffix "3" for 3-wire line cord (e.g. ALTV248ULHi3).
Agency Listings:
• UL Listed for Commercial CCTV Equipment
(UL2044).
CUL Listed - CSA Standard C22.2 No.1-98,
Audio, Video and Similar Equipment.
Input:
• 115VAC, 50/60Hz.
Output:
• Eight (8) or sixteen (16) fuse or PTC
protected outputs.
• 24VAC outputs.
• Outputs are rated @ 3.5A (fused) or 2.5A (PTC).
• Surge suppression.
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with
all local codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes
in the enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place
the enclosure's upper keyholes over the two upper screws, level and secure. Mark the position of the lower
two holes. Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's
upper keyholes over the two upper screws. Install the two lower screws and make sure to tighten all screws
(Enclosure Dimensions, pgs. 7, 8). Secure enclosure to earth ground.
2. Set power switch to OFF position on all models (Figs. 1 - 3, pgs. 4 - 6).
3. All units are factory set for 24VAC operation.
4. Secure green lead to earth ground. Connect AC power to the black and white flying leads of the
transformer(s) (Figs. 1 - 3, pgs. 4 - 6). Use 18 AWG or larger for all power connections.
Keep power-limited wiring (PTC protected outputs only) separate from non power-limited wiring.
Minimum 0.25" spacing must be provided. Use separate knockouts
5. Measure output voltage before connecting devices. This helps avoiding potential damage.
Terminals marked [1A - 8A] and [1B - 8B] are of the same polarity (phase).
6. Connect CCTV cameras to output terminals using the following procedure:
Camera 1 to output 1A & 1B.
Camera 2 to output 2A & 2B.
Camera 3 to output 3A & 3B.
Camera 4 to output 4A & 4B.
7. Set power switch on all models to the "RESET" (ON) position (Figs. 1 - 3, pgs. 4 - 6).
8. Upon completion of the wiring, secure enclosure door with screws (supplied).
- 2 -
Isolated Power Supply Reference Chart:
Total Number
Output of
Current Outputs
12.5A 8
12.5A 8
12.5A 8
12.5A 8
25A 16
25A 16

Specifications:

Installation Instructions:

Overview:
PTC Protected
auto-resettable
Outputs
(Class 2
Power-Limited Fuse
for dry Protected
locations) Outputs
–
P
–
P
–
P
–
P
–
P
-
P
Features:
• Individual electronically isolated outputs.
• Illuminated master Power ON/OFF switch
with built-in circuit breaker.
• Unit maintains camera synchronization.
• Ease of installation saves time & eliminates
costly labor.
• Spare fuses included (on fuse protected models).
Enclosure Dimensions (H x W x D approx.):
ALTV248ULMi, ALTV248ULCBMi:
8.5" x 7.5" x 3.875" (215.9mm x 191mm x 98.4mm).
ALTV248ULHi, ALTV248ULCBHi,
ALTV2416ULi, and ALTV2416ULCBi:
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm).
Camera 5 to output 5A & 5B.
Camera 6 to output 6A & 6B.
Camera 7 to output 7A & 7B.
Camera 8 to output 8A & 8B.
Output 115VAC
Current 50/60Hz
(max per Input
output) Current
1.56A 3A
1.56A 3A
1.56A 3A
1.56A 3A
1.56A 6A
1.56A 6A
Agency Listing
UL Listed Isolated Series
