Installing The Drive Arms - CAME FAST KIT Installation Instructions Manual

Insert the Ø10x14 pin and the straight arm into the shaft of the gearmotor and secure it with the
M10x14 screw and 10x35 washer. Lubricate the pin of the straight arm. Join and secure the two arms
with the M6x10 screw and 6x24 washer. Release the gearmotor and fix the curved arm to the bracket
"A" with the M12x40 screw and the M12 nut, checking it is free moving. For application on the right-
hand side see fig.2.

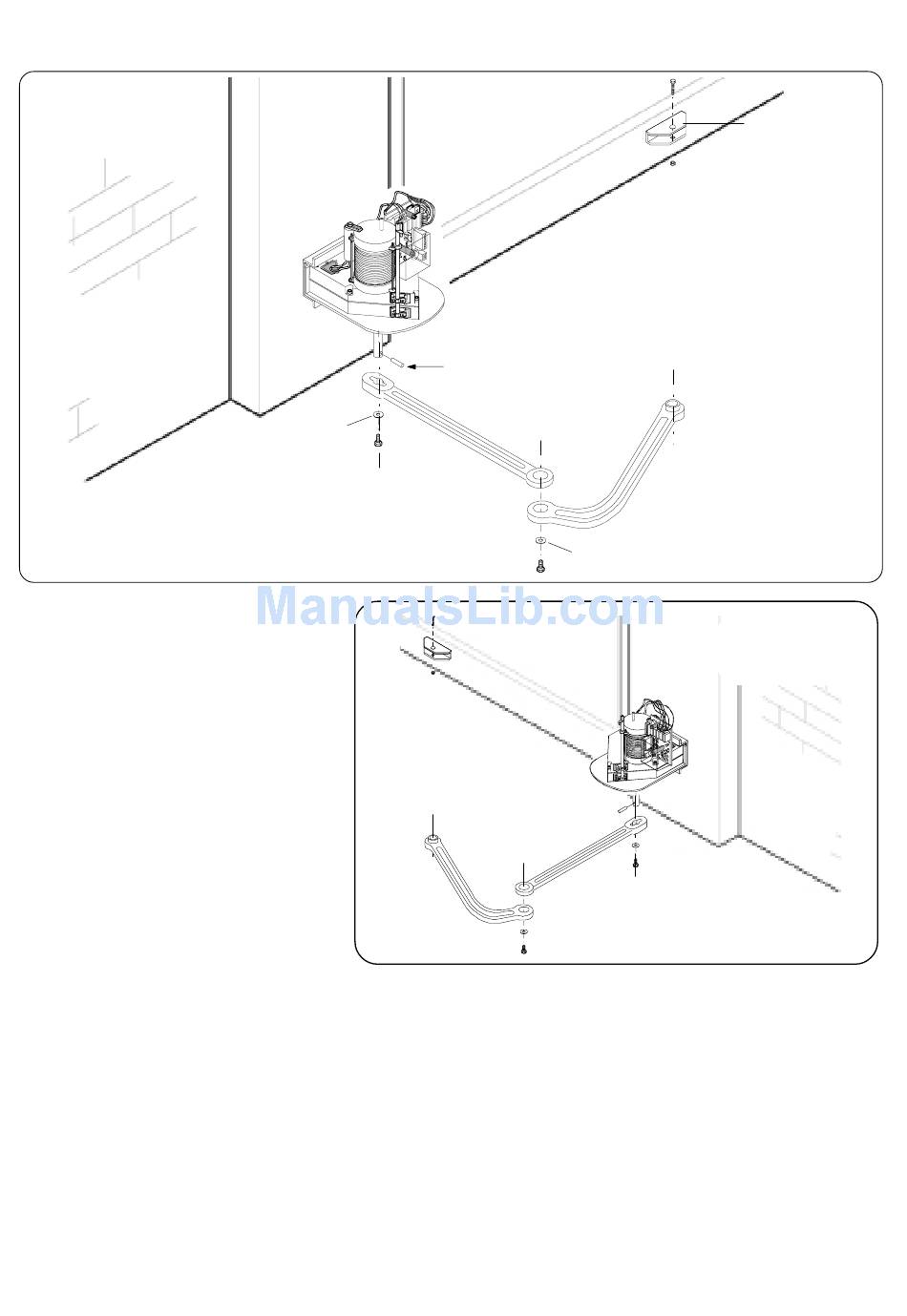

3.2 - Installing drive arms
10x35 10x35 10x35
10x35 10x35
M10x14 M10x14 M10x14 M10x14 M10x14
M12x40 M12x40 M12x40 M12x40 M12x40
Pin
10x40
6x24 6x24 6x24 6x24 6x24
M6x10 M6x10
M6x10 M6x10 M6x10
9
Bracket A
M12 M12
M12 M12 M12
Fig. 2
