1.2 - Mounting the Motor Base Plate

Using suitable anchor bolts or chemical resin for brick pier securely mount the motor plate to the brick
pier. For wooden posts it is advised to fix the motor plate to the post. A threaded bar should be placed
all the way through the post then bolted.
Front view

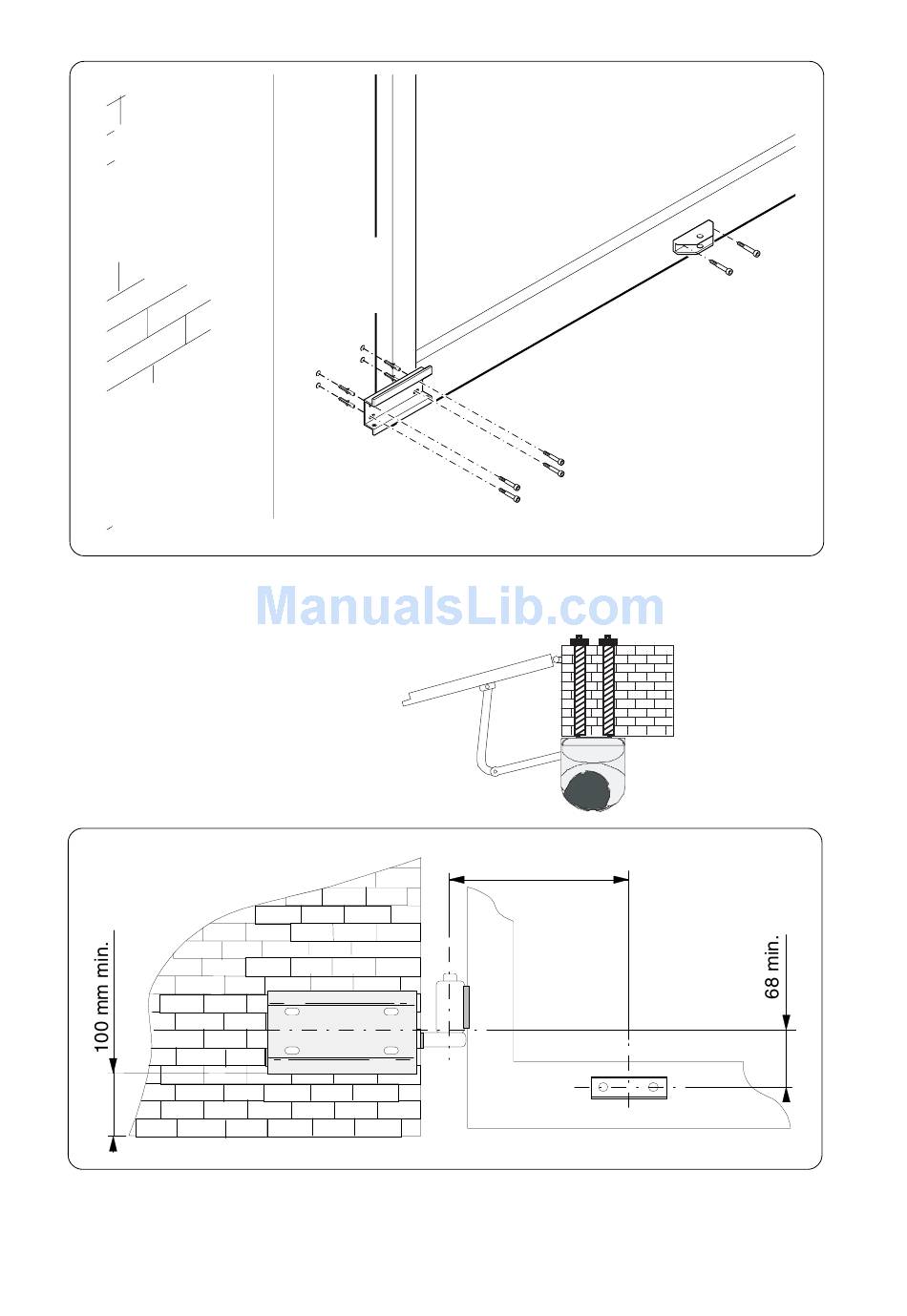

Use M8 screws and ø14 screw anchors to mount the base plate on the pillar. Be sure to respect the
100mm minimum distance from the pavement. Attach bracket "A" to the gate wing (use M6 screws or
welds). Be sure to respect the offsets of 430mm and 68mm.
Base plate
14 14
14 14 14
4
Bracket "A"
M8 M8 M8 M8 M8
430 mm
M6 M6 M6
M6 M6
