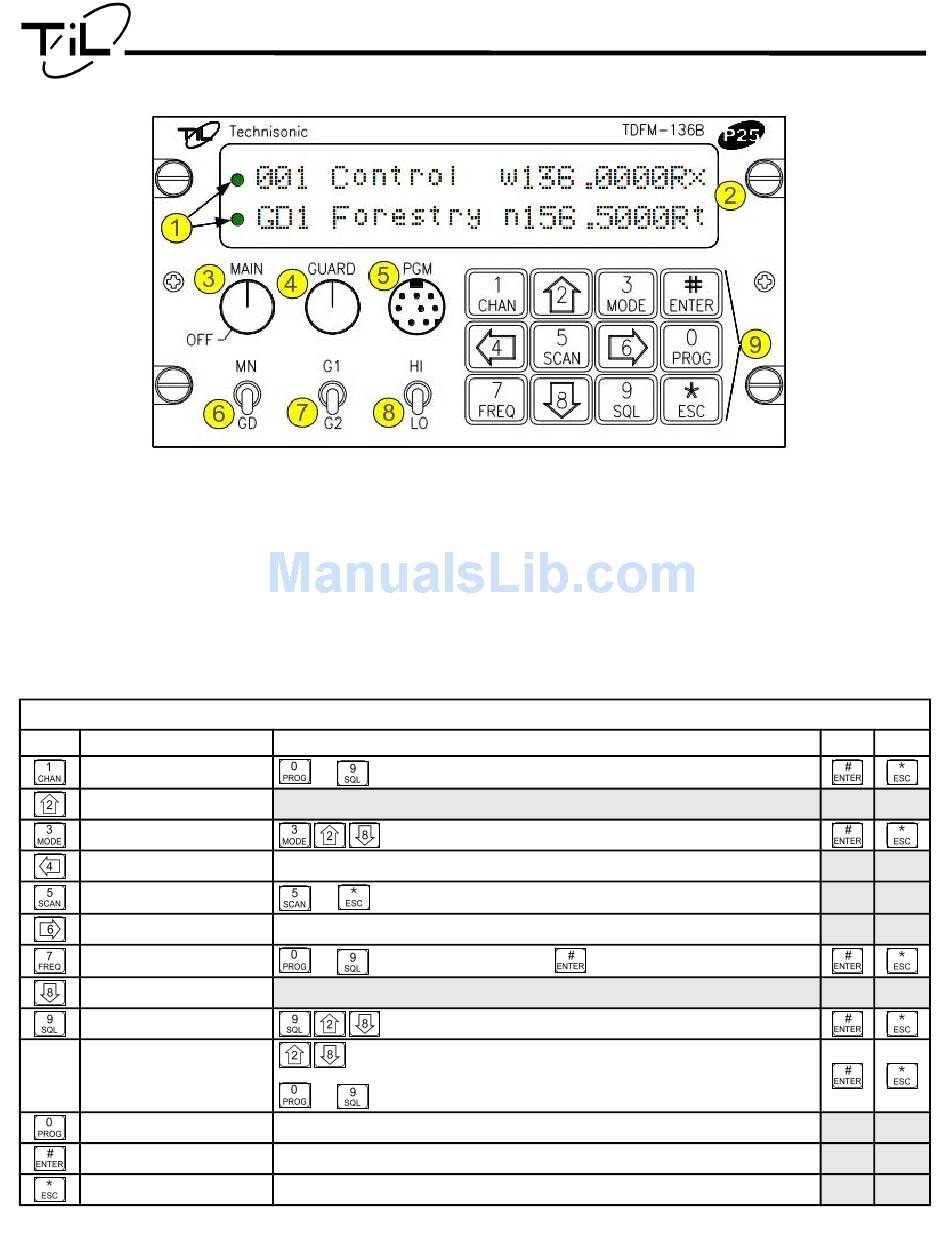

TIL TDFM-136B Quick Reference Manual

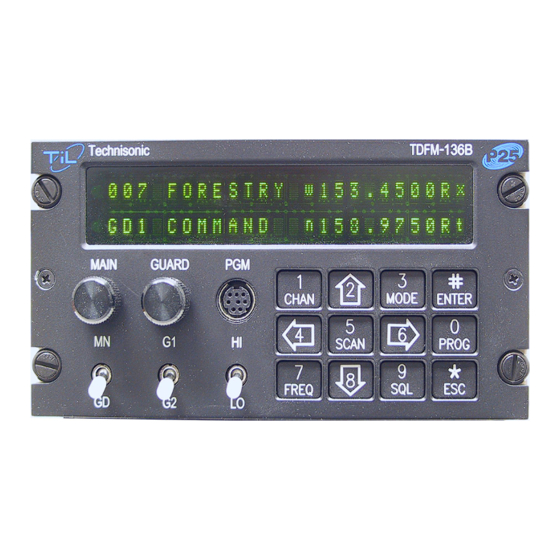

1. LED channel squelch indicators – Lights when signal received (Top: Main, Bottom: Guard).
2. Channel parameter display – (2 line by 24 character LED display) (Top: Main, Bottom: Guard).
3. MAIN Multi-function rotary encoder (default: Main volume, press for ON, press & hold for OFF).
4. GUARD Multi-function rotary encoder (default: Guard volume, press for Squelch defeat).
5. Data port – for use with KVL 3000+ keyloader or TDP-136 Programming software.
6. MN/GD (Toggle Switch) – Selects active channel (main or guard), for transmit and edit.
7. G1/G1 (Toggle Switch) – Selects guard memory (GD1 or GD2), for transmit and edit.
8. HI/LO (Toggle Switch) – Selects transmit power, high (10W) or low (1W).
9. KEYPAD (12 Keys) – Control radio functions, 3 command levels as shown below.
Cmnd Function
SELECT MEMORY
DISPLAY BRIGHTER
EDIT OPERATING MODE
SCROLL MEMORY DOWN
SCAN ON/OFF
SCROLL MEMORY UP
EDIT FREQUENCY
DISPLAY DIMMER
EDIT SQUELCH MODE
EDIT SQUELCH VALUE
GO TO NEXT LEVEL
TOGGLE HOME/CURRENT
TOGGLE TALK AROUND
TiL 08RE394
For Radio Firmware: 1.x.x
Command Level 1: press the 'Cmnd' key. . .
TO ENTER CHANNEL MEMORY (001 to 230)
STEP UP/DOWN THROUGH OPERATING MODES
SCROLL DOWN THROUGH THE PROGRAMMED MEMORY POSITIONS
OR STOP SCAN
SCROLL UP THROUGH THE PROGRAMMED MEMORY POSITIONS
TO SELECT FREQUENCY THEN
STEP UP/DOWN THROUGH SQUELCH MODES. Tx FOLLOWS Rx.
STEP UP/ DOWN THROUGH: TONES, CODES, TG & NAC (HEX)
TO DECIMAL EDIT FOR NOISE SQL VALUE (00 TO 15)
GO TO THE NEXT HIGHER COMMAND LEVEL
TOGGLE BETWEEN 'HOME' MEMORY AND CURRENTLY DISPLAYED MEMORY.
IF DUPLEX MEMORY, THEN USE RX PARAMETERS FOR TX.
Edit Keys
Tx FOLLOWS Rx.
TDFM-136B

Quick Reference Guide

OK Exit
