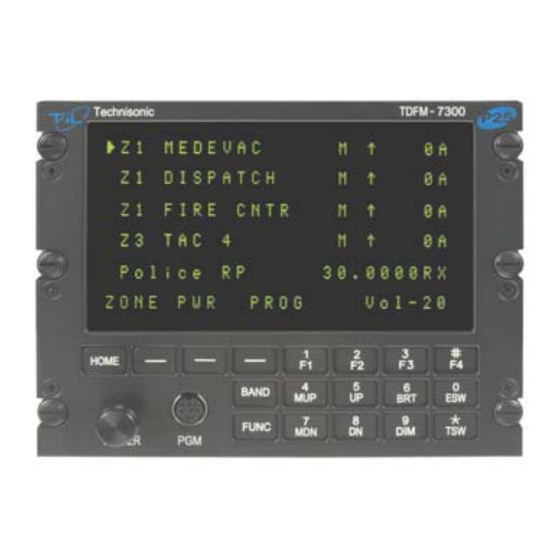

TDFM-7300
MULTIBAND P25 AIRBORNE TRANSCEIVER
Installation and
Operating Instructions
TiL Document No. 08RE389
Rev. A Issue 4
AUGUST 2010
Technisonic Industries Limited
240 Traders Boulevard, Mississauga, Ontario L4Z 1W7
Tel: (905) 890-2113 Fax: (905) 890-5338
www.til.ca
Copyright 2009 by Technisonic Industries Limited. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDFM-7300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TIL TDFM-7300

Summary of Contents for TIL TDFM-7300

  • Page 1 TDFM-7300 MULTIBAND P25 AIRBORNE TRANSCEIVER Installation and Operating Instructions TiL Document No. 08RE389 Rev. A Issue 4 AUGUST 2010 Technisonic Industries Limited 240 Traders Boulevard, Mississauga, Ontario L4Z 1W7 Tel: (905) 890-2113 Fax: (905) 890-5338 www.til.ca Copyright 2009 by Technisonic Industries Limited. All rights reserved.
  • Page 3 REVISION HISTORY [ 08RE389 ] SECTION DESCRIPTION DATE Edited by - PAGE - CR# 08415 updated manual to issue 1 DEC 2008 Issue 2 Title Page changed to new template Revision history column “approval” renamed to “edited by”and updated Table of Contents Para 1-1 and 1.2 updated Physical dim.
  • Page 5 Changes or modifications not expressly approved by Technisonic Industries could void the user’s authority to operate the equipment. WARRANTY INFORMATION The Model TDFM-7300 Transceiver is under warranty for one year from date of purchase. Failed units caused by defective parts, or workmanship should be returned to: Technisonic Industries Limited...
  • Page 6 Technisonic Industries Ltd. WARNING AND DISCLAIMER This manual is designed to provide information about the TDFM-7300. Every effort has been made to make this manual as complete and accurate as possible. TRADEMARK NOTICES TDFM-7300 Transceivers contain two-way radio protocols licensed from Motorola, Inc.

  • Page 7: Table Of Contents

    CHANNEL UP / DOWN ..................3.15 LH DATA, SB9600 BUSY, OPTB+, CTS OUT, BOOT DIN, RTSBIN and RS232DIN ..3.16 PANEL BACKLIGHTING ..................3.17 ANTENNA TUNER CONTROL LINES ..............3.18 POWER JUMPER ....................TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...
  • Page 8 FIGURE TITLE PAGE Front Panel Controls – TDFM-7300 Series Transceivers .......... PC 7000(II) Programming cable for TYPE II radios P/N 047365-1 ......Encryption Keyload cable for TYPE II radios P/N 037348-1 ........PC 6000(II) Programming cable for TYPE II radios P/N 047366-1 ......

  • Page 9: General Description

    AES and/or DES-OFB encryption with OTAR in any of the available modules. Bands 1 through 4 on the TDFM-7300 are not normally frequency agile. In order to have the ability to change the frequencies at the front panel, the FPP (front panel programming) option must be ordered.
  • Page 10 TECHNISONIC INDUSTRIES LIMITED www.til.ca The following part numbers represent typical TDFM-7300 model variations: 3-band TDFM-7300 Variations Note: L = Lo-band VHF (30-50 MHz) analog module in examples below. P/N 061245-1-73L188 One VHF and two 800 MHz, type I modules with Green display.
  • Page 11 TECHNISONIC INDUSTRIES LIMITED www.til.ca TDFM-7300 Model Variations with type II Modules (-3,-4) 4-Band TDFM-7000 Model Variations TDFM-7300, P/N 061245-3-73YXXX/P73ZZZ GREEN display. TDFM-7300, P/N 061245-4-73YXXX/P73ZZZ RED display. TDFM-7300NV, P/N 061245-3-73YXXXNV/P73ZZZ GREEN NV display. 5-Band TDFM-7000 Model Variations (-73YXXXX) TDFM-7300, P/N 061245-3-7YXXXX/P73ZZZ GREEN display.

  • Page 12: Technical Characteristics

    0.35 0.45 *Digital 5% BER (12.5kHz) 0.25 0.25 0.25 **Analog with 12dB SINAD 0.25 0.25 0.25 Selectivity in dB: 25 kHz Channel 12.5 kHz Channel Intermodulation (dB) * ** TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...
  • Page 13 Intermodulation * ** *Measured in digital mode per TIA / EIA IS 102.CAAA under nominal conditions. ** Measured in analog mode per TIA / EIA 603 under nominal conditions. TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...
  • Page 14 -70 dB Image Attenuation -60 dB FM Acceptance ± 6 kHz Hum and Noise Better than 40 dB Audio Distortion less than 5% Antenna Conducted Emission less than -70 dBm TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...
  • Page 15 -60 dB below carrier level FM Hum And Noise -40 dB Audio Input 50 mV at 2.5 kHz into input circuit for ±3.5kHz deviation, adjust. Audio Distortion Less than 5% TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...
  • Page 16 TECHNISONIC INDUSTRIES LIMITED www.til.ca Page left intentionally blank TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...

  • Page 17: Operating Instructions

    It is possible to connect the transceiver such that both methods are used. FRONT PANEL Refer to the diagrams below: FIGURE 2-1 Front Panel Controls – TDFM-7300 Series Transceivers TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...

  • Page 18: Power Switch

    For example, programming a soft key to CHAN would be redundant since there is already a channel function using the knobs. Using the CHAN soft key would also not update the channel number on the display, causing some confusion. TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...

  • Page 19: Band Key

    The following functions are available: Cross Band You can select any two bands to cross band repeat. The Repeat repeat function is semi-duplex. This means the TDFM-7300 will retransmit from one band to another in both directions but not simultaneously. Configuration Enters the configuration menu (see 2.18 configuration...
  • Page 20 NOTE: It is possible to use Motorola’s Customer Programming Software (CPS™) to alter the default keypad settings of the TDFM-7300 radio. However if custom key settings are chosen it will not be possible for Technisonic to help the Pilot or other Radio User through operational difficulties.

  • Page 21: Mup(4) And Mdn(7) Keys (Memory Up And Down Keys)

    TECHNISONIC INDUSTRIES LIMITED www.til.ca Bands 1 through 4 of the TDFM-7300 Transceiver are programmable by Motorola CPS™. The following settings may be programmed for each Conventional Channel in a module: Tx Frequency Zone Tx PL/DPL Code Channel Rx Frequency Name...

  • Page 22: Esw(0) Key (Ergo Switch Key)

    Switch on the transceiver as described in 2.3. Select the desired band by pressing the BAND key. Select the TDFM-7300 on the aircraft audio panel. Press the knob again so that CHAN shows up on the bottom right of the display. Rotate the knob until the desired channel or talk group is selected.

  • Page 23: Customer Programming Software (Cps)

    PL tones etc. unless the Front Panel Programming (FPP) option has been purchased in each band. A Programming cable is required to connect the computer to the TDFM-7300. Bands 1 - 4 in the TDFM-7300 are considered a XTS-5000 model III portable by the CPS™ software. To program a band in the transceiver, it must be selected by pressing the BAND key before running the CPS™.

  • Page 24: Pc 7000(Ii) Programming Cable For Type Ii Radios P/N 047365-1

    TECHNISONIC INDUSTRIES LIMITED www.til.ca FIGURE 2.2: PC 7000(II) Programming cable for TYPE II radios P/N 047365-1 FIGURE 2.3: Encryption Keyload cable for TYPE II radios P/N 037348-1 TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...

  • Page 25: Pc 6000(Ii) Programming Cable For Type Ii Radios P/N 047366-1

    “Port Selection”. Select the com port that is the virtual port created by the adaptor. Click APPLY, then OK. The CPS should now work with the USB to serial adaptor. TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...

  • Page 26: Configuration Menu

    2.17 CONFIGURATION MENU: Some features of the TDFM-7300 transceiver can be configured to the user’s preference. To enter the configuration menu, turn the unit on while simultaneously pressing the F4, ESW and TSW keys. Hold the keys until the display reads ‘Configuration Menu’. The following menu items can be changed or modified.

  • Page 27: Keyloading Mode

    When keyloading is done, remove the keyloader cable and press the EXIT key to reboot the transceiver back to normal operation TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4 2-11...

  • Page 28: Front Panel Programming (Fpp) Mode (Bands 1 - 4)

    NXT soft key to get to the next character. Press ‘OK’ when done. There will be a delay while the channel is saved, then the display will return to normal. TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4 2-12...
  • Page 29 136.5 203.5 TABLE 2.1 TDFM 7300 Series PL/MOT Codes The following is a list of TDFM 7300 DCS/DPL CODES: TABLE 2.2 TDFM 7300 Series DPL Codes (All Bands) TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4 2-13...

  • Page 30: Flash Upgrade Mode

    CPS. When flash upgrade is completed, press the EXIT soft key to reboot the 7300 to normal operation. For detailed instructions refer to TIL document 106517 “FLASH UPGRADE PROCEDURE FOR TDFM 6000/7000/7300 SERIES RADIOS”.

  • Page 31: Vhf Low Band (Band 5) Operation - Analog Module Variances

    Technisonic’s MultiTDP software which is supplied on a CD with the TDFM-7300 and from the TIL web site. (www.til.ca) The files are compatible with those used on our TFM-550 model. The same programming cable as is used for bands 1 through 4 is required.
  • Page 32 TECHNISONIC INDUSTRIES LIMITED www.til.ca This page left intentionally blank. TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4 2-16...

  • Page 33: Installation Instructions

    TRANSCEIVER INSTALLATION The TDFM-7300 Transceiver is designed to be Dzus mounted and should be installed in conjunction with an IN-7300 installation kit. See Figure 3-1 for an outline drawing of the unit with dimensions to facilitate the installation.

  • Page 34: Outline Drawing

    TECHNISONIC INDUSTRIES LIMITED www.til.ca FIGURE 3-1 Outline Drawing for Model TDFM-7300 TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...

  • Page 35: Pin Locations And Connections

    Description Ground Audio Combined PTT 4 PTT Combined Audio 4 Mic 4 Mic Combined On Power Speaker Combined TABLE 3-2 Wire connections on a 9 Pin FEMALE D Connector TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...

  • Page 36: Installation (Wiring Instructions)

    PTT5 Mic 5 TABLE 3-3 Wire connections on a 15 Pin [high-density] FEMALE D Connector INSTALLATION (WIRING INSTRUCTIONS) Figure 3-2 shows all required connections and recommended wire sizes for the TDFM-7300 transceiver. MAIN GROUND: J1 (PINS 1 AND 14) Both pins should be connected to ground. The main ground is internally connected to the chassis.
  • Page 37 3050B. Connect according to the manufacturer’s instructions. In the case of the FLX- 3050B, the tune indicator which is normally connected to a light, can be connected to pin 10 so that the tuning indication will show on the TDFM-7300 display. If a passive antenna is used, these lines shall remain unconnected.
  • Page 38 TECHNISONIC INDUSTRIES LIMITED www.til.ca FIGURE 3-2a Wiring connections for the TDFM-7300 Transceiver TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...
  • Page 39 TECHNISONIC INDUSTRIES LIMITED www.til.ca FIGURE 3-2b Wiring connections notes for the TDFM-7300 Transceiver TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...
  • Page 40 TECHNISONIC INDUSTRIES LIMITED www.til.ca This page left intentionally blank. TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4...

  • Page 41: Post Installation Emi Test

    3.19 POST INSTALLATION EMI TEST PURPOSE The purpose of this test is to identify any interference that the TDFM-7300 transceiver may cause with existing aircraft systems. TEST CONDITIONS The TDFM-7300 transceiver should be installed and function tested. The antenna VSWR should be checked.
  • Page 42 For example it is permissible for a VFR certified GPS to lose navigation capability while the TDFM-7300 unit is transmitting, providing that it recovers properly and promptly, but it is not permissible for an IFR Approach certified GPS to be affected in the same way.
  • Page 43 Determine if the image frequency for the VHF Comm falls within the range of the TDFM- 7300. If so, select a set of frequencies that will cause the TDFM-7300 to be set as close as possible to the image frequency. Any one of the many possible sets will suffice. Record those values in the spaces provided in the following chart.
  • Page 44 Determine if the image frequency for the VOR/ILS Nav falls within the range of the TDFM- 7300. If so, select two sets of frequencies that will cause the TDFM-7300 to be set as close as possible to the image frequency. Choose one set in the localizer frequency range and one in the VOR frequency range.
  • Page 45 With a portable glide slope generator, provide enough signal to firmly activate the indicator needle and hide all flags. Increase the signal level by 3 dB. Modulate the TDFM-7300 transmitter on the following frequencies for at least 20 seconds. Observe the Glide Slope displays.
  • Page 46 334.7 (108.1) 167.35 334.7 (108.1) 33.47 NOTES: Operate the TDFM-7300 transmitter on the following frequency for at least 20 seconds. Observe the Transponder for any spurious replies or loss of reply to test set. FREQUENCIES TRANSPONDER #1 TRANSPONDER #2 TDFM-7300...
  • Page 47 TECHNISONIC INDUSTRIES LIMITED www.til.ca Modulate the TDFM-7300 transmitter on the following frequencies for at least 20 seconds. Observe the DME displays. Look for loss of distance information on the display. FREQUENCIES RESULTS DME 1 TDFM-7300 PASS FAIL 978 (108.0) 1020 (112.1)
  • Page 48 Frequency #2 Frequency #3 At a safe altitude engage the autopilot or stability augmentation system. Modulate the TDFM-7300 transmitter on the above frequencies for at least 20 seconds. Observe any effect on the autopilot or stability augmentation system. Observations: Perform a coupled ILS approach to the aircraft's certified limits. Modulate the TDFM-7300 transmitter on the above frequencies for at least 20 seconds.
  • Page 49 ADF 1 & 2 Glideslope 1&2 (UHF Lo, UHF Hi, and 800 MHz) VOR/LOC 1&2 (UHF Lo, UHF Hi, and 800 MHz) Compass Directional Gyro Fuel Pressure Oil Temp TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4 3-17...
  • Page 50 Amps Bus Voltage Fuel % Torque % Annunciators Digital Clock Oil Pressure DME 1&2 (VHF, UHF Lo, and 800 MHz) GPS 1&2 (UHF Lo and 800 MHz) TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4 3-18...
  • Page 51 TECHNISONIC INDUSTRIES LIMITED www.til.ca STEP SYSTEM PASS FAIL NOTES NOTES: TDFM-7300 Installation & Operating Instructions TiL 08RE389 Rev A Issue 4 3-19...

  • Page 52: Warranty

    Technisonic. This Warranty shall not be transferable or assignable to any other persons, firms or corporations. For warranty registration please complete the on-line Warranty Registration Form found at www.til.ca.
