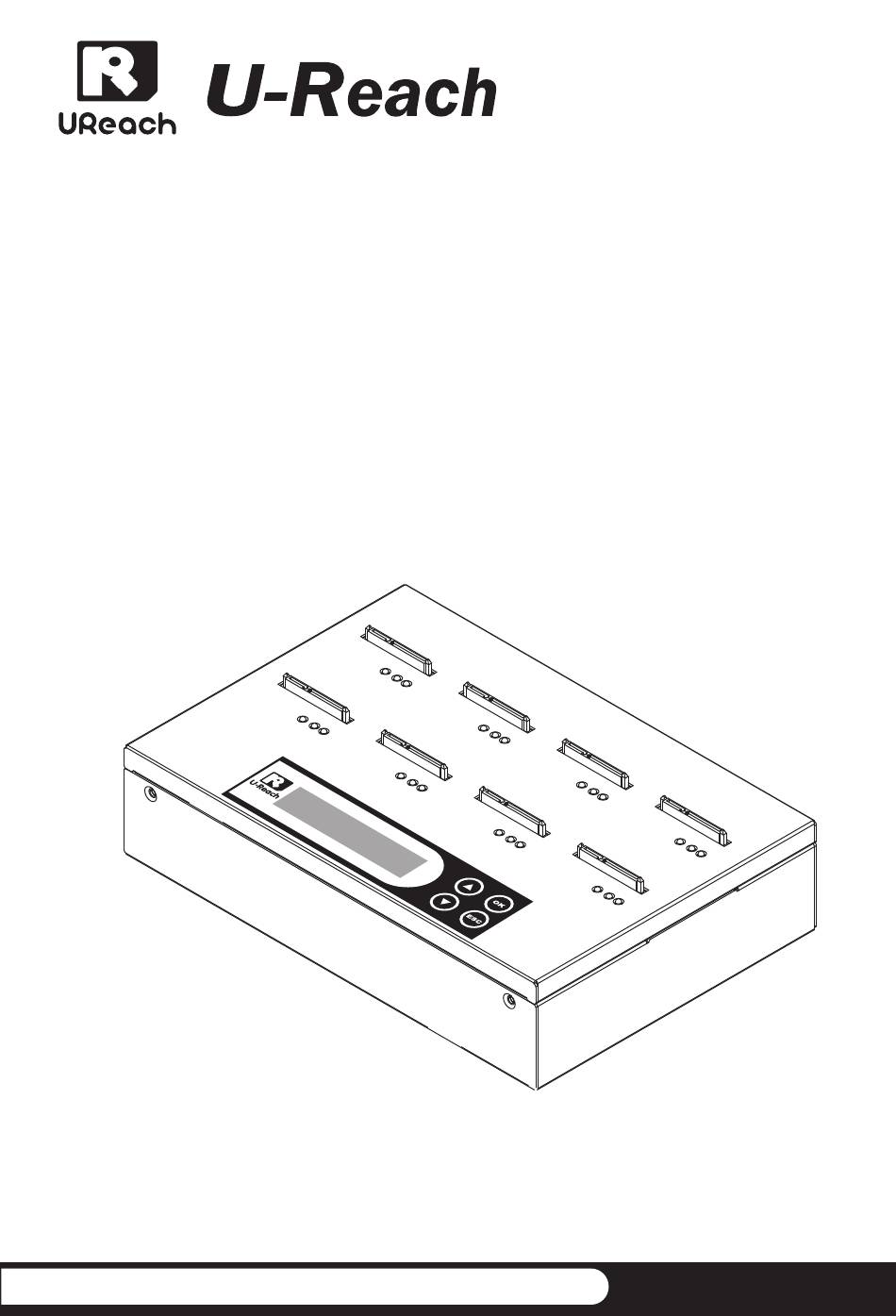

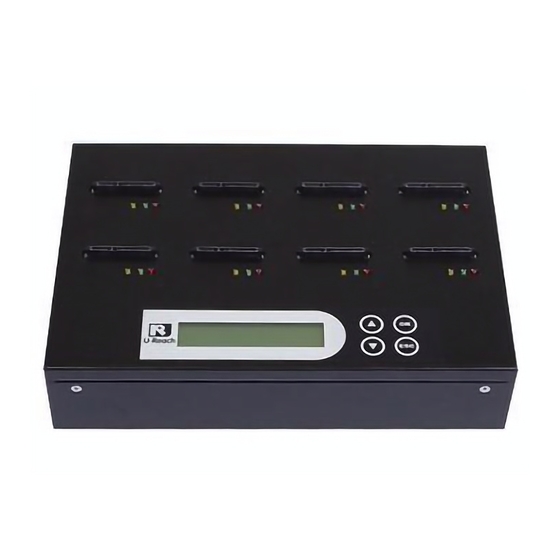

  • Page 1 SATA DOM Duplicator User Guide V1.0 www.ureach-inc.com the Expert of Duplicators...

  • Page 2: Disclaimer Of Warranties

    Disclaimer of Warranties Disclaimer of Warranties All UREACH flash duplicators are made specifically for data backup with legal authorities from copyright owners. Any unauthorized action of copyright is strictly prohibited, and UREACH-INC disclaims all warranties or representations of illegal actions by users. UREACH-INC also disclaims any liability for any loss or damage due to not being able to perform its undertakings or provide any of the services attributable to any events or circumstances beyond our control.

  • Page 3: Before You Start

    Before you start Important Notice • Read the complete operation instruction carefully contributes to better operation. • Make sure the source device is correct and workable. • To guarantee data consistency, it is strongly suggested that the capacity of source and targets should be the same. •...

  • Page 4: Table Of Contents

    Index Content ▪ Disclaimer of Warranties 6.6 Erase Pattern ▪ Before you start 6.6.1 ONE Byte ▪ Index Content 6.6.2 4MB Byte ♳ Introduction 6.7 Language 1. Overview 6.8 Restore Default ♶ FAQ 2. Features ♷ Specification 3. Package Contents 4.

  • Page 5: Introduction 1.Overview

    Introduction Introduction 1.Overview This duplicator series is a high-end industrial standard SATA DOM duplicator that makes DOM duplication fast and easy. There is no computer or additional software required. It supports 1 to 7 targets duplication and high data transfer speed up to 3.9GB per minute.

  • Page 6: Package Contents

    Introduction 3.Package Contents SATA DOM Duplicator Power Adapter/Power Cord SATA DOM Adapter User Guide...

  • Page 7: Product Overview

    Introduction 4.Product Overview A. System Overview Up Side Socket Red: Fail Green Flashing: Processing Green Remaining: Pass Yellow: Powering Back Side Power Switch Power Supply B. LCD Configuration Forward Confirm/OK Cancel/Back Backward...

  • Page 8: Other Adapters That Can Be Applied

    Introduction 5.Other adapters that can be applied mSATA ↑ SATA MicroSATA ↑ SATA CF ↑ SATA CFast ↑ SATA Adapter Device supported...

  • Page 9: Function Table

    Function Table Function Table Function Description To copy source DOM to multiple target DOMs. Refer to function “6.1 1. Copy Copy Area” for 3 different copy mode selection. 2. Compare To compare data bit for bit between source and copied DOMs. It makes copy first and then compare copied DOM with source 3.
  • Page 10 Function Table 6.1.1 System and files Set to copy source HDD’s data area only. 6.1.2 ALL partition 6.1 Copy Area Set to copy source HDD’s all partitions. Setup copy mode. 6.1.3 Whole HDD Set to copy the whole source HDD. 6.2 Skip Error Set the error volume of source DOM that you want to ignore while copying.

  • Page 11: Function Introduction

    Function Introduction Function Introduction 1.Copy It copies data from source DOM to target DOM. Please make sure you have chosen the correct copy mode you would like to use. About the three copy modes, please refer to function [6.1 Copy Area] for details. DOM Duplicator 1.Copy The default setting of [6.1 Copy Area] is “System and Files”.

  • Page 12: Compare

    Function Introduction c. When finishing copying, the copied result will be showed on the LCD. Quantity of copy pass Quantity of copy fail Pass: 2 Fail: 0 Time 19:19 Total copied time 2.Compare This function is used to check the correctness of the copying result. After finishing copying, go to function 2 and press OK to start executing comparing process.

  • Page 13: Quick Erase

    Function Introduction 4.1 Quick Erase The function will ONLY erase the index of the DOM, which is the quickest way to erase it. Quick Erase will damage the data in DOM, please make sure you have backup all important data before using this function. 4.2 Full Erase The function will erase the whole sectors on the target DOM.

  • Page 14: Dod Erase Comp

    Function Introduction 4.4 DoD Erase Comp Besides DoD erase, this function will also execute compare function to make sure the random bit was correctly written. This way of erase i s t o e r a s e D O M o v e r e a c h s e c t o r t h r e e t i m e s : t h e f i r s t t i m e w i t h z e ros (0x00), second time with 0xFF and the third time with r a n d o m c h a r a c t e r s .

  • Page 15: Update System

    Function Introduction 5.2 Update System This function is used to update the system firmware. Please follow the following steps to execute “Update System”. a. Select function [5.2.2 Create Update HDD]. [Update System] 2.Create Update HDD b. Format DOM.(Create a 2GB FAT partition) Do FORMAT HDD#1 Confirm ? The purpose of formatting DOM before updating system...

  • Page 16: Setup

    Function Introduction 6.Setup 6.1 Copy Area 6.1.1 System and Files It will copy source DOM’s System and Files instead of the whole HDD. The system will analyze the source HDD and identify the data area to copy. As long as the source DOM’s data within the target HDD’s space, the copy will be processed.

  • Page 17: Whole Hdd

    Function Introduction When choosing “All Partitions Copy”,only 120G data will be copied, and it just takes 37.5% time compared to “Whole HDD Copy’. The target HDD will be exactly the same as source HDD after copy. 6.1.3 Whole HDD This mode will copy the entire HDD, regardless of the content, format, partition, or free space, and it will take much more time to duplicate the source DOM completely.

  • Page 18: Skip Error

    Function Introduction 6.2 Skip Error This function can set the number of errors you would like to skip during the copying process. [Skip Error] If the DOM is very critical for content correctness, it is strongly recommended to keep the Skip Error to be “0”. 6.3 Erase Master This function is used to set if erasing the source DOM or not.

  • Page 19: Skip Unknown

    Function Introduction 6.4.2 Skip Unknown This setting is to skip the unknown area that the system can’t identify its format during the copying process. [Unknown Format] Skip Unknown 6.5 Transfer Rate You can select the best transfer rate from UDMA 2 to UDMA 4 for your DOM duplication progress.

  • Page 20: Language

    Function Introduction 6.7 Language This setting is to set the system’s language interface. [Language] English 6.8 Restore Default This setting is to go back to the manufacturer’s default setting.

  • Page 21: Faq

    Q4: Except for SATA DOM, can this duplicator copy other HDDs or flash? A4: Yes, this SATA DOM duplicator can also support SATA HDD, IDE HDD, mSATA, Micro SATA, CF, and CFast. Most of them need additional...

  • Page 22: Specification

    Specification Specification Product Name SATA DOM Target Operation Stand Alone Interface SATA Other interfaces supported mSATA/ Micro SATA/ CF/ CFast Power Supply(Adapter) 12V, 5A Buffer 128MB Display Monochrome LCD display Control Button 4 push buttons ( ▲ , ▼ ,OK, ESC ) LED(Yellow/Green/Red) on each slot Supported Language English, Japanese...
  • Page 24 www.ureach-inc.com...
