TLE9844-2QX Application Kit User's
Manual
Product Family: TLE984xQX

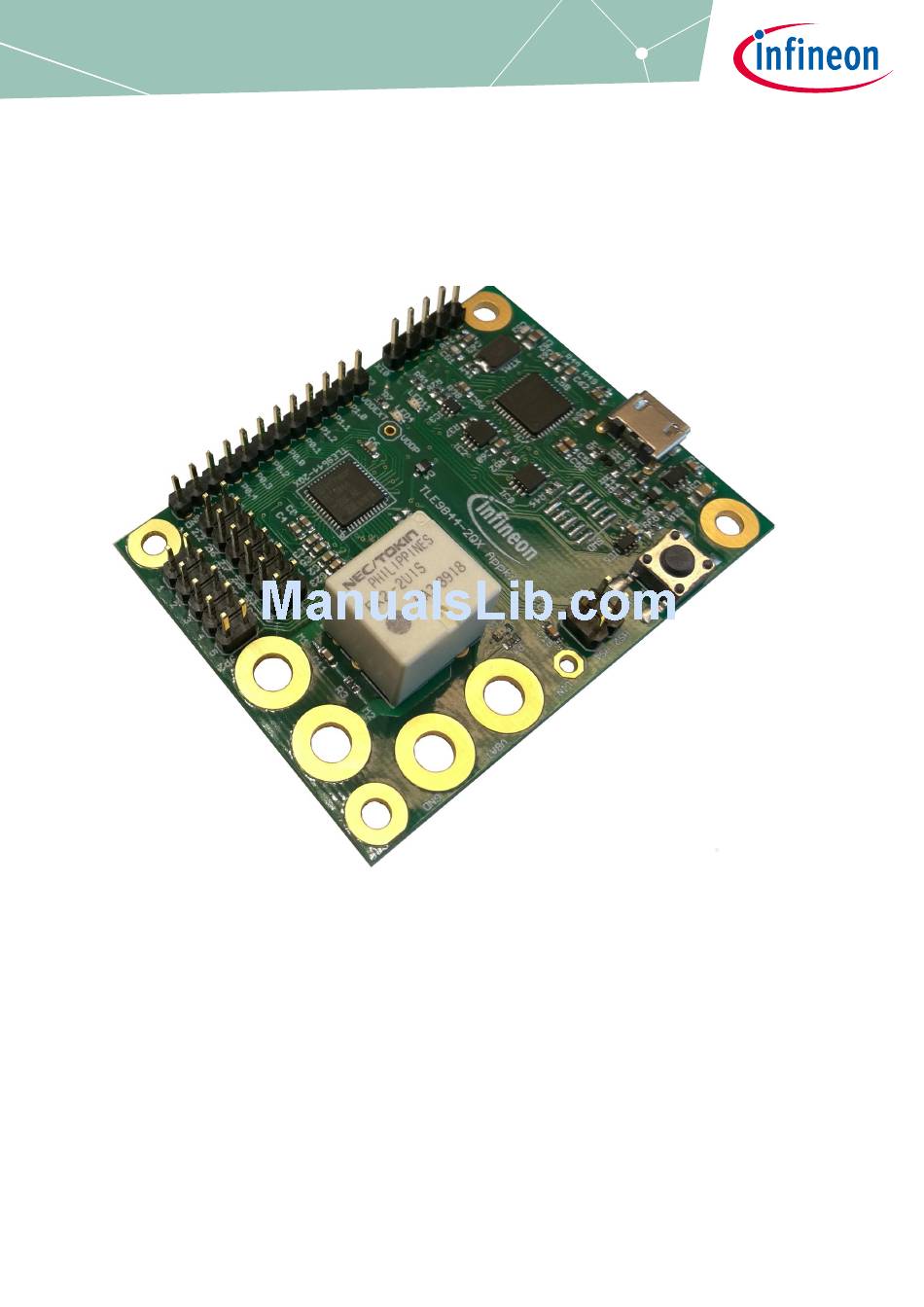

Figure 1
TLE9844-2QX Application Kit 2-Channel Relay

About this document

Scope and purpose
The TLE9844-2QX Appkit is designed to evaluate hardware and software functionalities of the
TLE9844-2QX in an application similar designed shape.
The 2-Channel Relay is connected to the integrated low side switches to drive DC motors bidirektionally.
This documentation describes the basic use of the TLE9844-2QX Appkit.
Note:
This Evaluationboard is not optimized for EMC behavior.
Intended audience
This Document is for everyone who works with the TLE9844-2QX Appkit
TLE9844-2QX Application Kit User's Manual
www.infineon.com/TLE984x
1
Rev. 1.0
2018-04-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLE9844-2QX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infineon Technologies TLE9844-2QX

Summary of Contents for Infineon Technologies TLE9844-2QX

  • Page 1: About This Document

    About this document Scope and purpose The TLE9844-2QX Appkit is designed to evaluate hardware and software functionalities of the TLE9844-2QX in an application similar designed shape. The 2-Channel Relay is connected to the integrated low side switches to drive DC motors bidirektionally.

  • Page 2: Table Of Contents

    TLE9844-2QX Installation ........

  • Page 3: Concept

    The TLE9844-2QX Appkit provides an application near circuit to evaluate relay based bidirectional dc motor applications. The TLE9844-2QX device is placed near a 2-Channel Relay. The board is protected against reverse polarity of input voltage supply. GPIOs, high voltage monitor PINs and high side switches are accessible via pin head connectors.

  • Page 4: Interconnections

    These Pins are capable to measure voltages on battery voltage level, directly. The second Pin head row is connected to GND. Analog Pins The 5V Analog Channels of the TLE9844-2QX can be accessed at this pin row. Their name suffix is P2.x. TLE9844-2QX Application Kit User’s Manual Rev. 1.0...
  • Page 5 For operating the relay, a 12V supply is mandatory. LIN Interface This connector is a direct access to the LIN Interface of the TLE9844-2QX. The LIN Interface can be used to establish halfduplex connections to other boards or modules for evaluation. The example code library provides example projects for LIN master and slave low level drivers.

  • Page 6: Communication Interfaces

    A virtual COM port provided by Segger driver enables a PC – board – communication via UART. The UART2 module of TLE9844-2QX uses the pins P1.0 (transmit) and P1.1 (receive). Those are connected to the XMC4200, which emulates Rx and Tx on PC side with Segger firmware. Though they can be disconnected physically, bidirectional level shifters ensure that the XMC pins are hi-Z in case the virtual COM port is not used.

  • Page 7: Software Toolchain

    TLE9844-2QX Application Kit User’s Manual Software Toolchain Software Toolchain Keil µVision 5 The recommended Integrated Software Developement Environment is Keil® µVision5®. Infineons embedded Power family is suported. For more information about the Toolchain go to: www.keil.com Infineon Config Wizard In addition to the IDE, Infineon® provides the ConfigWizard. The tool is designed for code configuration, in combination with the IDE.

  • Page 8: Schematic And Layout

    TLE9844-2QX Application Kit User’s Manual Schematic and Layout Schematic and Layout Figure 6 schematic sheet: TLE9845QX with PN-MOSFET halfbridge and On Board Debug Interface Note: This is a very simplified example of an application circuit and bill of material. The function must be verified in the application.
  • Page 9 TLE9844-2QX Application Kit User’s Manual Schematic and Layout "# "# -& $ %&'( -&   Figure 7 Parts placement Note: This is a very simplified example of an application circuit and bill of material. The function must be verified in the application.

  • Page 10: Revision History

    TLE9844-2QX Application Kit User’s Manual Revision History Revision History Revision Date Changes 2018-04-04 Release State TLE9844-2QX Application Kit User’s Manual Rev. 1.0 2018-04-04...
  • Page 11 Infineon Technologies, The data contained in this document is exclusively Infineon Technologies’ products may not be used in intended for technically trained staff. It is the Document reference any applications where a failure of the product or any responsibility of customer’s technical departments to...
