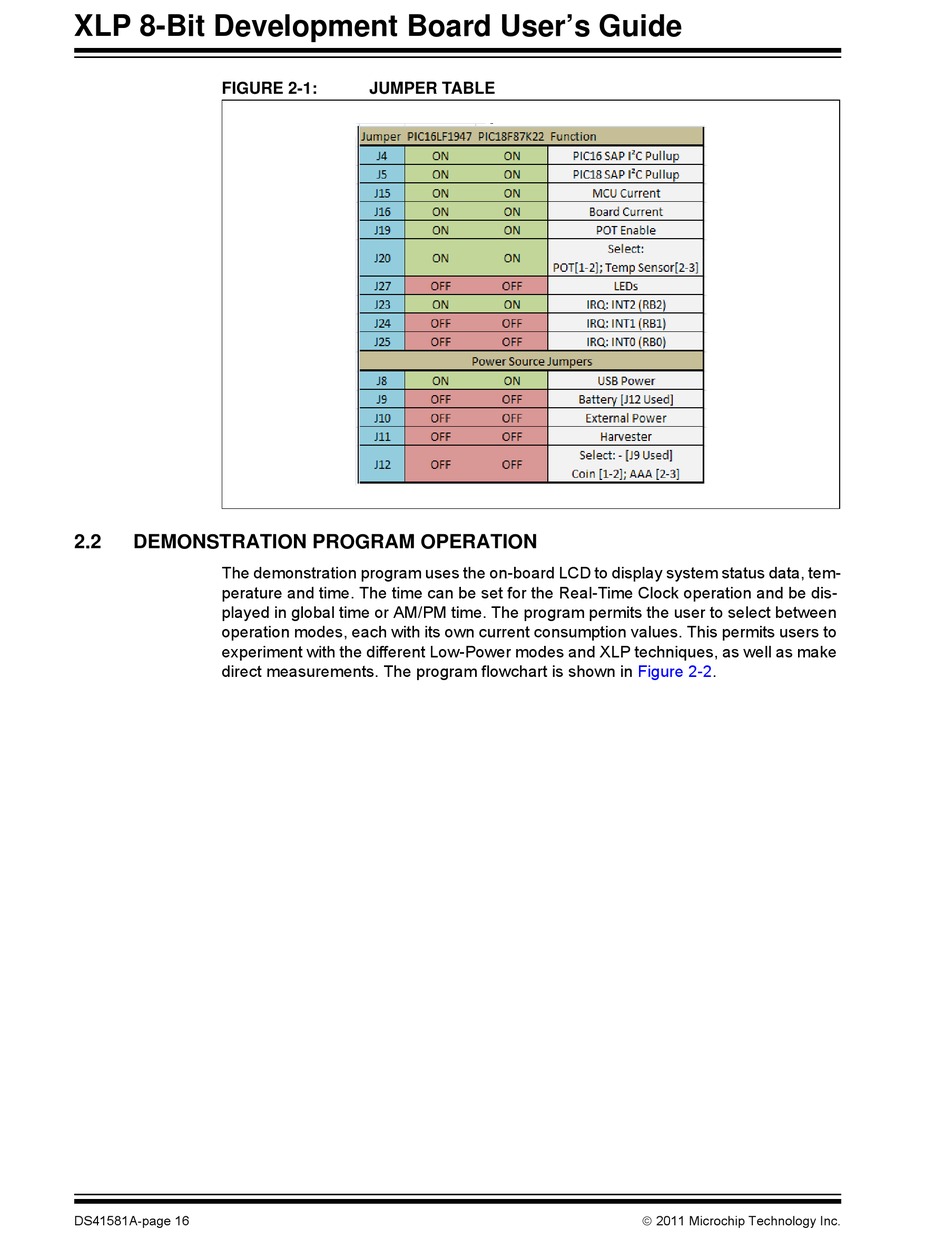

FIGURE 2-1:
2.2

DEMONSTRATION PROGRAM OPERATION

The demonstration program uses the on-board LCD to display system status data, tem-
perature and time. The time can be set for the Real-Time Clock operation and be dis-
played in global time or AM/PM time. The program permits the user to select between
operation modes, each with its own current consumption values. This permits users to
experiment with the different Low-Power modes and XLP techniques, as well as make
direct measurements. The program flowchart is shown in
DS41581A-page 16
JUMPER TABLE
Figure 2-2.
