XLP 8-Bit Development Kit Quick Start Guide
Overview
The XLP 8-Bit Development Board is pre-programmed with a demonstration program. The board
must be connected as described in this document to use the demonstration program. To measure
current consumption, the current analyzer cable must be set up as described in this document.
XLP 8-Bit Development Board Setup
The kit includes the XLP 8-Bit Development Board, current analyzer cable, USB connection cable,
bag of 15 jumpers, and Microchip's PIC16LF1947 and PIC18F87K22 microcontrollers. To use the
kit, follow the steps below:

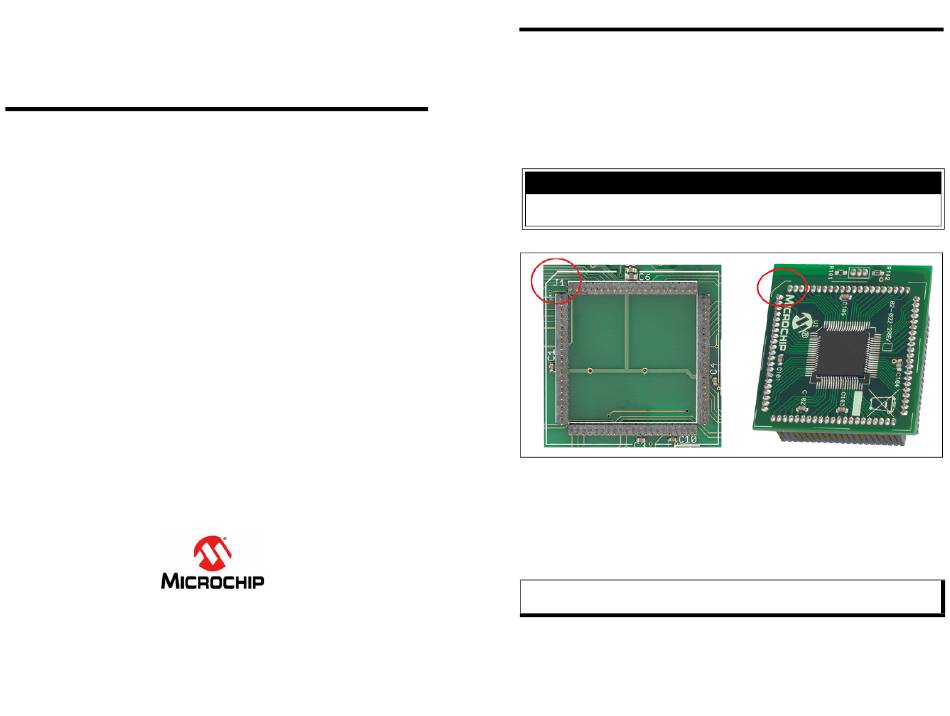

1. Insert either the PIC16LF1947 or PIC18F87K22 microcontrollers onto the XLP 8-bit board.
Make sure you insert the microcontroller as shown in the figure below.
Ensure that the bevel indicators on the PIM and board match up for correct
placement (see figure below). Failure to do so may damage the device.
2. Confirm jumper configurations using the table provided.
3. Connect the current analyzer cable to the pins as indicated in this document.
Board Power-Up
Supply power to the board in one of the following ways:
• Connect the USB cable using the J13 connector. [J8 is ON]
• Connect two (2) AAA Batteries to B1 & B2, or a coin battery to B3. [J9 is ON; J12 is USED]
• Connect an external 3.3-S VDC supply to (+VEXT) and (GND). [J10 is ON]
• Connect Microchip's Harvester device to J17. [J11 is ON]
LED D5 will immediately turn on after power-on.
Note: Using the table on the next page, confirm your power source jumper configurations
before supplying power to the board.
CAUTION
