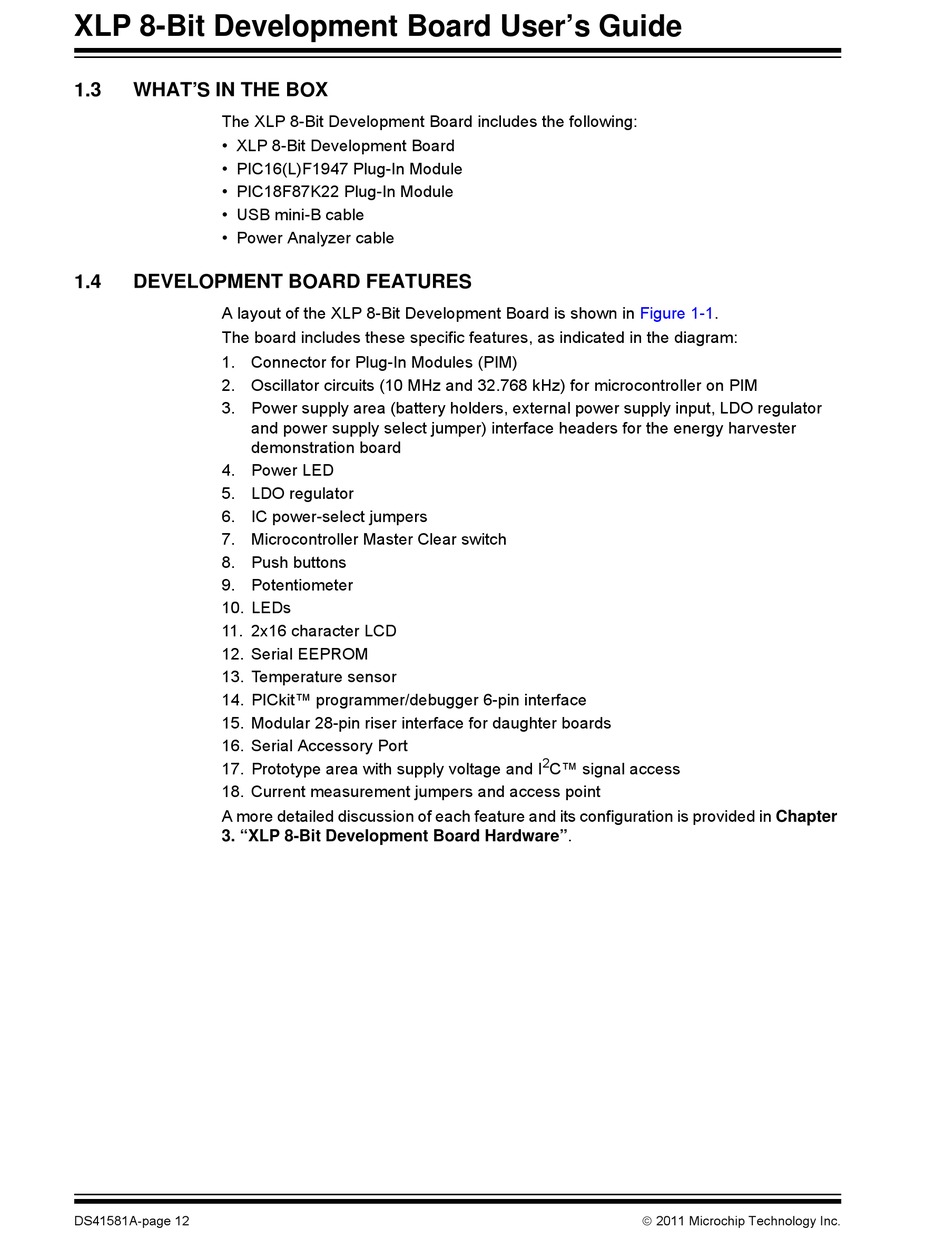

XLP 8-Bit Development Board User's Guide
1.3

WHAT'S IN THE BOX

The XLP 8-Bit Development Board includes the following:
• XLP 8-Bit Development Board
• PIC16(L)F1947 Plug-In Module
• PIC18F87K22 Plug-In Module
• USB mini-B cable
• Power Analyzer cable
1.4

DEVELOPMENT BOARD FEATURES

A layout of the XLP 8-Bit Development Board is shown in
The board includes these specific features, as indicated in the diagram:
1. Connector for Plug-In Modules (PIM)
2. Oscillator circuits (10 MHz and 32.768 kHz) for microcontroller on PIM
3. Power supply area (battery holders, external power supply input, LDO regulator
and power supply select jumper) interface headers for the energy harvester
demonstration board
4. Power LED
5. LDO regulator
6. IC power-select jumpers
7. Microcontroller Master Clear switch
8. Push buttons
9. Potentiometer
10. LEDs
11. 2x16 character LCD
12. Serial EEPROM
13. Temperature sensor
14. PICkit™ programmer/debugger 6-pin interface
15. Modular 28-pin riser interface for daughter boards
16. Serial Accessory Port
17. Prototype area with supply voltage and I
18. Current measurement jumpers and access point
A more detailed discussion of each feature and its configuration is provided in Chapter
3. "XLP 8-Bit Development Board Hardware".
DS41581A-page 12
Figure 1-1.
2
C™ signal access
 2011 Microchip Technology Inc.
