5 Installation and Operating Instructions
5.2 Air suspension
®
5.2.5 ILAS -E

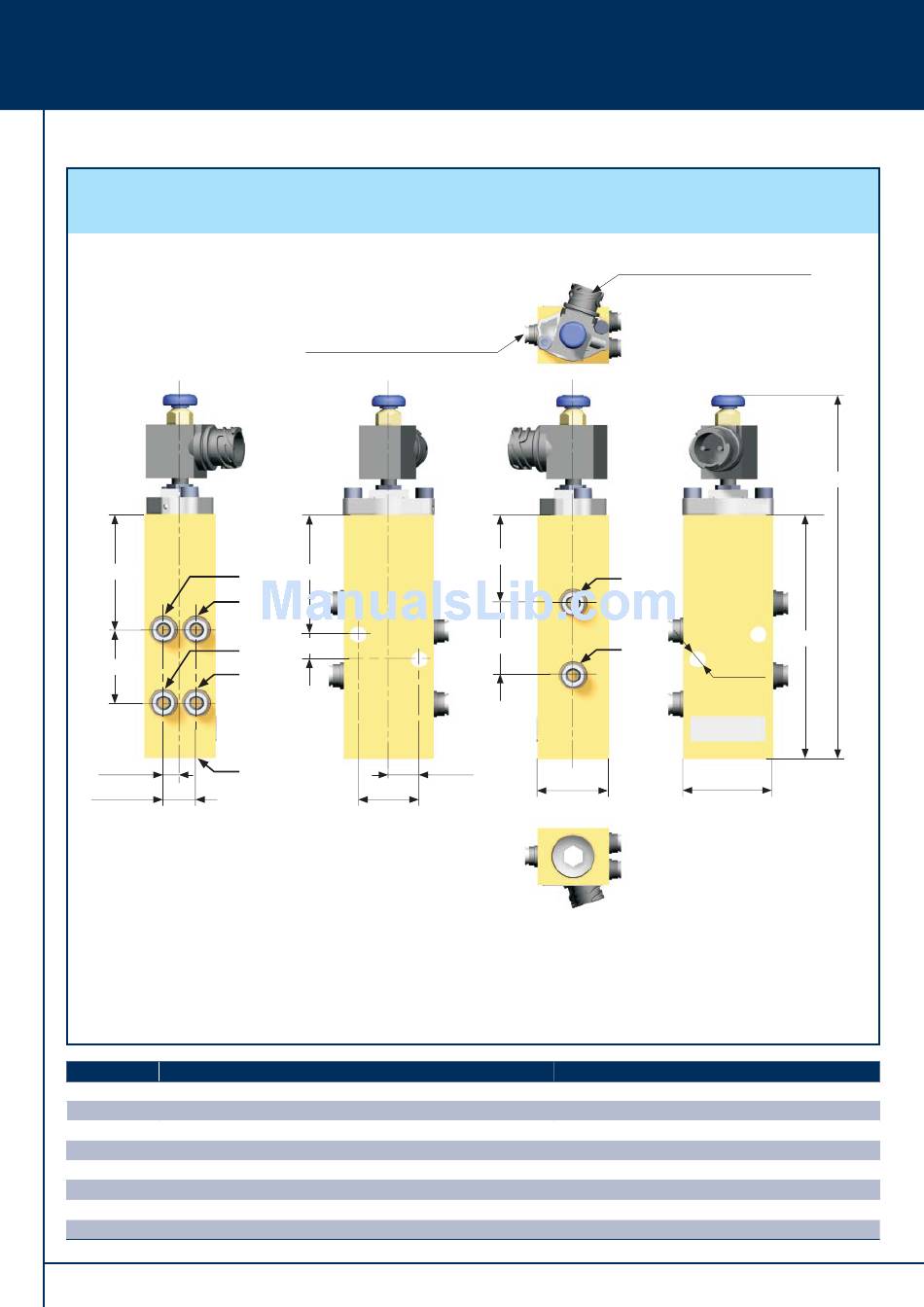

- Identifi cation of ports and fi xings
65 mm
41 mm
9.2 mm
18.4 mm
Note:
The installation of a maximum of one single-circuit lifting axle
is permitted within a three or four axle suspension.
Fig. 134
Port No. Description
1 Reservoir port
3 Exhaust port
11 Air bags, no lifted axles
21.1 Air bag of lifted axle
21.2 Air bag of lifted axle
22.1 Air bag respect. lifting cylinder of axle lift device
22.2 Air bag respect. lifting cylinder of axle lift device
76
Push-in fi ttings for tube
DIN 7424 - 8x1 - 23 mm deep
67 mm
22.1
22.2
14 mm
21.1
21.2
3
34 mm
All ports
49.5 mm
40.5 mm
17 mm
40 mm
Notes
Bayonet connection according
to DIN 72585
1
137 mm
11
Ø 9 mm
50 mm
Weight: approx. 0.8 kg
204. mm
