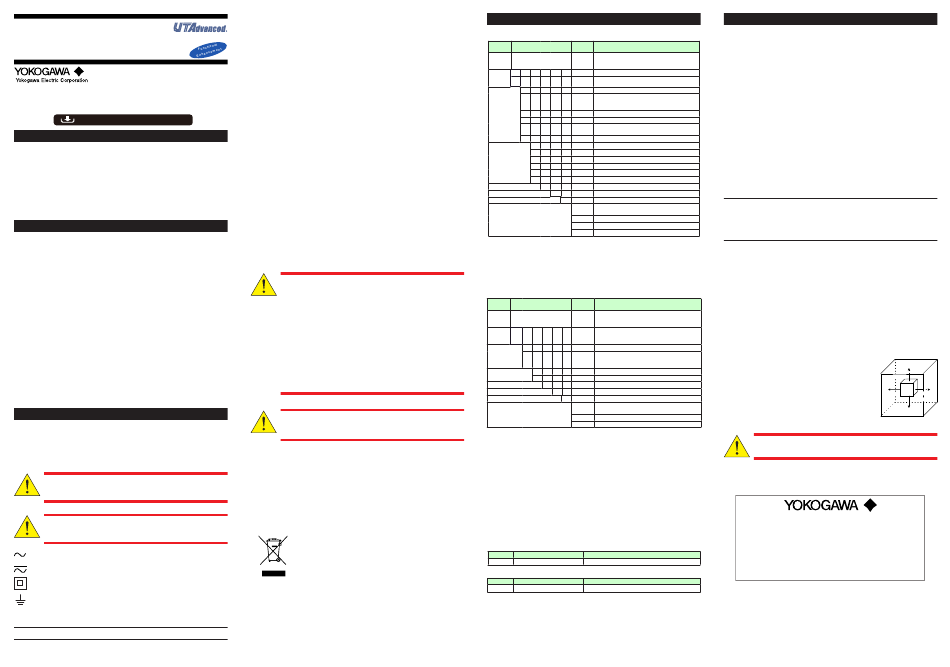

YOKOGAWA UT52A/MDL series Operation Manual

Operation
UT55A/MDL, UT52A/MDL
Guide Digital Indicating Controller
(DIN Rail Mounting Type)
Operation Guide for Single-loop Control
IM 05P01C81-11EN
«Standard Code Model»
4th Edition: Mar. 2018
This operation guide describes installation, wiring, and other tasks required to make the
controller ready for operation.
For details of the each function, refer to the electronic manual. Manuals can be
downloaded or viewed at the following URL.
http://www.yokogawa.com/ns/ut/im/
Contents
1. Safety Precautions
2. Model and Suffix Codes
3. How to Install
4. Hardware Specifications
5. How to Connect Wires
6. Terminal Wiring Diagrams
7. Setup Procedure
8. Operations
9. Troubleshooting
Introduction
Thank you for purchasing the UT55A/MDL, UT52A/MDL Controller. (The UT55A and
UT52A with option /MDL have no display.)
This operation guide describes the installing, wirings, setup flow, and troubleshooting
related to the single-loop control function of the UT55A/MDL and UT52A/MDL. The
guide should be provided to the end user of this product.
Be sure to read this operation guide before using the product in order to ensure
correct operation.
For details of each function, refer to the electronic manual. Before using the product,
refer to the table of Model and Suffix Codes to make sure that the delivered product
is consistent with the model and suffix codes you ordered. Also make sure that the
following items are included in the package.
• Controller (the model you ordered) .........................................................x1
• Terminal Cover (L4502XP for UT55A / L4502XQ for UT52A) ................x1
• Unit Label (L4502VZ) ..............................................................................x1
• Tag Label (L4502VE) (Only when ordered.) ...........................................x1
• Operation Guide for Single-loop Control (this document) .......................x3 (A3 size)
(Installation and Wiring, Initial Settings, Operations, and Parameters)
l Target Readers
This guide is intended for the following personnel;
• Engineers responsible for installation, wiring, and maintenance of the equipment.
• Personnel responsible for normal daily operation of the equipment.
1. Safety Precautions
The following symbol is used on the instrument. It indicates the possibility of injury
to the user or damage to the instrument, and signifies that the user must refer to the
operation guide or user's manual for special instructions. The same symbol is used
in the operation guide and user's manual on pages that the user needs to refer to,
together with the term "WARNING" or "CAUTION."
Calls attention to actions or conditions that could cause serious
or fatal injury to the user, and indicates precautions that should be
taken to prevent such occurrences.
WARNING
Calls attention to actions or conditions that could cause injury to
the user or damage to the instrument or property and indicates pre-
cautions that should be taken to prevent such occurrences.
CAUTION
AC
AC/DC
The equipment wholly protected by double insulation or reinforced insulation.
Functional grounding terminals
(Do not use this terminal as a protective grounding terminal).
Note
Identifies important information required to operate the instrument.
■ Warning and Disclaimer
(1) YOKOGAWA makes no warranties regarding the product except those stated in
the WARRANTY that is provided separately.
(2) The product is provided on an "as is" basis. YOKOGAWA assumes no liability to
any person or entity for any loss or damage, direct or indirect, arising from the
use of the product or from any unpredictable defect of the product.
■ Safety, Protection, and Modification of the Product
(1) In order to protect the system controlled by this product and the product itself,
and to ensure safe operation, observe the safety precautions described in the
operation guide. Use of the instrument in a manner not prescribed herein may
compromise the product's functions and the protection features inherent in the
device. We assume no liability for safety, or responsibility for the product's quality,
performance or functionality should users fail to observe these instructions when
operating the product.
(2) Installation of protection and/or safety circuits with respect to a lightning
protector; protective equipment for the system controlled by the product and the
product itself; foolproof or fail-safe design of a process or line using the system
controlled by the product or the product itself; and/or the design and installation
of other protective and safety circuits are to be appropriately implemented as the
customer deems necessary.
(3) Be sure to use the spare parts approved by YOKOGAWA when replacing parts
or consumables.
(4) This product is not designed or manufactured to be used in critical applications
that directly affect or threaten human lives. Such applications include nuclear
power equipment, devices using radioactivity, railway facilities, aviation
equipment, air navigation facilities, aviation facilities, and medical equipment.
If so used, it is the user's responsibility to include in the system additional
equipment and devices that ensure personnel safety.
(5) Modification of the product is strictly prohibited.
(6) This product is intended to be handled by skilled/trained personnel for electric devices.
(7) This product is UL Recognized Component. In order to comply with UL
standards, end-products are necessary to be designed by those who have
knowledge of the requirements.
l Power Supply
Ensure that the instrument's supply voltage matches the voltage
of the power supply before turning ON the power.
WARNING
l Do Not Use in an Explosive Atmosphere
Do not operate the instrument in locations with combustible
or explosive gases or steam. Operation in such environments
constitutes an extreme safety hazard. Use of the instrument in
environments with high concentrations of corrosive gas (H
SO , etc.) for extended periods of time may cause a failure.
X
l Do Not Remove Internal Unit
The internal unit should not be removed by anyone other than
YOKOGAWA's service personnel. There are dangerous high voltage
parts inside. Additionally, do not replace the fuse by yourself.
l Damage to the Protective Construction
Operation of the instrument in a manner not specified in the
operation guide may damage its protective construction.
This instrument is an EMC class A product. In a domestic environ-
ment this product may cause radio interference in which case the
user needs to take adequate measures.
CAUTION
■ Protection of Environment
Waste Electrical and Electronic Equipment (WEEE), Directive
This is an explanation of how to dispose of this product based on Waste Electrical
and Electronic Equipment (WEEE), Directive. This directive is only valid in the EU.
● Marking
This product complies with the WEEE Directive marking
requirement. This marking indicates that you must not discard
this electrical/electronic product in domestic household waste.
● Product Category
With reference to the equipment types in the WEEE directive,
this product is classified as a "Small equipment" product.
Do not dispose in domestic household waste. When disposing
products in the EU, contact your local Yokogawa Europe B.V.
office.
2. Model and Suffix Codes
■ UT55A «Standard Code Model»
Option
Model Suffix code Description
code
Digital Indicating Controller (Power supply: 100-240
/MDL
UT55A
V AC) (provided with retransmission output or 15 V
(Required)
DC loop power supply, 3 DIs, and 3 DOs) (*4)
Type 1: -0 Standard type
Basic
-2 Heating/cooling type
control
0 None
Remote (1 additional aux. analog) input,
2 1 additional DI, and RS-485 communication
(Max.19.2 kpbs, 2-wire/4-wire) (*1)
Type 2:
3 5 additional DIs and 5 additional DOs
Functions
4 Remote (1 additional aux. analog) input and 1 additional DI
Remote (1 additional aux. analog) input, 6 additional
5
DIs, and 5 additional DOs
7 3 additional aux. analog inputs and 3 additional DIs
0 None
1 RS-485 communication (Max.38.4 kbps, 2-wire/4-wire)
Type 3: Open 2 Ethernet communication (with serial gateway function)
networks
3 CC-Link communication (with Modbus master function)
4 PROFIBUS-DP communication (with Modbus master function)
5 DeviceNet communication (with Modbus master function)
Fixed code -1 Temperature unit: deg C & deg F
Case color 1 Black (Light charcoal gray)
-00
Fixed code Always "-00" (for standard code model)
/MDL
Mount on DIN rail (without the display parts and
keys)
(Required)
/LP 24 V DC loop power supply (*2)
Option codes
/DC Power supply 24 V AC/DC
/CT Coating (*3)
*1: When the /LP option is specified, the RS-485 communication of the Type 2 code "2" is 2-wire system.
*2: The /MDL option and /LP option can be specified in the combination of Type 2 code (any of "0",
"2", "3", or "4") and Type 3 code "1".
*3: When the /CT option is specified, the UT55A does not conform to the safety standards (UL
and CSA) and CE marking (Products with /CT option are not intended for EEA-market).
*4: UT55A has a panel mount type (without option /MDL). Please see the Operation Guide (IM
05P01C31-11EN).
■ UT52A «Standard Code Model»
Option
Model Suffix code Description
code
Digital Indicating Controller (Power supply: 100-240
/MDL
UT52A V AC) (provided with retransmission output or 15 V
(Required)
DC loop power supply, 3 DIs, and 3 DOs) (*3)
S,
Type 1:
2
Basic -0 Standard type
control
0
None
Type 2:
Remote (1 additional aux. analog) input, 1 additional
Functions
1 DI, and RS-485 communication (Max. 38.4 kbps,
2-wire)
0 None
Type 3:
Open networks
3 CC-Link communication (with Modbus master function)
Fixed code -1 Temperature unit: deg C & deg F
Case color 1 Black (Light charcoal gray)
Fixed code -00 Always "-00" (for standard code model)
/MDL Mount on DIN rail (without the display parts and
(Required) keys) (*1)
Option codes
/DC Power supply 24 V AC/DC
/CT Coating (*2)
*1: When the /MDL option is specified, the model and the suffix codes are as follows:
UT52A-010-11-00/x/MDL, UT52A-003-11-00/x/MDL
*2: When the /CT option is specified, the UT52A does not conform to the safety standards (UL
and CSA) and CE marking (Products with /CT option are not intended for EEA-market).
*3: UT52A has a panel mount type (without option /MDL). Please see the Operation Guide (IM
05P01C31-11EN).
■ Customized Product
For customized product, the product is identified by the option code of /S# (where '#'
is a number).
Contact your supplier in case your instrument has option /S#, and you are not
in the possession of FX1-[Model code]-S# or IM [Model code]-S# (where [Model
code] means, for example, UT55A).
■ Accessories (sold separately)
The following is an accessory sold separately.
• LL50A Parameter Setting Software
Model Suffix code Description
LL50A -00 Parameter Setting Software
• External Precision Resistor
Model Suffix code Description
X010 See the General Specifications (*) Resistance Module
*: Necessary to input the current signal to the voltage input terminal.
• Terminal Cover
For UT55A/MDL: Model UTAP001; For UT52A/MDL: Model UTAP002
• Manuals
* Manuals can be downloaded from a website. URL: http://www.yokogawa.com/ns/ut/im/
• Brackets
Part number: L4502TP (2 pcs for upper and lower sides)
• Wall mount bracket
For UT52A/MDL: Model UTAP005
3. How to Install
■ Installation Location
The instrument should be installed in indoor locations meeting the following
conditions:
• Instrumented enclosure
This instrument is designed to be mounted in an instrumented enclosure. Mount
the instrument in a location where its terminals will not inadvertently be touched.
Be sure to mount the instrument in an enclosure with a door.
• Well ventilated locations
Mount the instrument in well ventilated locations to prevent the instrument's inter-
nal temperature from rising.
However, make sure that the terminal portions are not exposed to wind. Exposure
to wind may cause the temperature sensor accuracy to deteriorate. To mount mul-
tiple indicating controllers, see the external dimensions which follow. If mounting
other instruments adjacent to the instrument, comply with these external dimen-
sions to provide sufficient clearance between the instruments.
• Locations with little mechanical vibration
Install the instrument in a location subject to little mechanical vibration.
• Horizontal location
Mount the instrument horizontally and ensure that it is level, with no inclination to
the right or left.
Note
If the instrument is moved from a location with low temperature and low humidity
to a place with high temperature and high humidity, or if the temperature changes
rapidly, condensation will result. Moreover, in the case of thermocouple inputs,
measurement errors will result. To avoid such a situation, leave the instrument in the
new environment under ambient conditions for more than 1 hour prior to using it.
Do not mount the instrument in the following locations:
• Outdoors
• Locations subject to direct sunlight or close to a heater
Install the instrument in a location with stable temperatures that remain close to an
average temperature of 23°C. Do not mount it in locations subject to direct sunlight
or close to a heater. Doing so adversely affects the instrument.
• Locations with substantial amounts of oily fumes, steam, moisture, dust, or
corrosive gases
The presence of oily fumes, steam, moisture, dust, or corrosive gases adversely
affects the instrument. Do not mount the instrument in locations subject to any of
these substances.
• Areas near electromagnetic field generating sources
Do not place magnets or tools that generate magnetism near the instrument. If the
instrument is used in locations close to a strong electromagnetic field generating
source, the magnetic field may cause measurement errors.
• Areas close to flammable articles
Absolutely do not place the instrument directly on flam-
mable surfaces. If such a circumstance is unavoidable
150 mm
and the instrument must be placed close to a flammable
item, provide a shield for it made of 1.43 mm thick plated
150 mm
steel or 1.6 mm thick unplated steel with a space of at
least 150 mm between it and the instrument on the top,
bottom, and sides.
• Areas subject to being splashed with water
Be sure to turn OFF the power supply to the controller before in-
stalling it on the enclosure to avoid an electric shock.
WARNING
YOKOGAWA ELECTRIC CORPORATION
Network Solutions Business Division
2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 JAPAN
YOKOGAWA CORPORATION OF AMERICA
Head office and for product sales
2 Dart Road, Newnan, Georgia 30265, USA
YOKOGAWA EUROPE B.V.
Headquarters
Euroweg 2, 3825 HD Amersfoort, THE NETHERLANDS
www.yokogawa.com/ns
All Rights Reserved, Copyright © 2015 Yokogawa Electric Corporation
IM 05P01C81-11EN page 1/6
150 mm
150 mm
