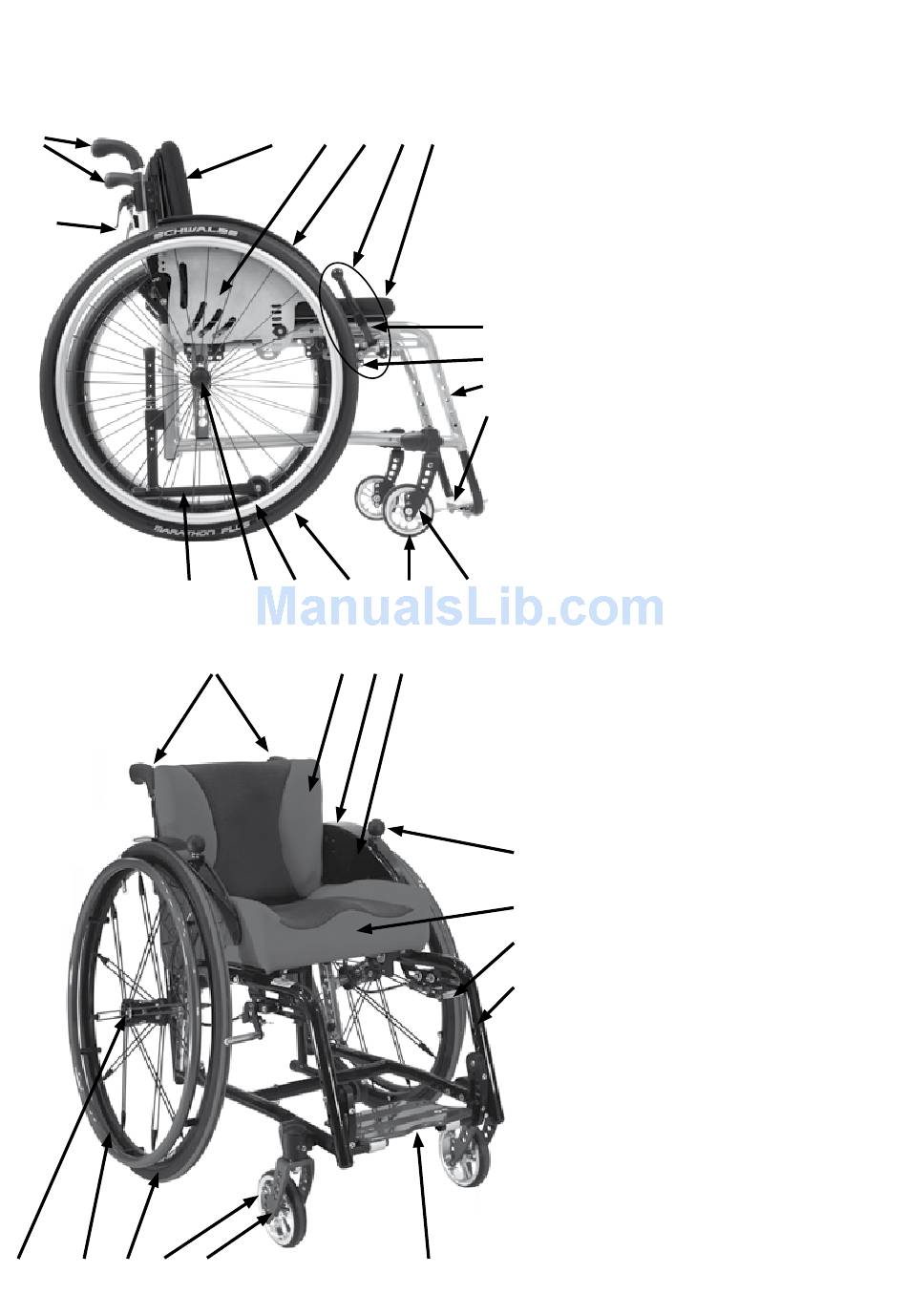

Wheelchair overview

1
17
16
13 12 11
14
2 3
15 14 13
1 2
10
4 5 6
7
8
9
10
12 11
3 4
5
6
7
8
9
1. push handles
2. back
3. side guards
4. skirt guard
5. wheel lock (knee lever brake)
6. seat
7. brake lever (here with extension)
8. brake bolt
9. frame
10. foot rest (continuous)
11. caster fork
12. caster
13. driving wheel
14. handrim
15. quick release axle
16. anti-tipper
17. eccentric clamp for extendable push
handles
1. push handles
2. back
3. skirt guard
4. side guard
5. brake lever
6. anatomically formed seat cushion
7. brake pressing bolt
8. frame
9. foot rest (continuous)
10. caster fork
11. caster
12. driving wheel
13. handrim
14. quick release axle
