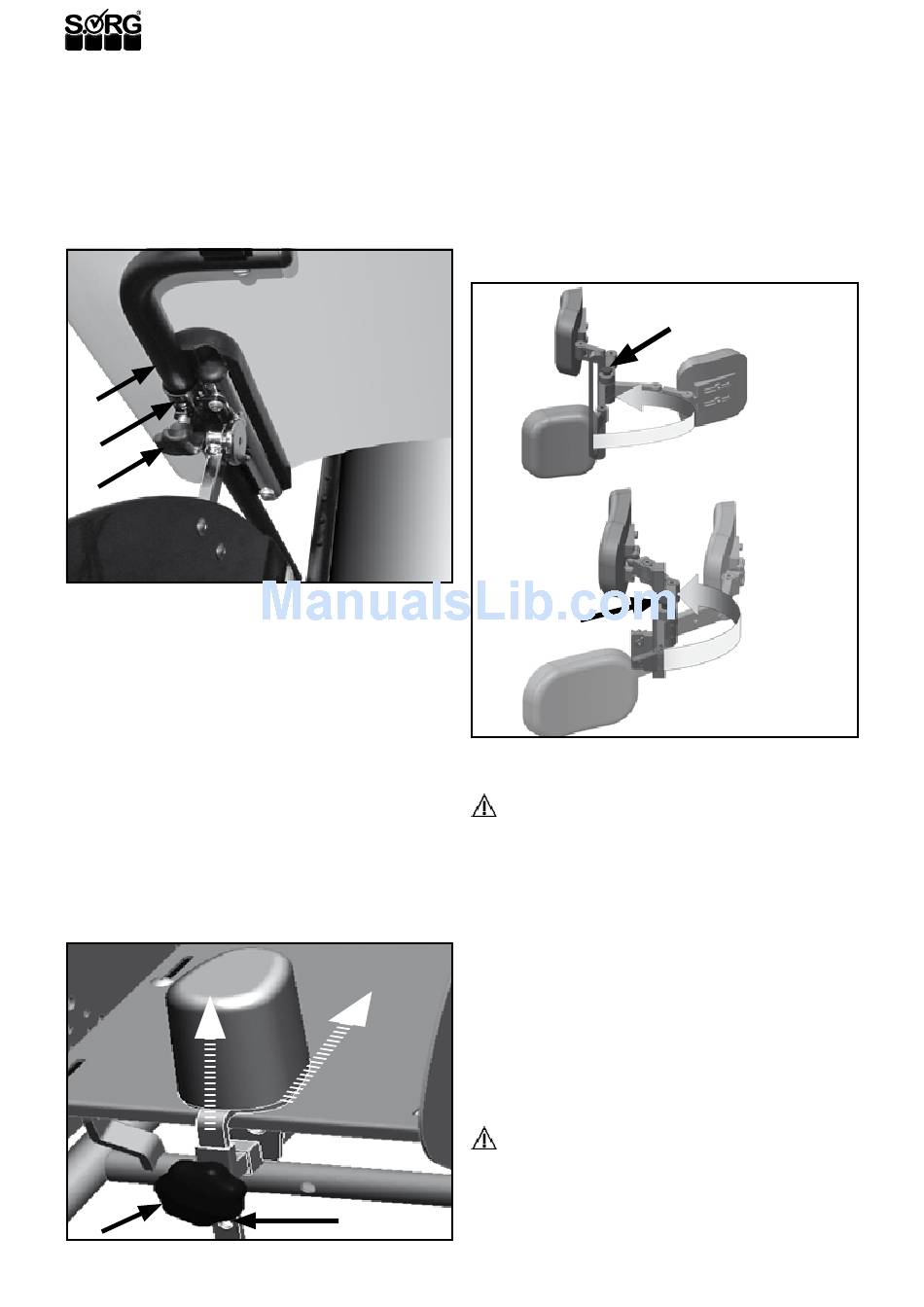

3.16 THERAPY TABLE

The therapy table is placed in the holder under the
arm rests.
(1) Guide both tubes (A) of the therapy table
simultaneously without tilting it (!) in the holders (B)
fixate it then in the desired distance with the star
knob screw (C).
(1)
(A)
(B)
(C)

3.17 ABDUCTION WEDGE

The abduction wedge is mounted under the SeatFix.
The height can be adjusted in 1,5cm intervals, the
distance is infinitely variable.
Adjusting the height:
• Remove star knob screws (A) completely,
• shift the wedge with holder along the row of
holes (B) into the desired height,
• replace star knob screws (A).
Adjusting the distance:
• loosen star knob screws slightly (A),
• slide the wedge via the star knob back and
forth into the desired position,
• tighten star knob screws (A).
(2)
(A)
34

3.18 THORAX TRUSS PADS

(1) Both kinds of thorax truss pads can open and close.
To do so, push the red button (A) and simultaneously
push the truss pad frame back or forward. They snap
into position when you release the button (A).
Please let your rehab technician set the individual
frame joints or the extension pieces.
(3)

3.19 TIPPING LEVER

ATTENTION DANGER OF FLIPPING OVER
This maneuver should only be done by experienced
and strong accompanying people.
In order to pull a wheelchair driver in his/her wheelchair
over a ledge proceed as follows:
• if necessary, deactivate the ant-tipper,
• grab the wheelchair tightly on both push
• push on the tipping lever with one foot as you
• CAREFULLY AND AT THE SAME TIME tip the

3.20 CANE HOLDER

ATTENTION
Fixate your cane with the appropriate Velcro band
on the back of the wheelchair so that it doesn't
accidentally get between the spokes.
(B)
(A)
(A)
handle or push bail,
wheelchair towards you and in this pose pull it
over the obstacle.
