SEAT AND BACK COVER

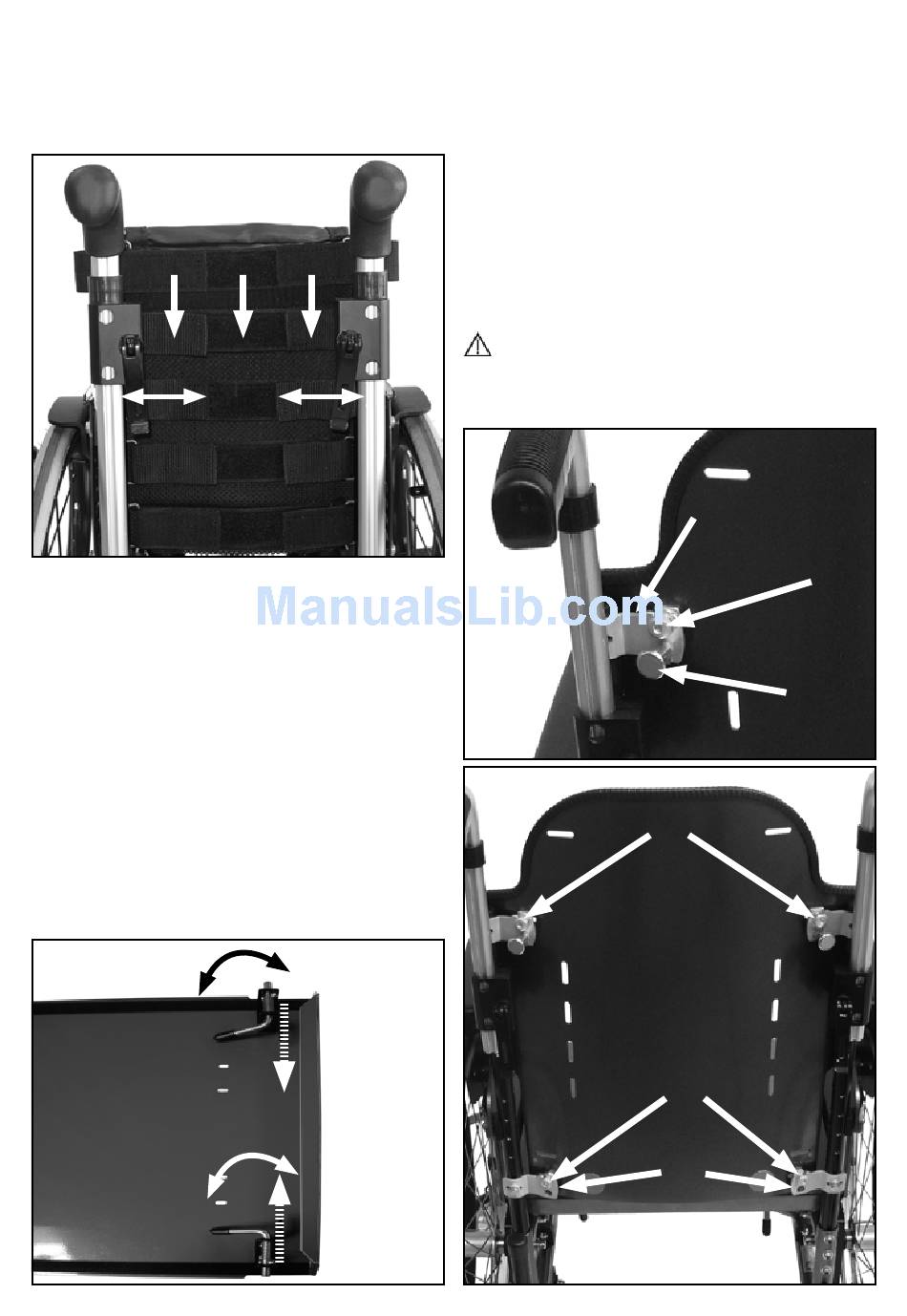

(1) For adjustable seat and/or back covers, the Velcro
parts (A+B) must always overlap a min. of 8 cm.
(1)
(A)
min. 8 cm
per side
3.7
FIRM SEAT PLATE (SEATFIX) AND CUR-
VED BACK PLATE
(2) To unlock the firm seat plate (SeatFix):
• pull both levers (A) under the seat, inward
• and turn them 90°.
• The levers stay in this position.
To lock:
• first place the seat plate on the front edge of
the seat tubes and
• push it by the back edge down until it snaps
into place.
• After, lock the SeatFix as described above.
(2)
(B)
(A)
min. 8 cm
per side
(3) To unlock the firm curved back plate:
• pull both locking levers (A) out
• and turn them 90°.
• The levers stay in this position.
• Pull the bolts (B) up out of the slots (C).
(4) To lock:
• First place the curved back plate with the
bottom bolt (A) on the slot (B),
• then guide it down until the upper bolts (C) are
also in the slot.
• After, lock the curved back plate as described
above.
ATTENTION
The wheelchair is only safe and usable with firmly
locked seat and/or back.
(3)
(4)
User Manual
(C)
(B)
(A)
(C)
(A)
(B)
