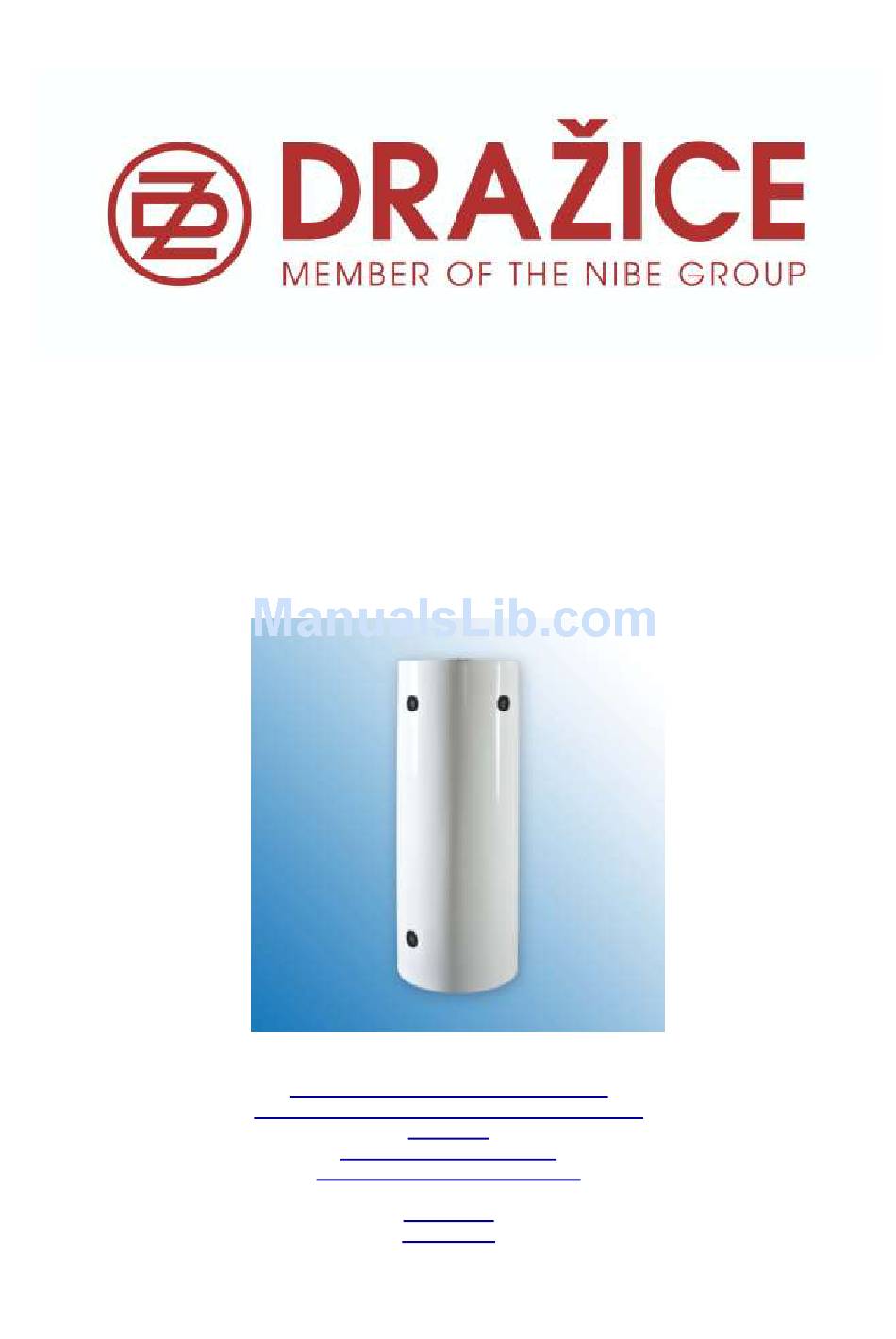

- Page 1 Operation and Installation Manual Accumulation Tank NAD 250 v 1 Družstevní závody Dražice-strojírna s.r.o. (Works Cooperative - Dražice – Machine Plant, Ltd.) Dražice 69 294 71 Benátky nad Jizerou Tel.: 326 370 911, fax: 326 370 980 www.dzd.cz dzd@dzd.cz...

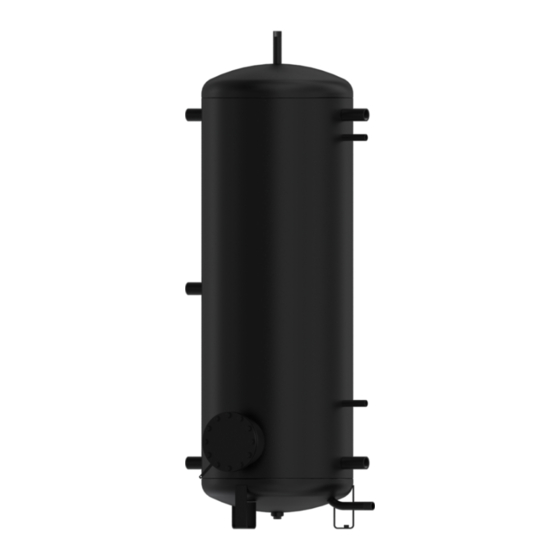

- Page 2 1. Description Accumulation tanks serve accumulation of excessive heat from its source. The source may be a solid fuel boiler, heat pump, solar collectors, fireplace inserts, etc. The NAD type tanks serve storage of heat in the heating system only. Incorporation of an accumulation tank in the heating system with a solid fuel boiler allows an ideal run of a boiler at favourable temperature during the boiler operation.
- Page 3 General dimensions 1. Steel receptacle 2. Tank shell 3. Polyurethane CFCs-free insulation 42 mm 4. Funnel G 1“ for connecting heating water supply - 4 pcs 5. Funnel G 1/2“ for connecting a thermowell - 3 pcs 1573 1310 RECOMMENDATION It is recommended to use the product in an indoor environment with air temperatures from +5°C to 45°C and relative humidity up to 80%.
