Control Program - Interroll MultiControl Instruction Manual

Initial start up and operation

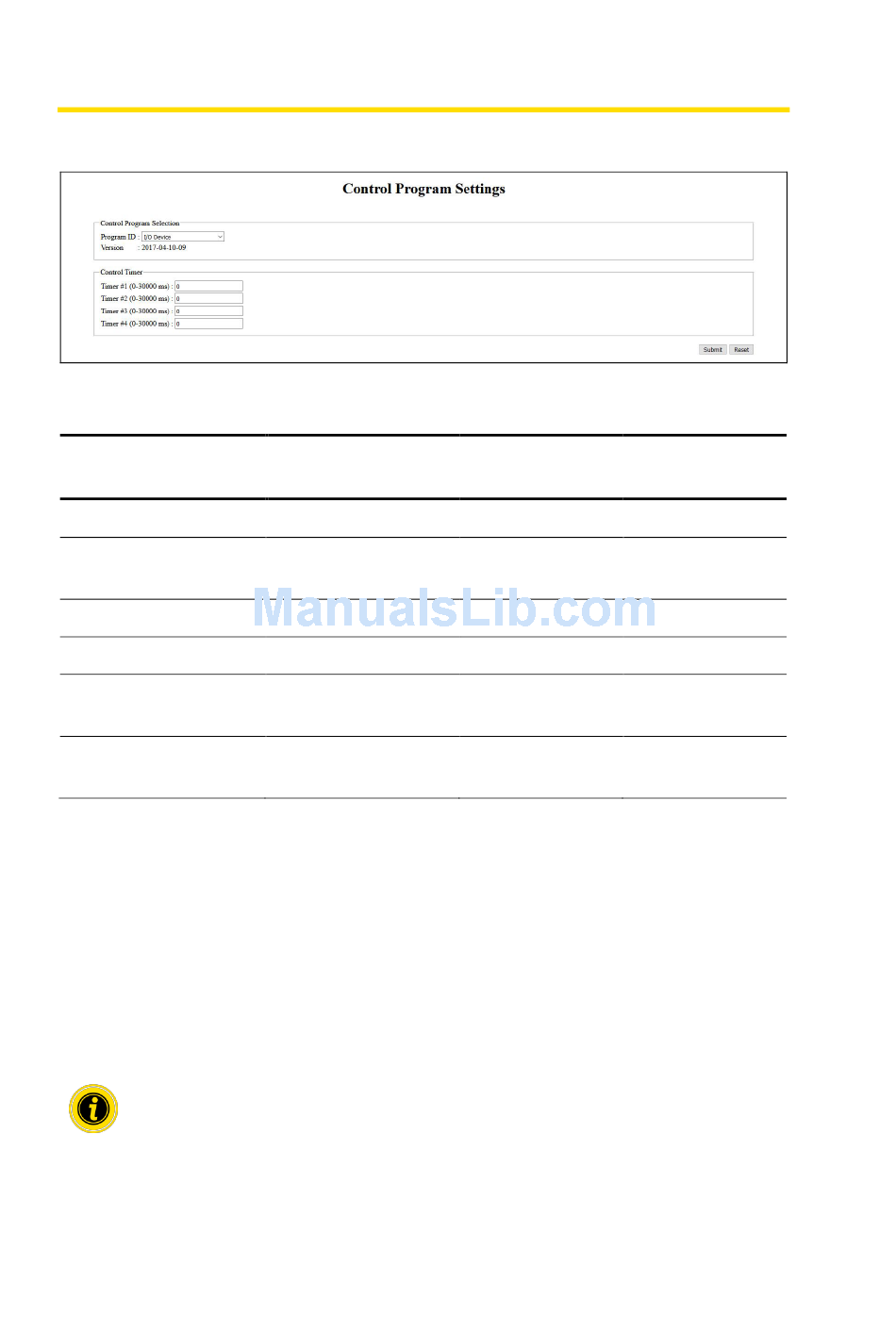

Control Program

Selection of Control Programs
ZPA Single Release
Program-ID
Single Release 1 Zone
Single Release 2 Zone
Single Release 3 Zone
Single Release 4 Zone
Control Timer
Timer 1: Single release: Transfer communication time
Train release: Time-delayed start of the RollerDrive
Timer 2: Internal conveyance monitoring
Timer 3: Trailing RollerDrive
Timer 4: Error reset
Depending on the selected control program, the functions and factory settings of the
timers vary (see description of the control programs in the supplementary document
"Interroll MultiControl - Operating and Programming").
To apply the changed parameters to the MultiControl, press the "Submit" button.
34
ZPA Train Release
Program-ID
Train Release 1 Zone
Train Release 2 Zone
Train Release 3 Zone
Train Release 4 Zone
ZPA Module No ZPA
Program-ID Program-ID
ZPA Transfer In I/O Device
ZPA Transfer
Out
ZPA Merge
ZPA HPD
HPD Semi-
Automatic
Transfer Semi-
Automatic
