Crestron FSDI8-W-T Quick Start Manual

FSDI8-W-T
Ceiling Mount Media Presentation Speakers
1

Installation

1 1 1 1 1 1 1 1 1 1
®

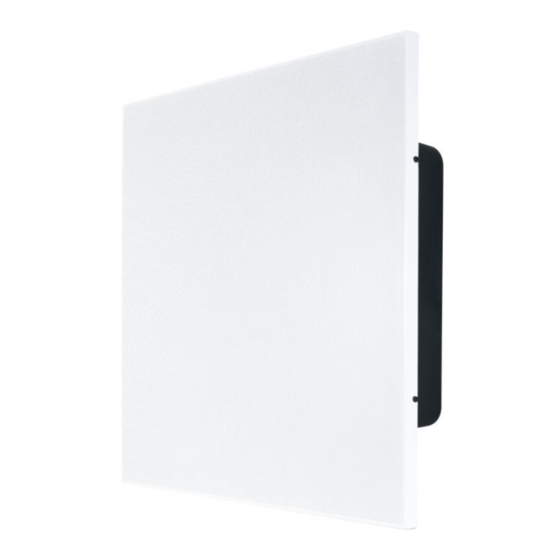

The Crestron FSDI8-W-T provides a pair of ceiling mount loudspeakers designed
for multimedia presentation and speech reinforcement in classrooms and other
indoor applications. Each speaker features an 8" (203 mm) full-range driver in a
damped enclosure. Drop-in simplicity affords fast and easy installation in a typical
2' X 2' (0.61 m X 0.61 m) or 2' X 4' (0.61 m X 1.22 m) suspended ceiling grid.

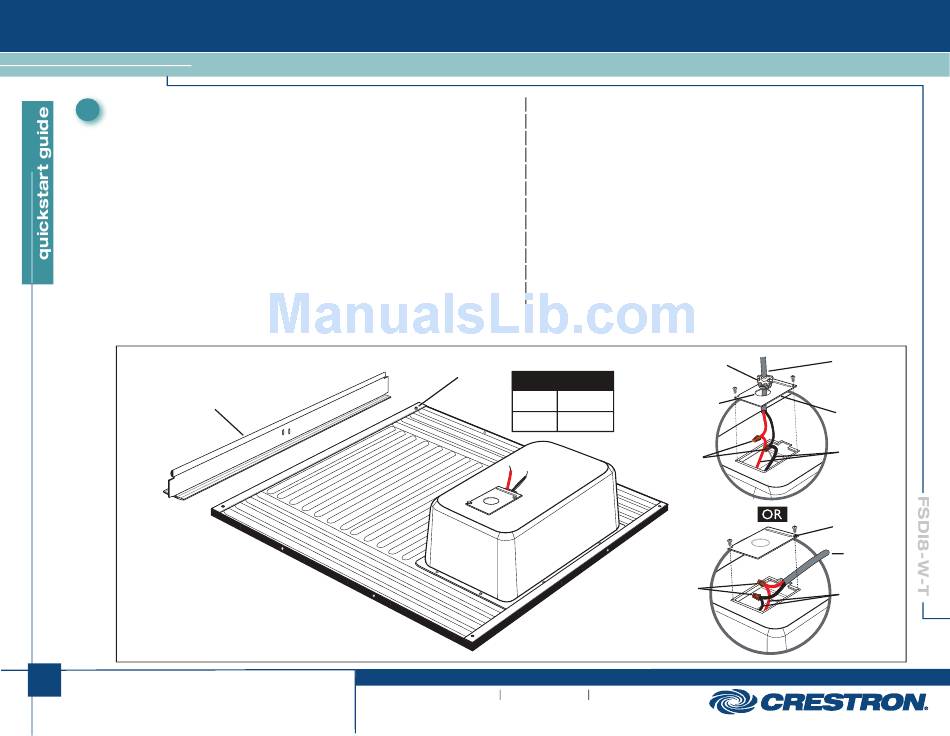

Installation consists of the following (refer to the illustration below):
1. Place the speaker into position in the grid. In a 2' X 4' grid, cut the ceiling tile in
half (23-3/4" max), and install the included support rail.
2. Route the speaker cable to the speaker.
3. Strip the ends of the speaker cable wire approximately 5/8 inch (15 mm) and
twist the bared strands.
4. Remove the screws securing the cover on the back can, open the cover and
remove the included wire nuts.
Speaker Connections
Support Rail
Crossbar Included
(For use in 2' X 4' (0.61 m X 1.22 m)
tile space only)
1
QUICKSTART DOC. 7070B (2028977)
Seismic Attachment
Points (4)
www.crestron.com
07.12
Specifications subject to
change without notice.
5. Following one of the two methods shown in the illustration, use the wire
nuts to connect the speaker wires to the speaker cable wires, observing
the proper polarity (+ to +, - to -).
6. Using the screws removed earlier, attach the cover to the back can.
Cable Clamp
(Not Included)
Lead Color
+
Red
Knockout
— Black
Wire
Nuts
Wire
Nuts
888.273.7876 201.767.3400
Speaker
Cable
Cover
Speaker
Leads
Cover
Speaker
Cable
Speaker
Leads
