Crestron FS6-B Quick Start Manual

FS6-B/W
1

Installation

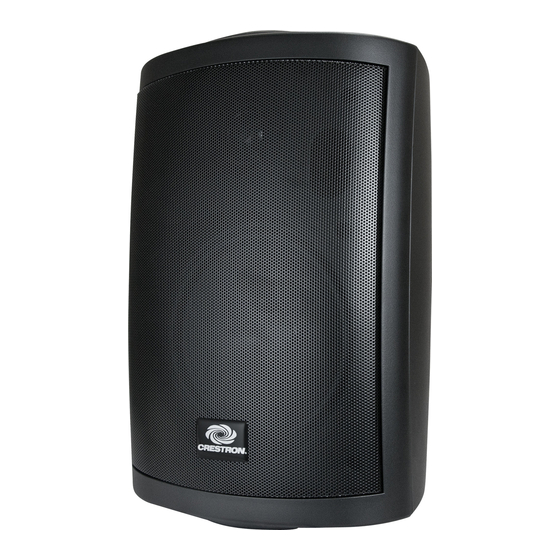

Crestron ® FS6 speakers are designed to achieve exceptional sonic performance and wide coverage for a typical
classroom or presentation space. The speakers and mounting brackets are available in black (FS6-B) or white
(FS6-W), but are identical in all other respects.
The FS6 can be mounted on a surface, such as a wall or mounted in a bookcase or under a shelf.
Mounting on a desk top or bookshelf
1. For quick installation on a desk top or bookshelf, simply place on a desk, shelf or other flat surface as desired.
2. Route the speaker wire to the speakers.
3. Strip the ends of the wire approximately 5/8 inch (15 mm) and twist the bared strands.
4. Insert the wire into the speaker terminals, observing the correct polarity (+ wire to + terminal and - wire to - terminal).

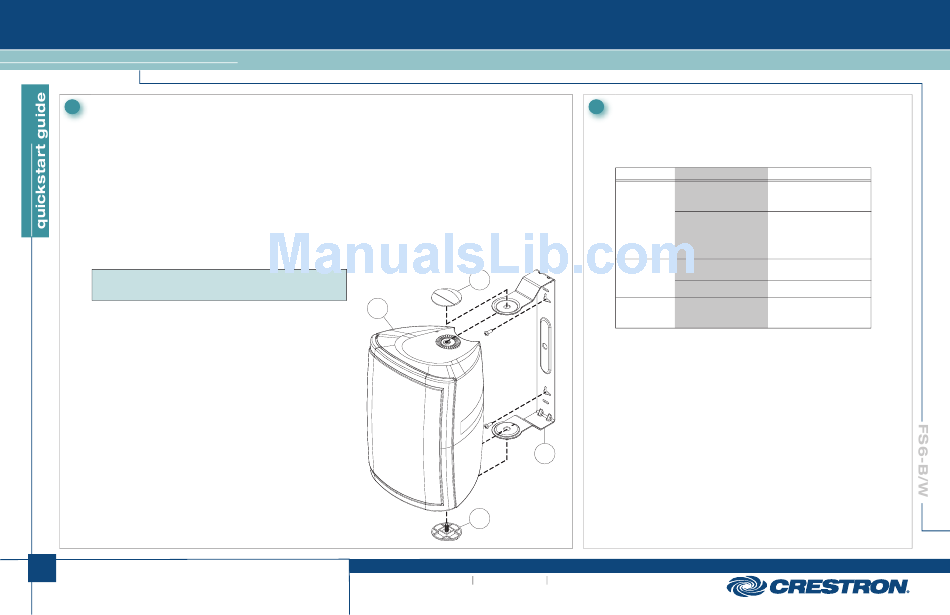

Mounting on a wall, ceiling or other flat surface
NOTE: Before starting installation, ensure the wall and wall material is
capable of supporting the combined weight of the speakers and the wall
mount assemblies.
1. If mounting to drywall, use a stud locator to find the studs in the wall.
2. Mark the location of the mounting bracket's
the stud line and drill pilot holes.
➀
3. Place the mounting bracket against the wall, aligning the screw
holes with the pilot holes in the wall and secure it with two screws
(not included).
4. If they are attached to the speakers, remove the circular end caps
from the top and bottom of the speakers
counter-clockwise.
➂
5. Gently slide the speaker into the mounting bracket
it by replacing the circular end caps
and into the top and bottom of the speaker, rotating them clockwise until
fully seated.
6. Route the speaker wire to the speakers.
7. Strip the ends of the wire approximately 5/8 inch (15 mm) and twist the
bared strands.
8. Insert the wire into the speaker terminals, observing the correct polarity
(+ wire to + terminal and - wire to - terminal).
1
QUICKSTART DOC. 6972C (2027428)
Surface Mount Media Presentation Speakers
3
➀
two mounting holes on
➁
➂
by rotating them
➀
and secure
➁
through the mounting bracket
www.crestron.com
04.12
Specifications subject to change
without notice.
2

Problem Solving

Troubleshooting
The following table provides corrective action for possible trouble situations.
If further assistance is required, please contact a Crestron customer service
representative.
TROUBLE
No sound or
intermittent
sound from
speakers.
Constant noise
such as buzz,
2
hum or hiss from
speakers.
Poor low
frequency
output.
Further Inquiries
If you cannot locate specific information or have questions after reviewing
this guide, please take advantage of Crestron's award winning customer
service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876].
For assistance in your region, please refer to the Crestron Web site
(www.crestron.com/offices) for a listing of Crestron worldwide offices.
You can also log onto the online help section of the Crestron Web site
(www.crestron.com/onlinehelp) to ask questions about Crestron products.
First-time users must establish a user account to fully benefit from all
available features.
1
Future Updates
As Crestron improves functions, adds new features and extends the capabilities
of the FS6, additional information may be made available as manual updates.
These updates are solely electronic and serve as intermediary supplements prior
to the release of a complete technical documentation revision.
Check the Crestron Web site periodically for manual update availability and its
2
relevance. Updates are identified as an "Addendum" in the Download column.
888.273.7876 201.767.3400
POSSIBLE CAUSE(S) CORRECTIVE ACTION
Cable connection error. Verify cable connections
between amplifier and
speakers.
Amplifier not receiving Verify amplifer is functioning
input signal or amplifier correctly, that it is receiving
malfunction. an input signal and that
correct input source is
selected.
Faulty device in system. Verify all devices in system
are functioning properly.
System grounding fault. Verify system grounding.
Incorrect polarity Verify speaker connection
connection at speaker. polarity (i.e. + on speaker to +
on amplifier).
