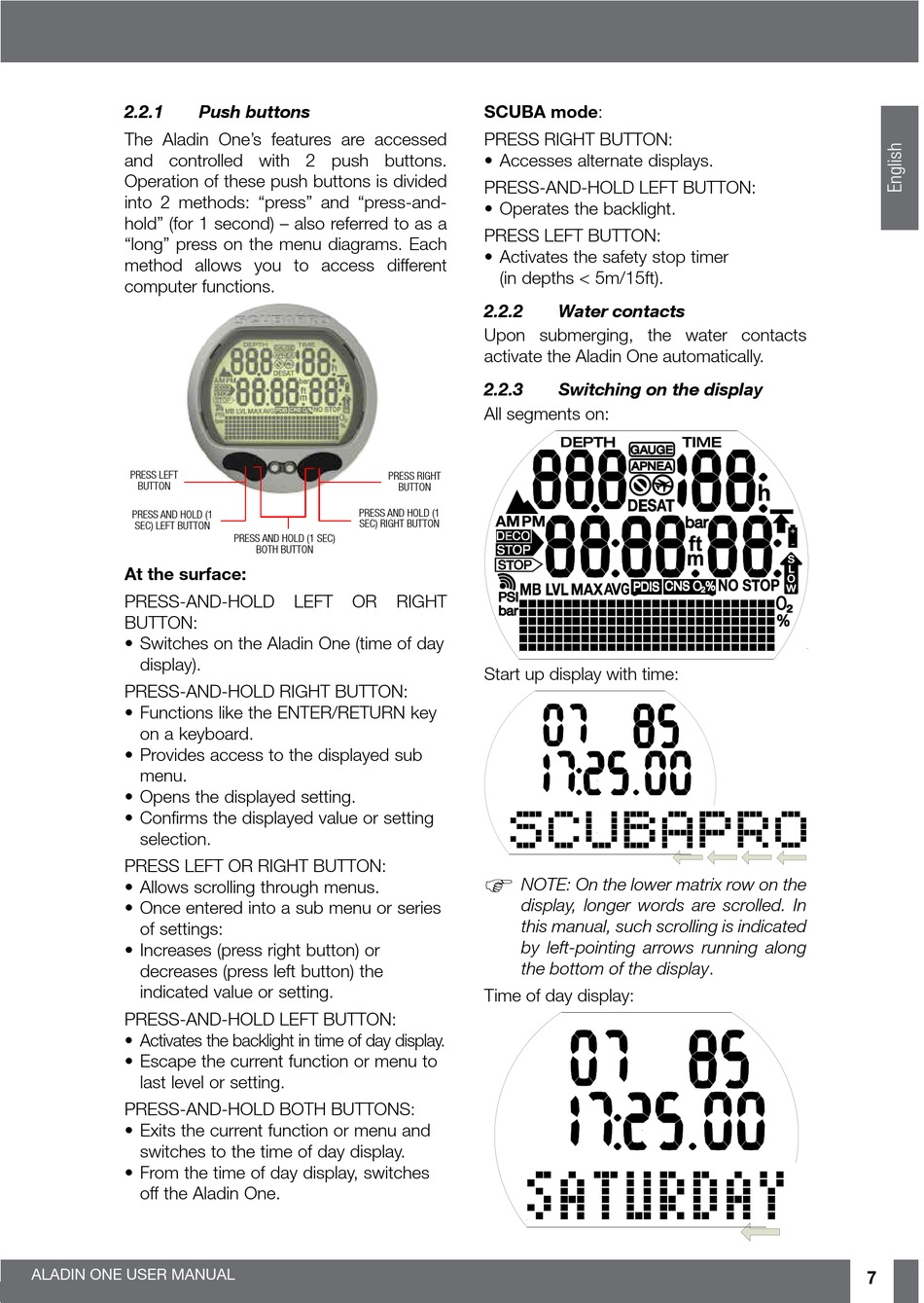

2.2.1

Push buttons

The Aladin One's features are accessed
and controlled with 2 push buttons.
Operation of these push buttons is divided
into 2 methods: "press" and "press-and-
hold" (for 1 second) – also referred to as a
"long" press on the menu diagrams. Each
method allows you to access different
computer functions.
PRESS LEFT
BUTTON
PRESS AND HOLD (1
SEC) LEFT BUTTON
At the surface:
PRESS-AND-HOLD
BUTTON:
• Switches on the Aladin One (time of day
display).
PRESS-AND-HOLD RIGHT BUTTON:
• Functions like the ENTER/RETURN key
on a keyboard.
• Provides access to the displayed sub
menu.
• Opens the displayed setting.
• Confirms the displayed value or setting
selection.
PRESS LEFT OR RIGHT BUTTON:
• Allows scrolling through menus.
• Once entered into a sub menu or series
of settings:
• Increases (press right button) or
decreases (press left button) the
indicated value or setting.
PRESS-AND-HOLD LEFT BUTTON:
• Activates the backlight in time of day display.
• Escape the current function or menu to
last level or setting.
PRESS-AND-HOLD BOTH BUTTONS:
• Exits the current function or menu and
switches to the time of day display.
• From the time of day display, switches
off the Aladin One.
ALADIN ONE USER MANUAL
PRESS RIGHT
BUTTON
PRESS AND HOLD (1
SEC) RIGHT BUTTON
PRESS AND HOLD (1 SEC)
BOTH BUTTON
LEFT OR RIGHT
SCUBA mode:
PRESS RIGHT BUTTON:
• Accesses alternate displays.
PRESS-AND-HOLD LEFT BUTTON:
• Operates the backlight.
PRESS LEFT BUTTON:
• Activates the safety stop timer
(in depths < 5m/15ft).
2.2.2

Water contacts

Upon submerging, the water contacts
activate the Aladin One automatically.
2.2.3

Switching on the display

All segments on:
Start up display with time:
F
NOTE: On the lower matrix row on the
display, longer words are scrolled. In
this manual, such scrolling is indicated
by left-pointing arrows running along
the bottom of the display.
Time of day display:
7
