Read sections on warnings and alarms
about the possible selections that you can
modify on your Aladin One.

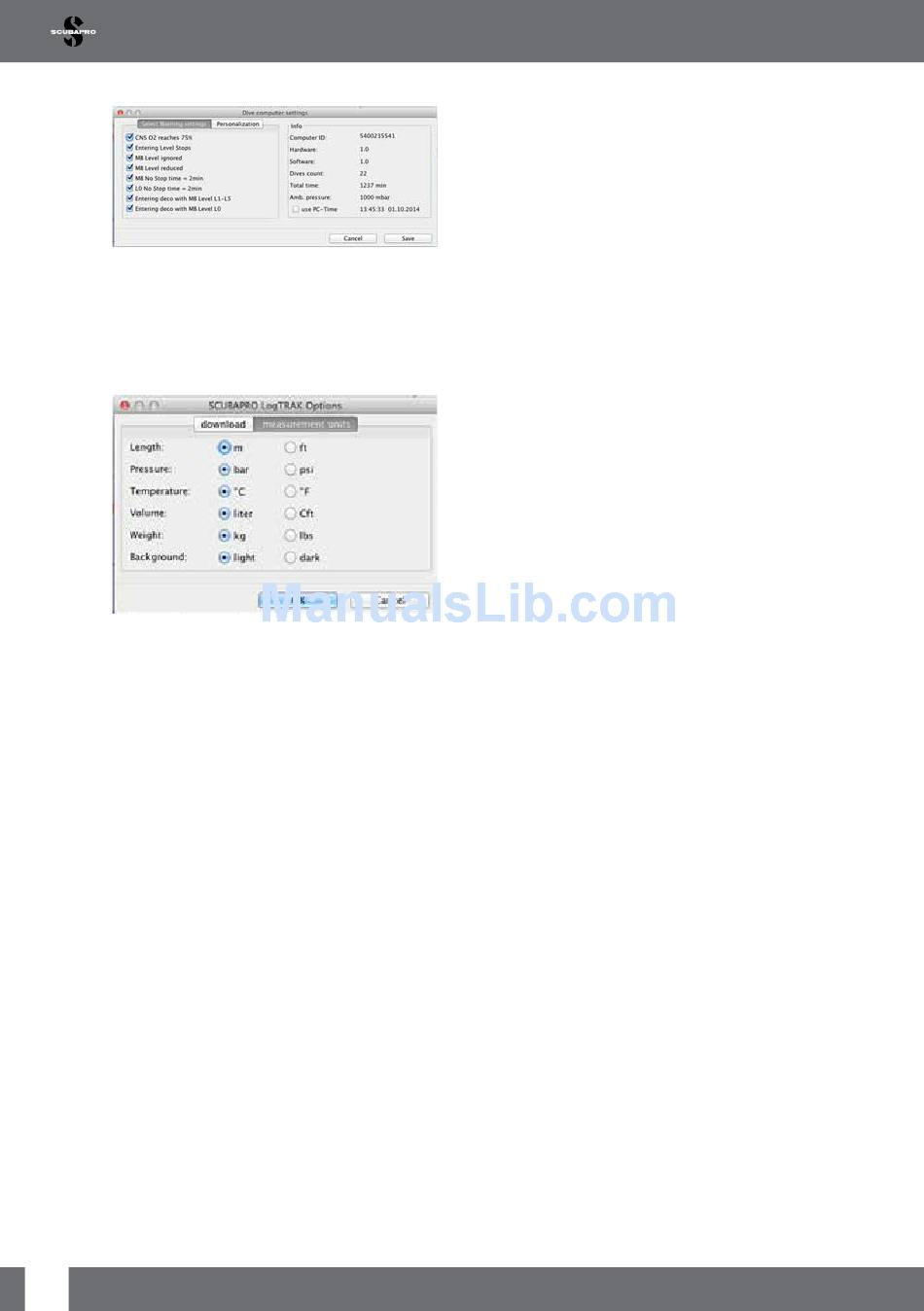

You may also change the shown units
between metric/imperial. Select Extras >
Options > Measurement Units:
34
7. TAKING CARE OF
YOUR ALADIN ONE
7.1

Technical information

Operating altitude:
With decompression – sea level to
approximately 4000m/13300ft.
Without decompression above approx.
4000m (13000ft):
mode (unlimited).
Max operating depth:
120m/394ft; resolution is 0.1m until 99.9m
and 1m at depth deeper than 100m.
Resolution in ft is always 1ft. Accuracy is
within 2% ±0.3m/1ft.
Decompression calculation range:
0.8m to 120m/3ft to 394ft
Maximum environment pressure:
13bar/189psi
Clock:
Quartz; time, date, dive time display up
to 199 minutes
Oxygen concentration:
Adjustable between 21% and 50%.
Operating temperature:
-10C to +50C/14F to 122F
Power supply:
CR2450 lithium battery
Life of the battery:
Estimated 2 years or 300 dives,
whichever comes first. Actual battery
life depends on the number of dives
per year, the length of each dive, the
water temperature and the usage of the
backlight.
7.2

Maintenance

The depth accuracy of your Aladin One
should be verified every 2 years and can be
done by an authorized SCUBAPRO dealer.
Aside from that, the Aladin One is virtually
maintenance-free. All you need to do is
rinse it carefully with fresh water after each
dive and change the battery when needed.
To avoid possible problems with your Aladin
One, the following recommendations will
help ensure years of trouble-free service:
automatic gauge
