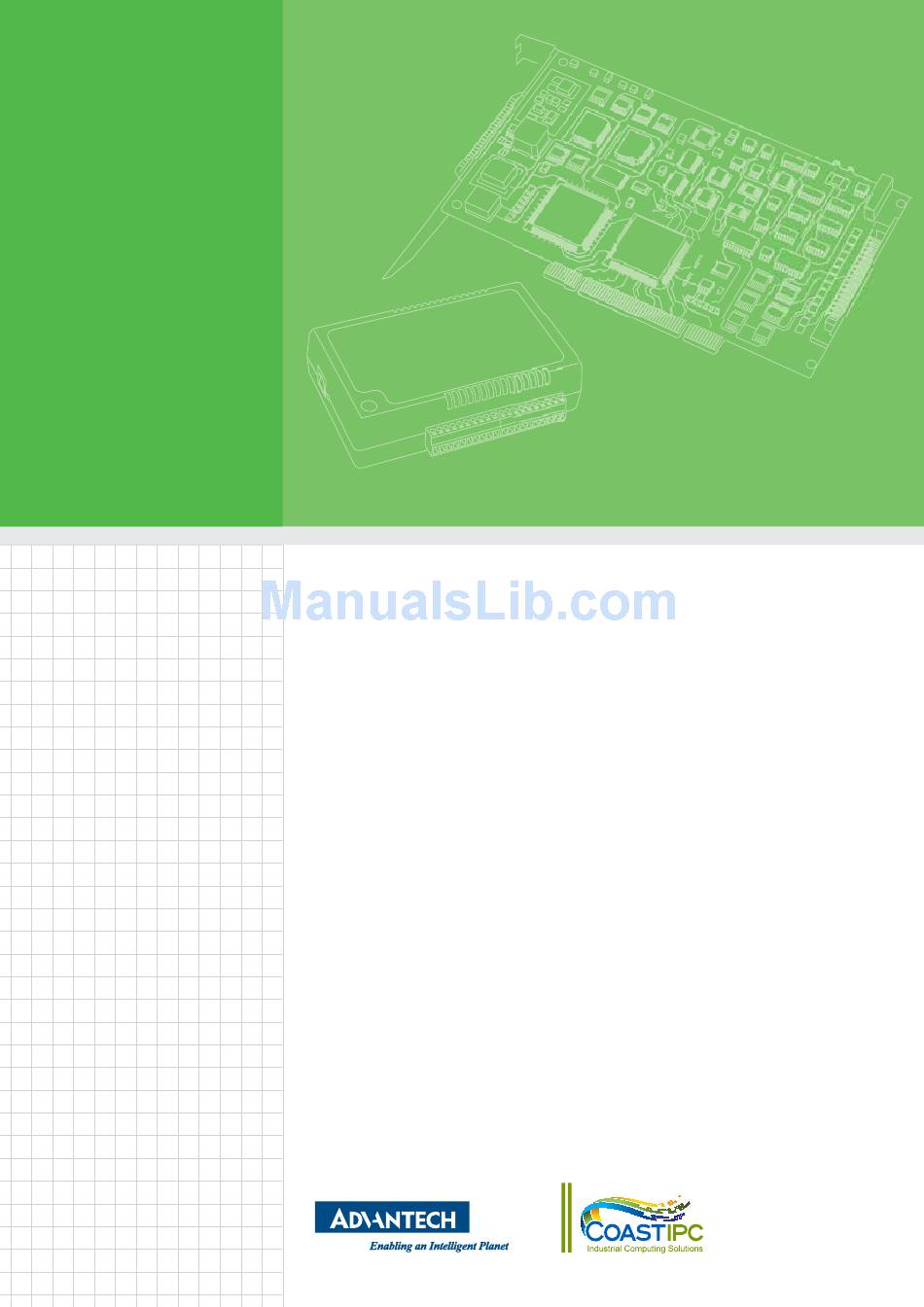

- Page 1 User Manual PCIE-1172/1174 Reference Manual CoastIPC .com 866-412-6278...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
-
Page 3: Table Of Contents
Initial Inspection ..................6 Hardware View..................6 Figure 2.1 PCIe-1172 Board Layout ..........6 PIN Assignments..................7 Figure 2.2 PCIe-1172/PCIe-1174 Pin Assignment ...... 7 Signal Connections ................... 8 Figure 2.3 Isolated Digital Input Connection........ 8 Figure 2.4 Isolated Digital Input Response Time......8 Figure 2.5 Isolated Digital Output Connection ...... - Page 4 PCIe-1172 User Manual...
-
Page 5: Chapter 1 Overview
Chapter Overview... -
Page 6: Introduction
Introduction The PCIe-1172/1174 series is a PCI Express® dual/quad channel frame grabber for two/four independent GigE Vision cameras, features with GoE (GigE Vision Offload Engine), PoE (Power over Ethernet) and ToE (Trigger over Ethernet) for high perfor- mance, robust and reliable machine vision applications. Unlike a conventional NIC (network interface controller) with GigE Vision protocol implemented in software and executed on the host CPU, the processor must spend more resources to handle the network traffic and incoming frames rather than the... -
Page 7: Ordering Information
Dimensions: (W x D) 185 x 110 mm (7.3'' x 3.9'') Ordering Information PCIe-1172: 2-port PCI Express Intelligent GigE Vision Frame Grabber PCIe-1174: 4-port PCI Express Intelligent GigE Vision Frame Grabber Unpacking Checklist Ensure that the following items are included in the package. PCIe-1172 or PCIe-1174 unit ... - Page 8 PCIe-1172 User Manual...
-
Page 9: Chapter 2 Hardware Configuration
Chapter Hardware Configuration... -
Page 10: Initial Inspection
Initial Inspection You should find the following items inside the shipping package: PCIe-1172 or PCIe-1174 unit 2P / B4P Cable (PCIe-1174 only) DB-15 Bracket (PCIe-1174 only) We carefully inspected the card mechanically and electrically before we shipped it. It should be free of marks and scratches and in perfect working order on receipt. -
Page 11: Pin Assignments
PIN Assignments PCIe-1172/PCIe-1174 Digital Input/Output: Figure 2.2 PCIe-1172/PCIe-1174 Pin Assignment Description of PIN Pin No. PCIE-1172 PCIE-1174 Isolated digital input for Port 1 Isolated digital input for Port 2 Common pin for isolated digital input Isolated digital input for Port 3... -
Page 12: Signal Connections
Signal Connections Isolated Digital Input: Figure 2.3 Isolated Digital Input Connection Figure 2.4 Isolated Digital Input Response Time Each isolated digital input channel can accept bi-directional voltage input under 30 VDC. In addition, all channels share the same common pin. Figure 2.4 shows how to connect an external input source to one of the card’s isolated input channels. - Page 13 Isolated Digital Output: Figure 2.5 Isolated Digital Output Connection Figure 2.6 Isolated Digital Output Response Time Each isolated output channel consists of a MOSFET, a poly-switch and a flywheel diode. Once an external voltage source (5 ~ 40 V ) is applied to the channel, the current will stream from the external source into the device.
-
Page 14: Hardware Installation
Hardware Installation Note! We strongly recommend that you install the software driver before you install the hardware into your system, since this will guarantee a smooth and trouble-free installation process. Turn off your PC's power supply whenever you install or remove the card or its cables. -
Page 15: Chapter 3 Driver Setup And Installation
Chapter Driver Setup and Installation... -
Page 16: Introduction
32-bit and 64-bit Windows device drivers are provided for the cards. 3.2.1 Windows XP/Vista/7 Driver Setup Follow the steps below for the PCIE1172/PCIE-1174 Windows 32-bit/64-bit driver installation. Visit the Advantech website, search for PCIE-1172, click the Manual/ Driver/ BIOS/ FAQ icon and download the Driver. -
Page 17: Chapter 4 Operation Theory
Chapter Operation Theory... -
Page 18: I/O Control
I/O Control 4.1.1 Digital Input There is one opto-isolated digital input for each Port, the digital input can act as the trigger start signal for the camera, and support debouncer and inverter features. The debouncer feature identifies the valid and invalid input signals via setting the debouncer value (the minimum period of time for the valid signal). -
Page 19: Camera Control
Camera control The PCIe-1172/1174 series provides two approaches for camera control. First, user can open CamNavi Viewer to control camera. In second approach, user can create customized application program with CamNavi SDK. 4.2.1 Acquisition Start and Stop The camera control procedure requires following major configuration: ... -
Page 20: Image Acquisition
PCIE-1172/PCIE-1174 is active, below is the operation procedures: Configure the camera in hardware trigger mode. -
Page 21: Toe
4.3.3 In ToE mode, the digital input pin of PCIE-1172/PCIE-1174 must be connected to the external trigger source, such as in-position sensor. The PCIE-1172/PCIE-1174 will send the image acquisition command via the Ethernet cable as soon as the digital input of PCIE-1172/PCIE-1174 is active, then the camera will begin the process of exposing and reading out a frame only, below is the operation procedures: Configure the camera in software trigger mode. - Page 22 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2016...
