Section 2
STORAGE CHARACTERISTICS
STORAGE MODULE CONTROL PANEL

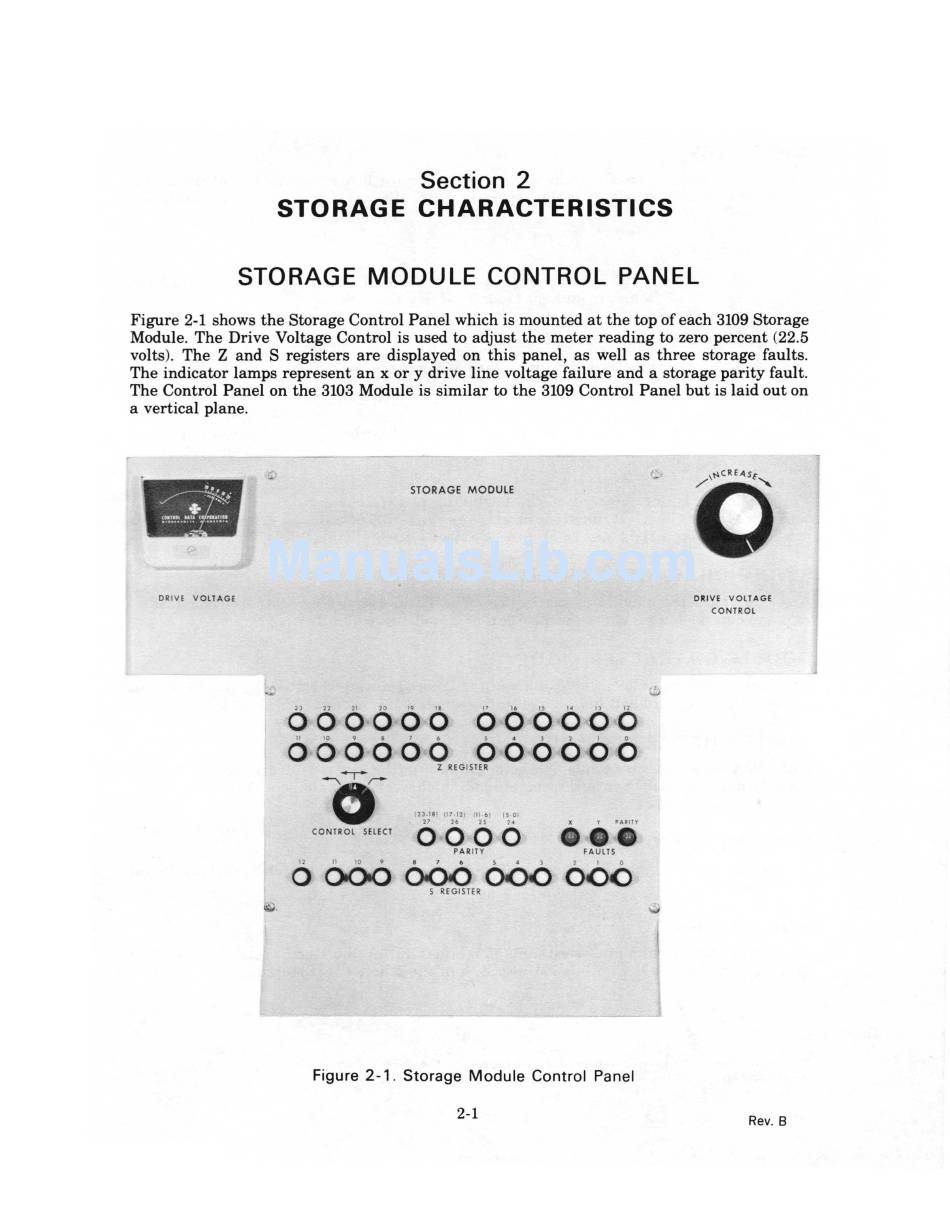

Figure 2-1 shows the Storage Control Panel which is mounted at the top of each 3109 Storage
Module. The Drive Voltage Control is used to adjust the meter reading to zero percent (22.5
volts). The Z and S registers are displayed on this panel, as well as three storage faults.
The indicator lamps represent an x or y drive line voltage failure and a storage parity fault.
The Control Panel on the 3103 Module is similar to the 3109 Control Panel but is laid out on
a vertical plane.
DRIVE
VOLTAGE
STORAGE MODULE
666666 666666
666666 666666
Z ReGISTER
123-18
. (1
712
1
1
)1
·
61
IS
0
1
27
20
25
14
Y
PARITY
CONTROL
SElECT
0000
PARITY
fAULTS
6
Q.6.6
006 606
6.
6 0
S
REGISTER
Figure 2-1. Storage Module Control Panel
2-1
DRIVE
VOLTAGE
CONTROL
Rev. 8
