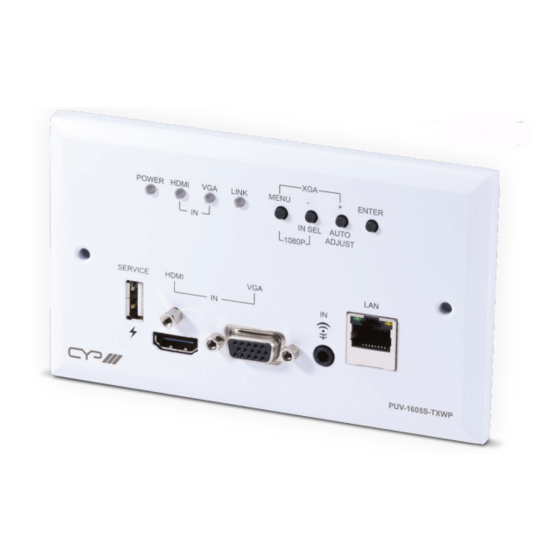

PUV-1605S-TXWP
HDMI/VGA with Scaling over Single CAT5e/6/7 HDBaseT™
Wallplate Transmitter (Full 5Play™ & Single LAN up to
100m, PoH
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUV-1605S-TXWP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP PUV-1605S-TXWP

Summary of Contents for CYP PUV-1605S-TXWP

  • Page 1 PUV-1605S-TXWP HDMI/VGA with Scaling over Single CAT5e/6/7 HDBaseT™ Wallplate Transmitter (Full 5Play™ & Single LAN up to 100m, PoH OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 OSD Menu ..........10 6.4 RS-232 Commands ........15 7.

  • Page 6: Introduction

    1. INTRODUCTION This 4K UHD Wallplate Scaler is an HDMI/VGA switch with audio embedding and scaled HDBaseT output. The wall plate is designed for use with UK two-gang sized enclosures. This Transmitter can send high definition uncompressed audio/video along with Ethernet over a single cable up to a distance of 100 metres at 1080p@60Hz.

  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS  HDMI source equipment such as a media player, video game console or set-top box.  HDMI receiving equipment such as an HDTV, monitor or audio amplifier.  The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly recommended.

  • Page 8: Operation Controls And Functions

    ADJUST 1080P SERVICE HDMI AUDIO PUV-1605S-TXWP POWER LED: This LED will illuminate to indicate the unit is on and receiving power. HDMI IN LED: This LED will illuminate when HDMI is the selected source. VGA IN LED: This LED will illuminate when VGA is the selected source.

  • Page 9: Rear Panel

    HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. VGA IN: Connect to VGA source equipment such as a PC or laptop. AUDIO IN: Connect to the stereo analogueue output of a device such as a CD player or PC for embedding into the HDBaseT output.

  • Page 10: Osd Menu

    6.3 OSD Menu LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 Video Video HDMI NATIVE Output 640×480@60 800×600@60 1024×768@60 1280×720@60 1280×768@60 1280×800@60 1280×1024@60 1360×768@60 1440×900@60 1400×1050@60 1600×1200@60 1680×1050@60 1920×1080@60 1920×1200@60RB 2048×1080@50 2048×1080@60 2560×1440@60RB 2560×1600@60RB 720×480p@60 720×576p@60 1280×720p@50 1280×720p@60 1920×1080p@24 1920×1080p@25 1920×1080p@30...
  • Page 11 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 Video Output 1920×1080p@50 1920×1080p@60 2560×1080p@50 2560×1080p@60 3840×2160p@24 3840×2169p@25 3840×2160p@30 4096×2160p@24 4096×2160p@25 4096×2160p@30 Full Aspect Best Fit Pan Scan Letterbox Under 2 Under 1 Follow In Overscan HDMI HDCP HDCP Support Off Refer to Source Refer to Display No Signal Colour Black...
  • Page 12 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 Video Auto Setup Auto Sync Off 30 Seconds 60 Seconds 3 Minutes 5 Minutes 10 Minutes Auto Switch PC Setup PC Auto Setup [Current Status] PC H Position 0 ~ 250 PC V Position 0 ~ 250 PC Phase 0 ~ 255...
  • Page 13 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 Picture Reset Picture Audio Audio Follow Video Line In Volume 0 ~ 100 (80) Audio Mute Reset Audio 0 ~ 60 (30) H Position 0 ~ 60 (30) V Position Timer 5 SEC 10 SEC 15 SEC 20 SEC...
  • Page 14 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 RS-232 Control Control Baudrate 4800 9600 19200 38400 57600 115200 1 Bit Control Stop Bits 2 Bit Control Data Bits 5 Bit 6 Bit 7 Bit 8 Bit Control Parity None Even Reset All Reset Information...

  • Page 15: Rs-232 Commands

    6.4 RS-232 Commands COMMAND DESCRIPTION PARAMETERS HELP  Show the full command list. ?  Show the full command list. GET FW VER  Show the unit’s firmware version. GET MODEL NAME  Show the unit’s model name. SET OUT A ROUTE N1  Available values for N1: Select the input source.
  • Page 16 COMMAND DESCRIPTION PARAMETERS GET IN TYPE LIST  List all available input types. SET OUT A MASK N1  Available values for N1: Blank the video output (video masking). [Blank video] [Enable video] GET OUT A MASK  Show the current video masking state.
  • Page 17 COMMAND DESCRIPTION PARAMETERS (Cont.) [1920×1080p@25] [1920×1080p@30] [1920×1080p@50] [1920×1080p@60] [2560×1080p@50] [2560×1080p@60] [3840×2160p@24] [3840×2169p@25] [3840×2160p@30] [4096×2160p@24] [4096×2160p@25] [4096×2160p@30] GET OUT A TIMIING  Show the scaler’s current output timing. GET OUT A SYNC STATUS  Show the current status of the connected display. GET OUT TIMING LIST ...
  • Page 18 COMMAND DESCRIPTION PARAMETERS SET OUT A SATURATION N1  Set the saturation of the scaled N1 = 0 ~ 60 [Saturation] output. GET OUT A SATURATION  Show the current saturation setting. SET OUT A HUE N1  N1 = 0 ~ 60 Set the hue of the scaled output.
  • Page 19 COMMAND DESCRIPTION PARAMETERS SET OUT A ASPECT RATIO N1  Set the aspect ratio of the scaled Available values for N1: output. [Overscan] [Full] [Best Fit] [Pan Scan] [Letterbox] [Under 2] [Under 1] [Follow In] GET OUT A ASPECT RATIO  Show the current output ratio of the scaled output.
  • Page 20 COMMAND DESCRIPTION PARAMETERS SET OUT A G GAIN N1  Set the green gain level of the N1 = 0 ~ 1023 [Green Gain] scaled output. GET OUT A G GAIN  Show the current red gain level. SET OUT A B GAIN N1  N1 = 0 ~ 1023 [Blue Gain] Set the blue gain level of the scaled output.
  • Page 21 COMMAND DESCRIPTION PARAMETERS SET AUDIO OUT A ROUTE N1  Select the audio source. Available values for N1: [Follow Video] [Analogue Audio] GET AUDIO OUT A ROUTE  Show the currently selected audio source. GET AUDIO IN TYPE LIST  List all available audio sources.
  • Page 22 COMMAND DESCRIPTION PARAMETERS GET OUT A OSD TIMEOUT  Show the current OSD timeout length. SET OUT A OSD INFO DISPLAY N1  Available values for N1: Set the OSD Information Display timeout length. [Always Off ] [Always On] [5 Seconds] [10 Seconds] GET OUT A OSD INFO DISPLAY ...
  • Page 23 COMMAND DESCRIPTION PARAMETERS SET IN 1 HDCP MODE N1  Set the HDCP mode for the HDMI Available values for N1: input. [Disable HDCP] [Follow Source] [Follow Display] GET IN 1 HDCP MODE  Show the current HDCP mode for the HDMI input.
  • Page 24 COMMAND DESCRIPTION PARAMETERS SET UART 1 DATA BITS N1  Set the number of data bits for RS- Available values for N1: 232. [5 Bits] [6 Bits] [7 Bits] [8 Bits] GET UART 1 DATA BITS  Show the current RS-232 data bits setting.
  • Page 25 COMMAND DESCRIPTION PARAMETERS SET OUT A AUTOMATION N1 EVENT N2  Set the event that will activate N1 = 1 ~ 8 [Slot Number] automated action slot N1. Available values for N2: [All Signal Loss] [Live Source Plug In] [Signal Loss] [Signal Lock] GET OUT A AUTOMATION N1 EVENT ...
  • Page 26 COMMAND DESCRIPTION PARAMETERS GET IN 1 EDID  Show the currently selected EDID source for the HDMI input. GET IN EDID LIST  List all available EDID sources. Note: Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive.

  • Page 27: Connection Diagram

    ENTER IN SEL IN SEL AUTO AUTO ADJUST ADJUST 1080P 1080P UHD WALLPLATE SCALER SERVICE SERVICE HDMI HDMI AUDIO PUV-1605S-TXWP Cat.5e/6/7 Wireless Cable Router Power Supply BLASTER HDMI OUT DC 48V EXTENDER RS-232 OUT POWER STD UPDATE LINK RS-232 RS-232 Equipped...

  • Page 28: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340Hz/10.2Gbps Input Ports 1×HDMI 1×VGA 1×3.5mm (Stereo Audio) Output Port 1×Cat.5e/6/7 Pass-through Port 1×LAN [RJ-45] Power Supply 12V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge) Dimensions 147mm×87.5mm×41.5mm (W×H×D)

  • Page 29: Video Specifications

    8.2 Video Specifications Input Output HDMI via Supported PC Resolutions (Hz) HDMI HDBaseT 640×480 60, 72, 75, 85   720×400   800×600 56, 60, 72, 75, 85   1024×768 60, 70, 75, 85   1152×864  ...

  • Page 30: Cable Specifications

    Input Output HDMI via Supported TV Resolutions (Hz) HDMI HDBaseT 720×480i 59.94, 60  720×576i  720×480p 59.94, 60   720×576p   1280×720p 50, 59.94, 60    1920×1080i 50, 59.94, 60 50/60  1920×1080p 50, 59.94, 60 ...

  • Page 31: Acronyms

    Cat.7 Full HD Video (1080p) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock Ultra HD Video (4K) - 4K@24/25/30Hz & 4K@50/60Hz (YUV 4:2:0), 8-bit colour - Data rates higher than 5.3Gbps or above 225MHz TMDS clock 9.
  • Page 32 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
