• Enable or disable hardware CRC (enabled by default). If it is disabled, a software version is used.
• Enable or disable LED signals (enabled by default).
• Enable or disable hardware Test mode (disabled by default), to check the hardware.
• Enable or disable additional PDOs. The PDOs must be compliant with the external power board connected.
You can define the current capability and the port for each PDO.
• Configure a logic table to determine the microcontroller pin combinations required to switch between
different power profiles.
UM2451 - Rev 1

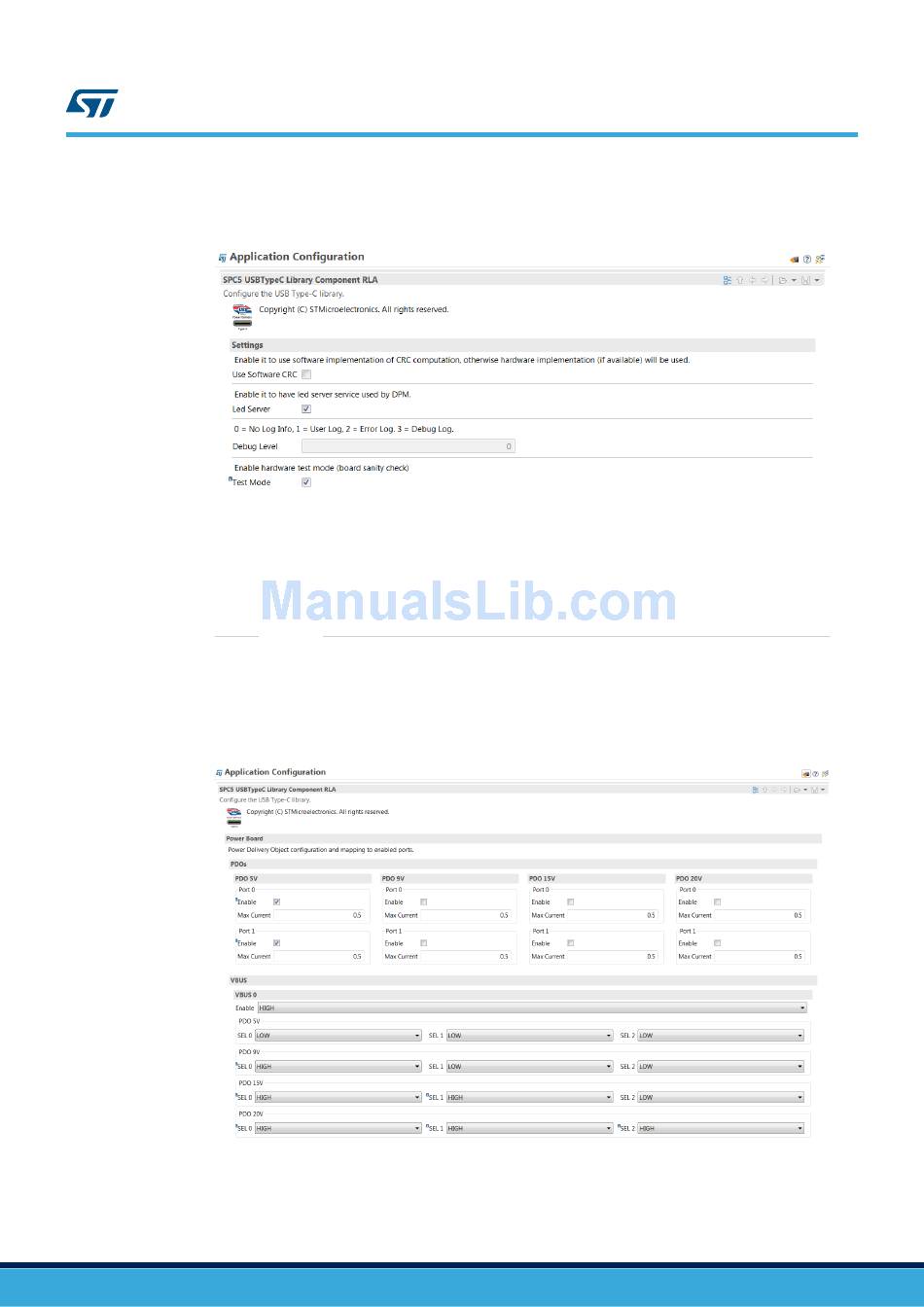

Figure 12. Hardware CRC, LED signals, and Test mode toggles
Figure 13. PDO togles and output voltage selection table settings
Configuration of the USB-PD library through SPC5-Studio
