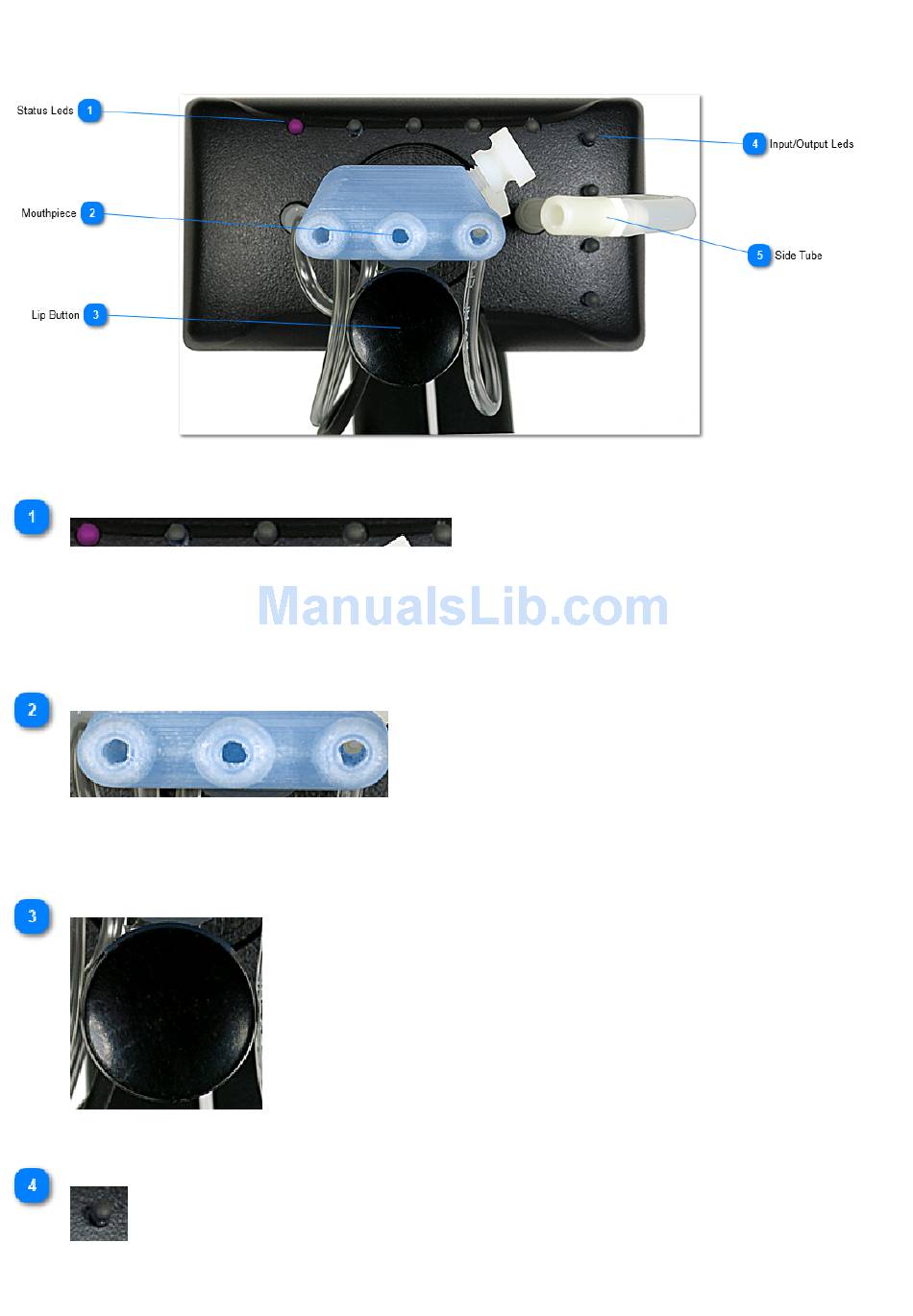

Front

Status Leds
Five Blue/Red Status LEDs used to indicate:
◦ Sensor activation
◦ Active configuration profile
◦ Boot process and self test
◦ USB connection status
Mouthpiece
Mouthpiece attached to Joystick
◦ Three Sip/Puff tubes. Analog pressure sensors.
◦ XY motion
Lip Button
Lip Position Sensor. Adjustable sensitivity and position.
Input/Output Leds
Four Green Status Leds:
8
