Lip Sensor Jack with Two Switches

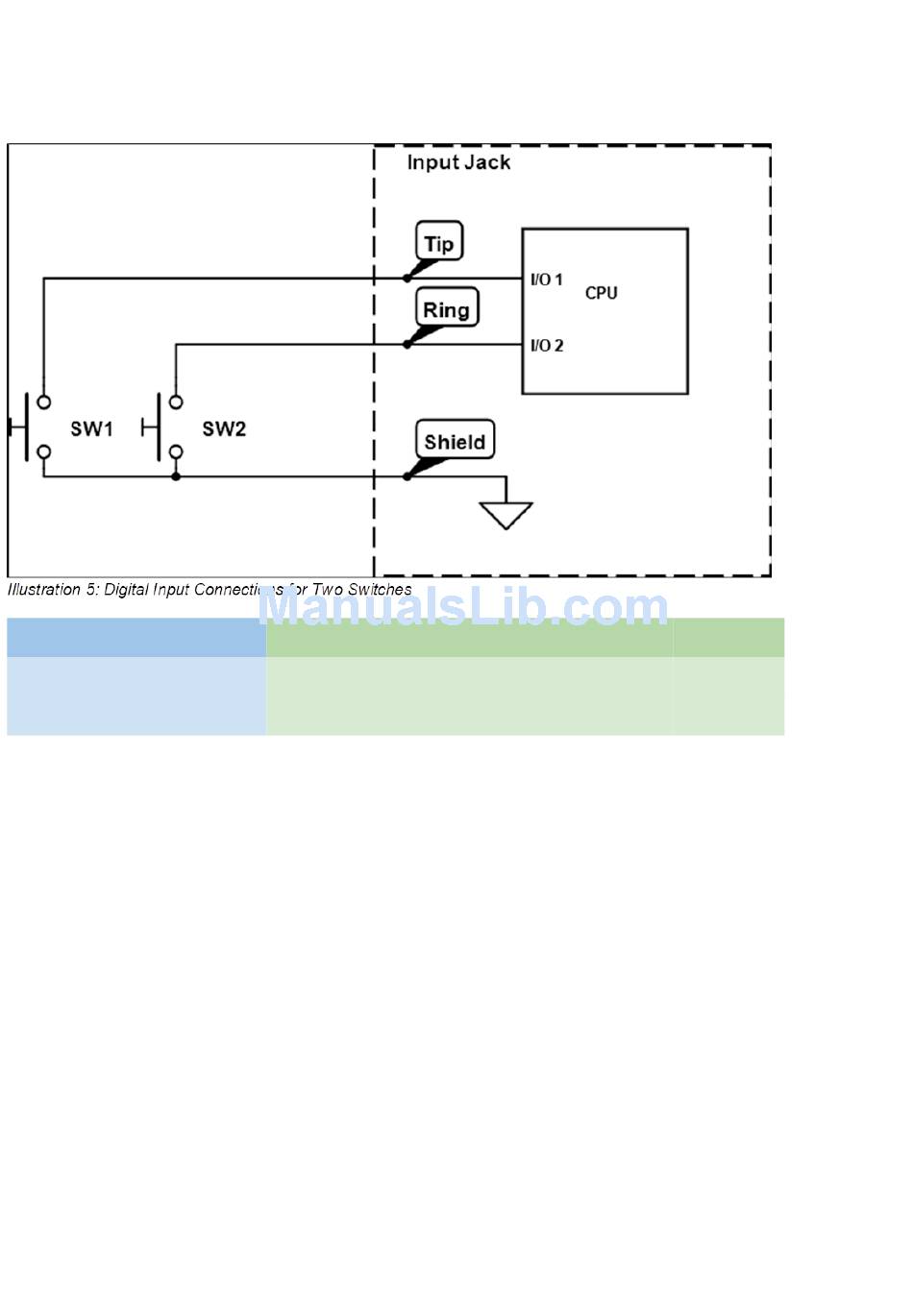

The Lip jack on the back of the Quadstick is a 3mm stereo connector with the two input circuits (Tip & Ring) and
Shield (or Ground). Two switches may be connected using the following circuit.
Input Name
digital_in_5
digital_in_6
Table 4: External Digital Inputs 5 & 6
When using two Switches in this manner, the lip sensor is inoperative.
Description
Input Jack - Tip to Shield (SW1)
Input Jack - Ring to Shield (SW2)
26
Delay
instant
instant
